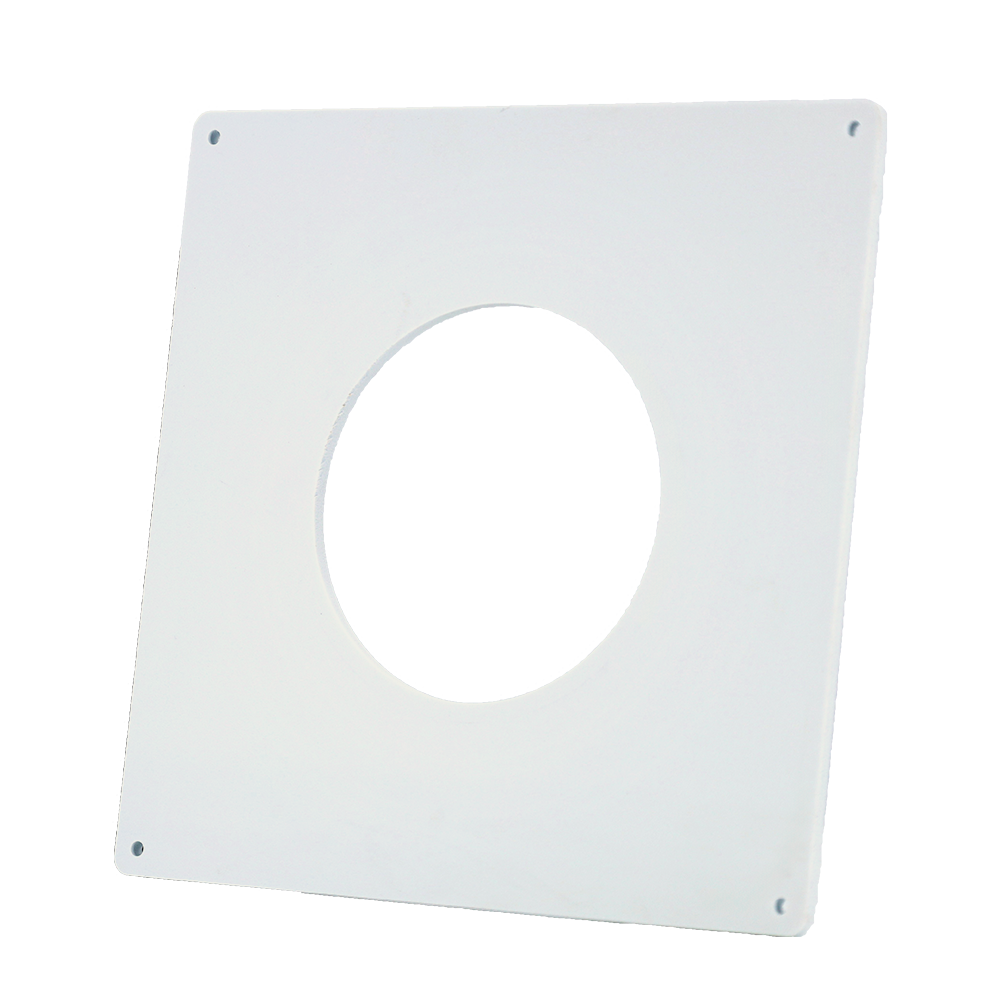

Universal cover plate 200×200

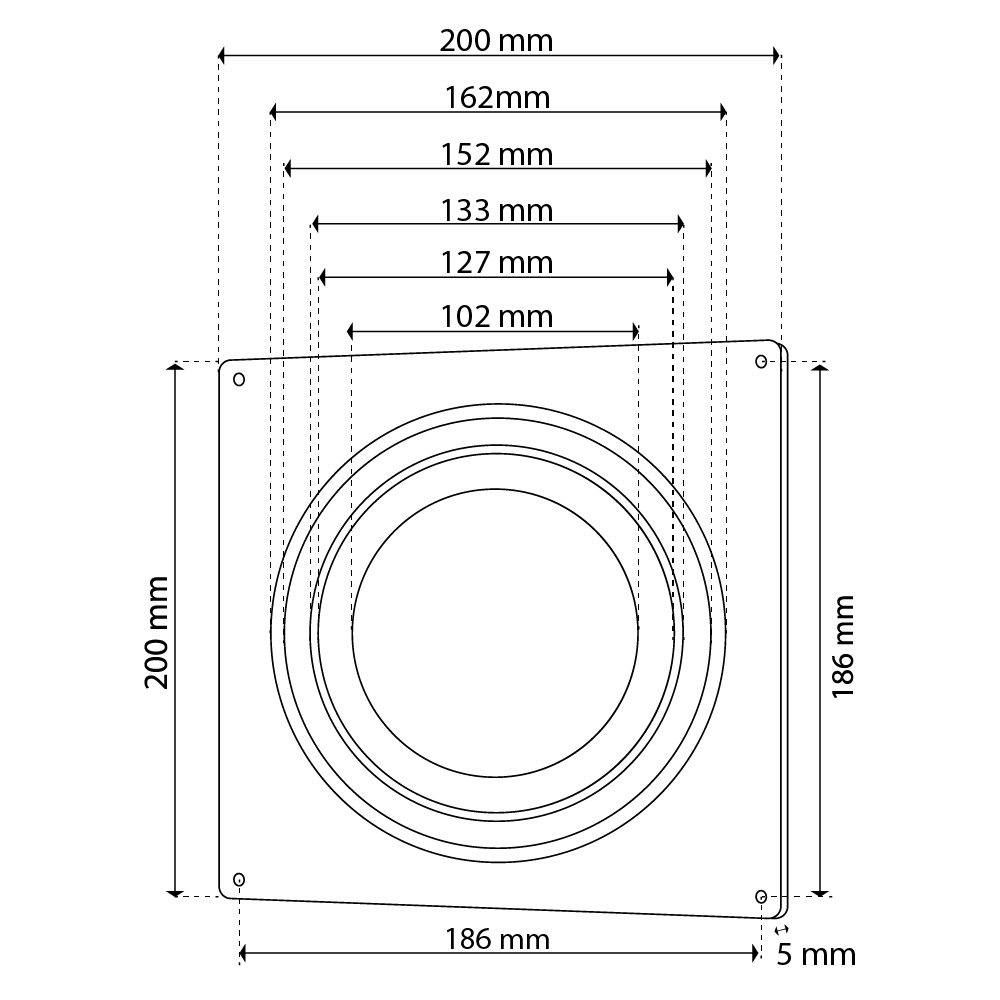

Universal mounting plate for Ø102 – Ø127 – Ø133 – Ø152 – Ø162

Used when the fan does not cover the duct opening, e.g. when installing a fan over an old duct for a flap valve.

The cover plate comes as standard with a Ø102 mm hole, so all Ø100 mm bathroom fans can be mounted on the cover plate.

Easily adapted to a larger pipe dimension (max Ø162) by cutting with a knife in the pre-prepared cutting grooves.

The cover plate is mounted with the cutting grooves facing the ceiling/wall for a neat finish.

Made in matte white foamed PVC
