Inlet valve type DKI - Ø100 mm
Supply air valve type DKI - Ø100 mm design ensures that the supply air is directed along the ceiling and not directly into the room, minimising draft problems that can occur during ventilation. The bayonet mount facilitates installation and subsequent cleaning.
Supply air valve where the design ensures that the supply air is directed along the ceiling and not directly into the room, minimising drafts that can occur during ventilation. The bayonet mount facilitates installation and subsequent cleaning.
The valve includes a frame for easy mounting in the ventilation pipe.
The airflow can be easily adjusted by opening or closing the valve head. The setting can be saved by locking the valve head on the internal threaded rod.
Made of sheet steel with a white lacquer finish.
Type | Item number | DB number |
Ø100 mm | 112250 | 5813249 |

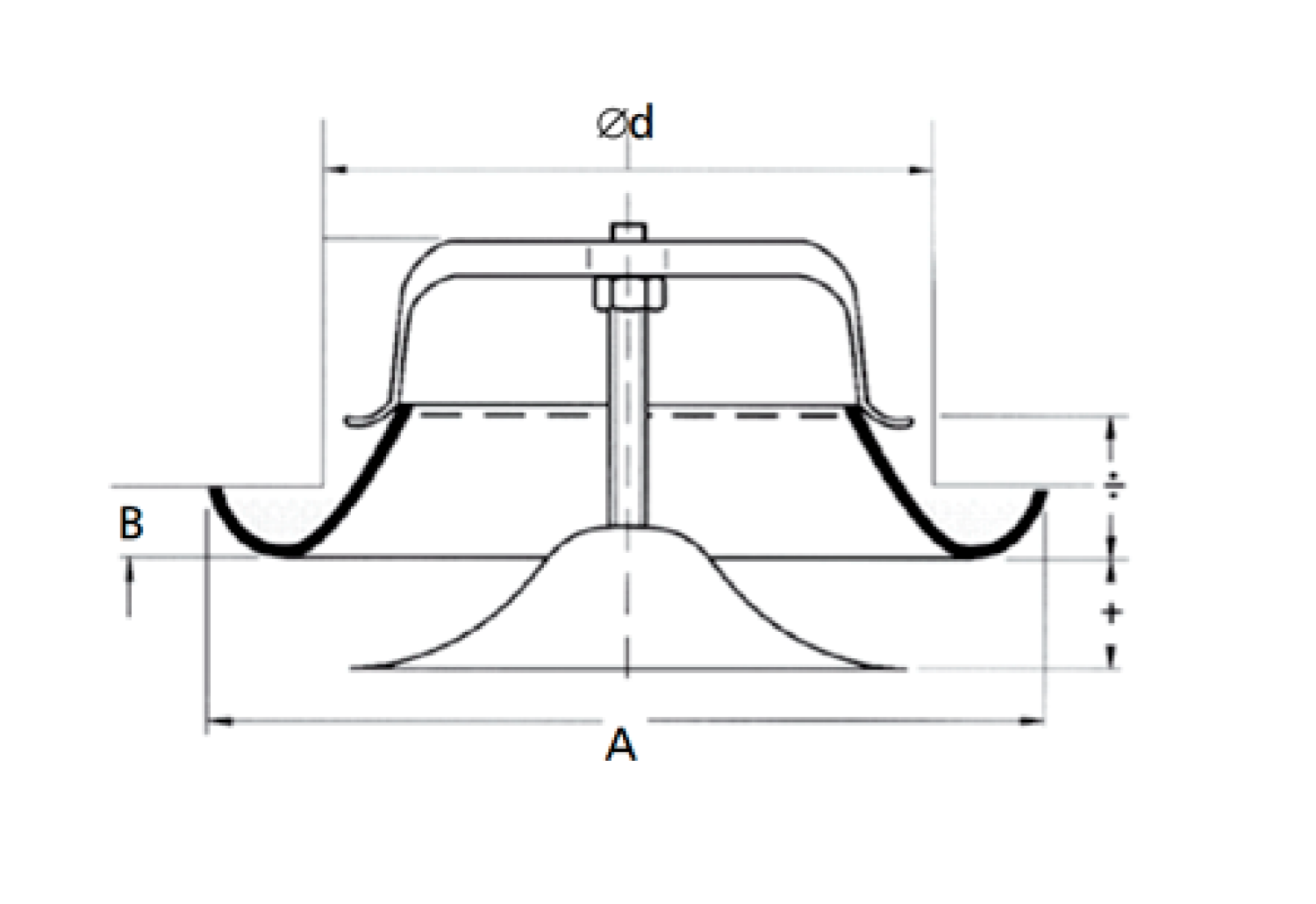

Type | A | B | Weight |
Ø100 mm | 137 mm | 12 mm | 0.19kg |
