DUKA One differences
Find the model that fits your ventilation needs.
Create a healthy indoor climate around the clock with DUKA One.
DUKA One S6DUKA One S6 Wi-Fi
Inner screen
Fully adjustable comfort screen with adjustable airflow direction to minimise drafts and provide greater freedom in positioning the unit.
Build-up in pipework
Assembled block with motor and ceramic core. The motor is located on the outside of the pipework. For extra space in the pipework, the included silencing mat can be placed on the inside.
Ideal for
Sleeping and living areas, as it is a silent model with comfort ventilation.
Steering
Can be operated via the buttons on the inside and via the included remote control
The Wi-Fi model can also be controlled via app.
Minimum wall thickness
Requires a minimum wall thickness of 270 mm
Specifications
Warranty: 3 years
Consumption: down to 1.3 W
Sound level: down to 27 dB
Recovery: Up to 94 %
DUKA One Pro 50 SDUKA One Pro 50 S Wi-Fi
Inner screen
Dual Hood with 360-degree airflow around the inner screen as standard.
Directional blowing option where the lower part of the screen is pressed in and the air is directed upwards, minimising any drafts.
Build-up in pipework
Separate motor and separate core. Motor is placed towards the inner side. For extra space in the pipework, the supplied silencing mat can be placed on the inside.
Ideal for
Basement rooms as it can be placed close to the ceiling. Can also be used in bedrooms and living rooms.
Steering
Can be operated via the buttons on the inside and via the included remote control
The Wi-Fi model can also be controlled via app.
Minimum wall thickness
Requires a minimum wall thickness of 300 mm
Models in the series
DUKA One Pro 50 S + DUKA One Pro 50 S Black Edition
DUKA One Pro 50 S Wi-Fi + DUKA One Pro 50 S Wi-Fi Black Edition
Specifications
Warranty: 3 years
Consumption: down to 1.2 W
Sound level: down to 30 dB
Recovery: Up to 90 %

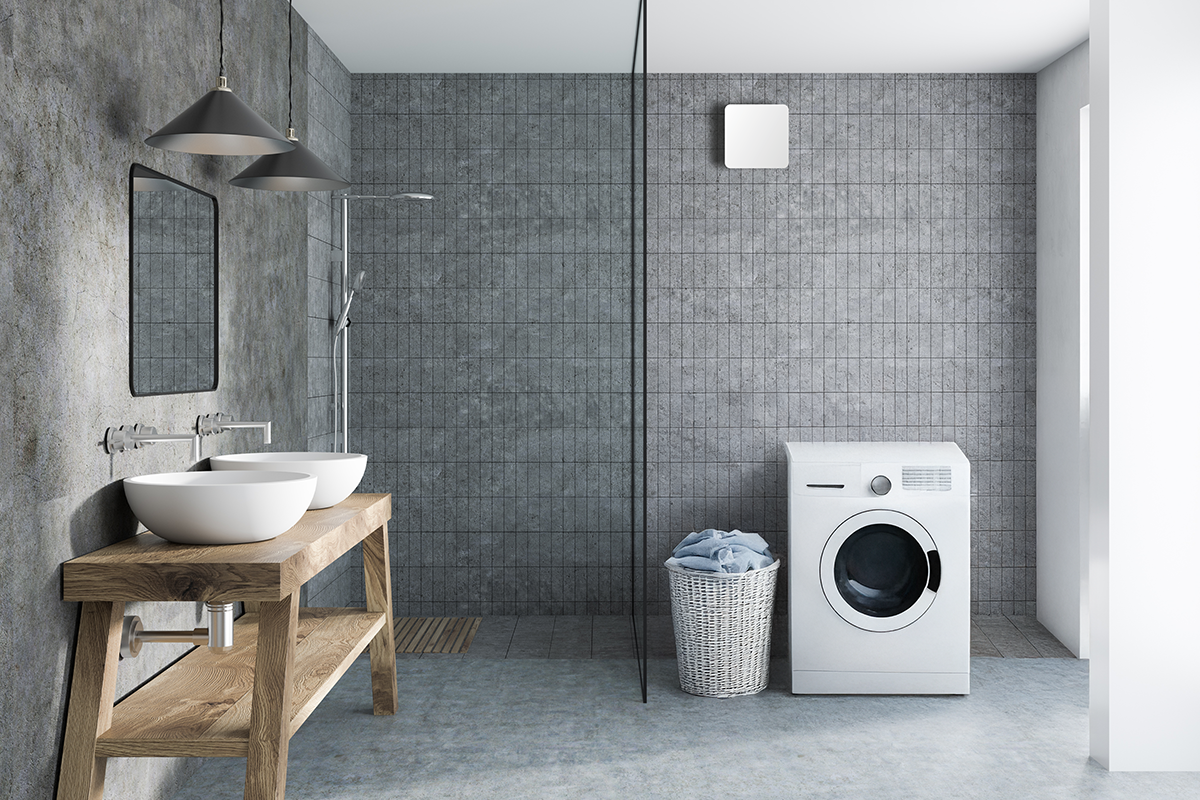

DUKA One S6BFor bathrooms and utility rooms
Inner screen
Dual Hood with 360-degree airflow around the inner screen as standard.
Directional blowing option where the lower part of the screen is pressed in and the air is directed upwards, minimising any drafts.
Build-up in pipework
Assembled block with motor and ceramic core. The motor is located on the outside of the pipework. For extra space in the pipework, the included silencing mat can be placed on the inside.
Ideal for
Toilet, shower and utility room. Specially designed not to spread moisture from a wet room to other dry rooms.
Steering
Can be operated via the buttons on the inside and via the included remote control
Minimum wall thickness
Requires a minimum wall thickness of 270 mm
Models in the series
Specifications
Warranty: 3 years
Consumption: down to 1.2 W
Sound level: down to 29 dB
Recovery: Up to 93 %
DUKA One S4DUKA One S4 Wi-Fi
Inner screen
Fully adjustable comfort screen with adjustable airflow direction to minimise drafts and provide greater freedom in positioning the unit.
Build-up in pipework
Assembled block with motor and ceramic core. For extra space in the pipework, the included silencing mat can be placed on the inside.
Ideal for
Holiday homes, annexes, allotments and similar with thin walls.
Can also be used to upgrade a Ø105 mm fresh air valve or flap valve to a ventilation solution with heat recovery.
Steering
Can be operated via the buttons on the inside and via the included remote control
The Wi-Fi model can also be controlled via app.
Minimum wall thickness
Requires a minimum wall thickness of 165 mm
Specifications
Warranty: 3 years
Consumption: down to 1.2 W
Sound level: down to 27 dB
Recovery: Up to 81 %
DUKA One Pro 25 SDUKA One Pro 25 S Wi-Fi
Inner screen
Dual Hood with 360-degree airflow around the inner screen as standard.
Directional blowing option where the lower part of the screen is pressed in and the air is directed upwards, minimising any drafts.
Build-up in pipework
Assembled block with motor and ceramic core. For extra space in the pipework, the included silencing mat can be placed on the inside.
Ideal for
Holiday homes, annexes, allotments and similar with thin walls.
Can also be used to upgrade a Ø105 mm fresh air valve or flap valve to a ventilation solution with heat recovery.
Steering
Can be operated via the buttons on the inside and via the included remote control
The Wi-Fi model can also be controlled via app.
Minimum wall thickness
Requires a minimum wall thickness of 165 mm
Specifications
Warranty: 3 years
Consumption: down to 1.4 W
Sound level: down to 28 dB
Recovery: Up to 81 %
DUKA One Pro 25 BFor bathrooms and utility rooms
Inner screen
Dual Hood with 360-degree airflow around the inner screen as standard.
Directional blowing option where the lower part of the screen is pressed in and the air is directed upwards, minimising any drafts.
Build-up in pipework
Assembled block with motor and ceramic core. For extra space in the pipework, the included silencing mat can be placed on the inside.
Ideal for
Toilets, showers and showers in holiday homes, annexes, allotments etc. with thin walls.
Can also be used to upgrade a Ø105 mm fresh air valve or flap valve to a ventilation solution with heat recovery.
Steering
Can be operated via the buttons on the inside and via the included remote control
Minimum wall thickness
Requires a minimum wall thickness of 165 mm
Models in the series
Specifications
Warranty: 3 years
Consumption: down to 1.2 W
Sound level: down to 26 dB
Recovery: Up to 81 %
DUKA One D6
Inner screen
Comfort screen where the supply air is blown upwards, minimising drafts.
Build-up in pipework
Assembled block with motor and ceramic core. The motor is located on the outside of the pipework. For extra space in the pipework, the included silencing mat can be placed on the inside.
Ideal for
Sleeping and living areas. Also great for small rental homes as controls can be mounted in easily accessible locations.
Steering
Operated on the supplied control panel.
Two devices can be connected to one control panel.
Minimum wall thickness
Requires a minimum wall thickness of 270 mm
Models in the series
Specifications
Warranty: 3 years
Consumption: down to 1.95 W
Sound level: down to 29 dB
Recovery: Up to 90 %

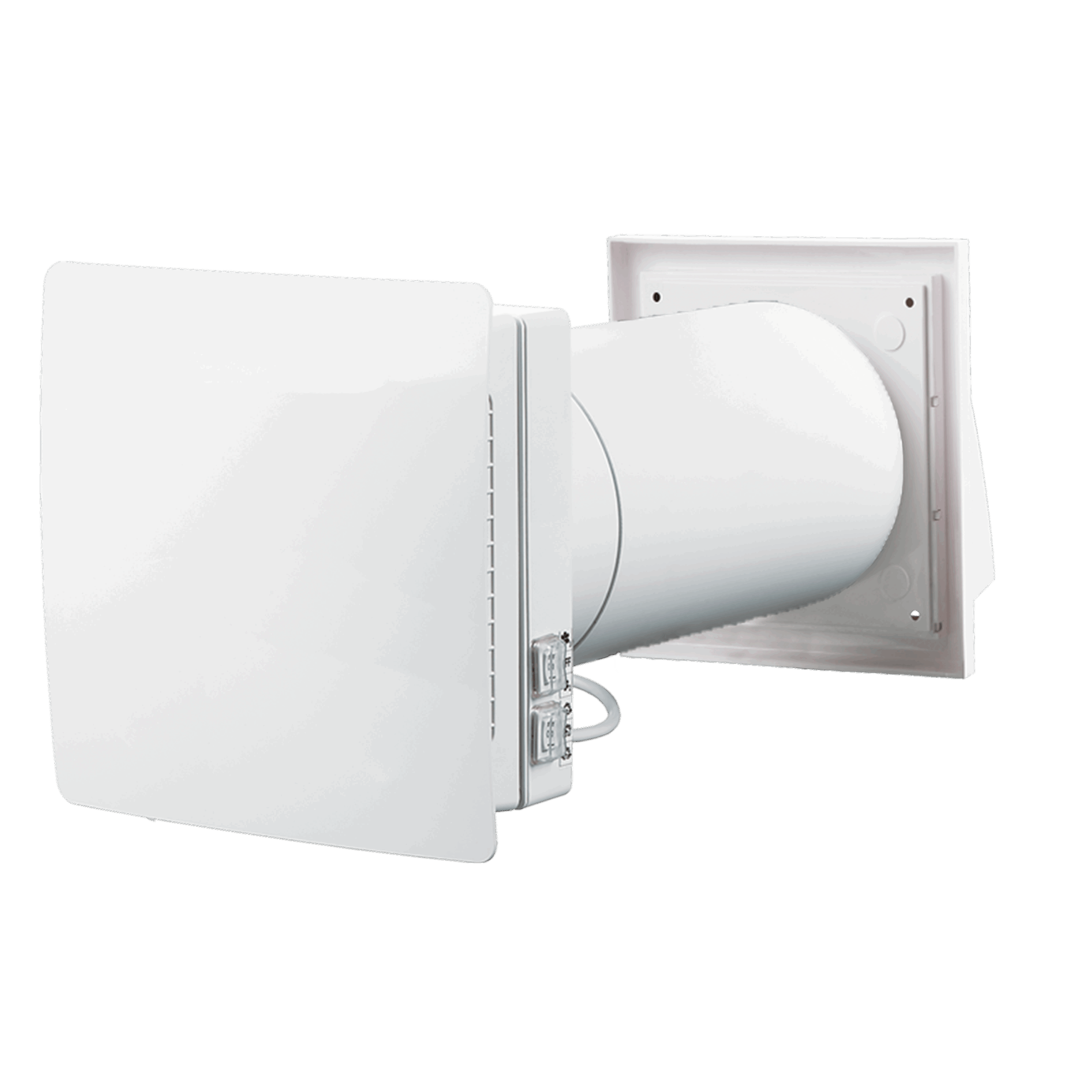

DUKA One C6
Inner screen
Screen with 360-degree air intake and exhaust.
Build-up in pipework
The motor is placed on the back of the inner screen. Separate ceramic core is placed in the pipework.
Ideal for
Storage rooms, basements and garages
Steering
Can be operated via the buttons on the inside and via the included remote control
Minimum wall thickness
Requires a minimum wall thickness of 290 mm
Models in the series
Specifications
Warranty: 3 years
Consumption: down to 2.0 W
Sound level: down to 30 dB
Recovery: Up to 84 %
DUKA One C4
Inner screen
Screen with 360-degree air intake and exhaust.
Build-up in pipework
The motor is placed on the back of the inner screen. Separate ceramic core is placed in the pipework.
Ideal for
Small storage rooms in e.g. basements where an economical solution is required.
Can also be used to upgrade a Ø105 mm fresh air valve or flap valve to a ventilation solution with heat recovery.
Steering
Controlled on the included remote control.
Minimum wall thickness
Requires a minimum wall thickness of 300 mm
Models in the series
Specifications
Warranty: 3 years
Consumption: down to 2.5 W
Sound level: down to 33 dB
Recovery: Up to 80 %
Where do the devices fit best?
The devices with a Ø160 channel dimension are recommended here as they are the quietest devices. These are the DUKA One S6, S6 Wi-Fi, Pro 50 S, Pro 50 S Wi-Fi and the D6 devices.
The DUKA One S4 / S4 Wi-Fi and Pro 25 S / Pro 25 S Wi-Fi can also be used in sleeping and living areas.

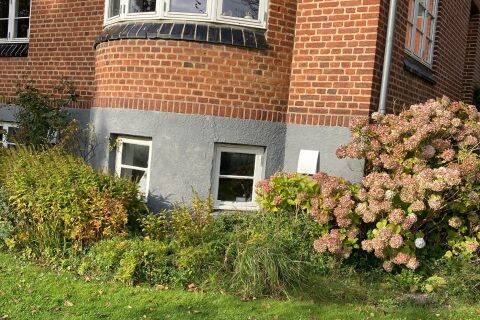

For basement rooms, DUKA One S6, S6 Wi-Fi, Pro 50 S, Pro 50 S Wi-Fi and D6 can be used. In basement rooms where there is a telescopic valve or 150×150 mm fresh air valve, this can be upgraded with a Ø100 unit such as DUKA One S4 Plus, DUKA One S4 Plus Wi-Fi, DUKA One Pro 25 S, DUKA One Pro 25 S Wi-Fi or DUKA One C4.
Here's what you need to do DUKA One S6B Used if it is Ø160
DUKA One Pro 25 B If it is Ø100, or an upgrade of existing 150×150 hole in the facade.
DUKA One are one-room ventilation solutions and one Ø160 mm unit covers up to 27 square metres for ventilation improvements in existing homes. We recommend one unit per room and more if the room is larger than 27 square metres. Note: For new builds, where there are requirements according to the building regulations, see the data sheets for the individual products here.
The DUKA One models with a Ø100 mm pipe diameter can handle a room of up to 15 square metres with ventilation improvements. We recommend one unit per room and more if the room is larger than 15 square metres.
The DUKA One runs in a continuous circular process where hot used air is sucked out of the room for 70 seconds. As it passes through the exchanger, the heat is stored in the ceramic exchanger and recycled. The unit then changes direction to fresh air supply, where fresh air from outside is blown through the exchanger and preheated via the exchanger. For 70 seconds, the heat from the exchanger is transferred to the supply air, after which the unit changes direction again.
If there are several devices in a room, they can be connected to work together as two or more devices. They can be connected by cable and Wi-Fi devices can be connected wirelessly.
If one unit is fitted, it will create a small over- or underpressure for 70 seconds. However, the over- or underpressure will be so low that it is not really significant. If multiple units are installed, it can be set via the DIP switches whether a unit starts blowing air in or blowing air out, so unit 1 blows air in while unit 2 blows air out to maintain an even pressure.
More questions about DUKA One?
Read more about each product on their product page or take a look at our FAQ page.
