Pro 35 TH

Pro 35 TH is a larger version of the well-known Pro 30 fan. Pro 35 TH also has a silent motor, designed for larger bathrooms and other rooms in need of increased ventilation. Pro 35 TH has a capacity up to 315 m3/h. This model has two different speed settings. Despite its high performance, power consumption is very low. The fan is equipped with ball bearings, which ensures a long service life, and the fan has a 5-year warranty.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.

Humidity and time control
In addition to humidity and time control, this model also has 2 speeds and can be set to run continuously. The humidity control can be set between 60-90% RH and the run-on time between 2-30 min.

Here is a brief overview of the different options PRO 35 TH has:

Mode 1 (one speed)
When the fan starts, it runs at step 1 speed.

Mode 2 (one speed)
When the fan starts, it runs at step 2 speed.

Mode 3 (two speeds)
The fan runs constantly on stage 1. When the switch is activated or the humidity increases, the fan moves up to stage 2.

Mode 4 (two speeds)
When the switch is activated, the fan starts on stage 1. When the humidity rises, it runs on stage 2.

Mode 5 (two speeds)
When the switch is activated, the fan starts on stage 1, if the humidity rises it goes up to stage 2, but if the switch is turned off the fan goes down to stage 1 until the humidity is below the set level.

If the switch is not switched on and the humidity rises, the fan will start on step 1 until the humidity is below the set level. But if the switch is on and the humidity is still high, the fan will run on stage 2 until the switch is turned off - then it will run on stage 1 until the humidity is below the set level.

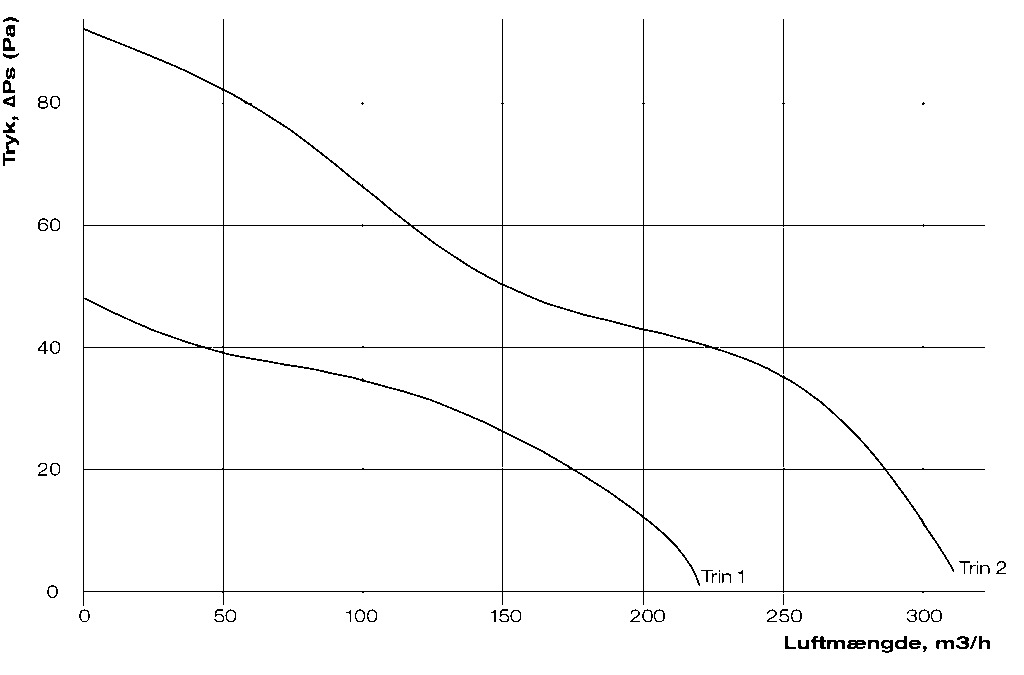

Specifications
