Condensation sleeve type 213
Condensation sleeve type 213 ensures a tight connection between exhaust pipe and ceiling valve and prevents condensation damage to the ceiling tile.
Ensures a tight joint between exhaust pipe and ceiling valve and prevents condensation damage to the ceiling tile. The click system means installation of valves without screws and allows valve removal for cleaning.
Made of black plastic.
Fits flap valve type 113.
Type | Item number | DB number | VVS number |
Condensation sleeve type 213 | 111220 | 2428704 | 353782015 |

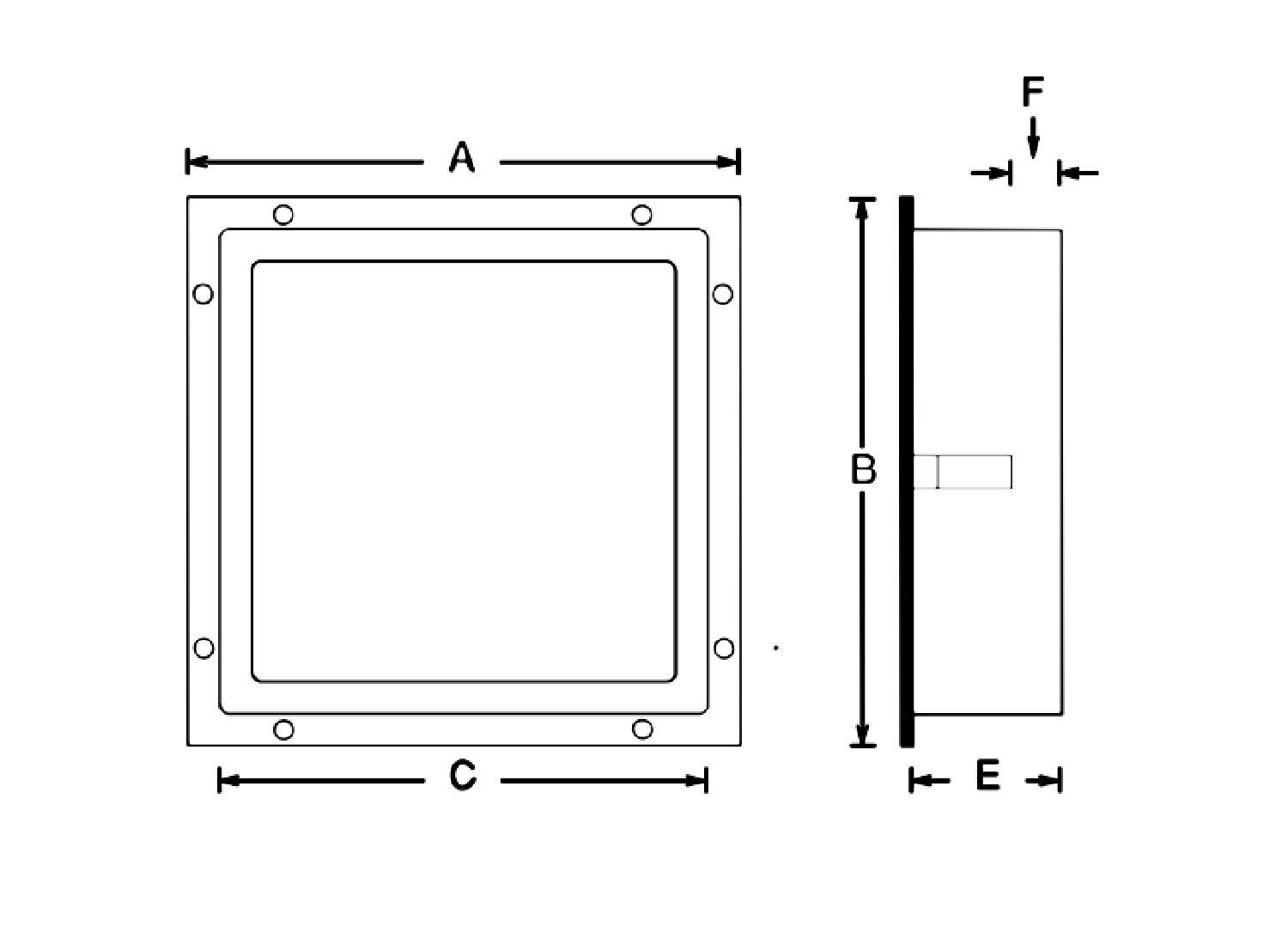

Type | Goal | A | B | C | D | E | F |
Condensation sleeve type 213 | 150 x 150 mm | 170 mm | 170 mm | 155 mm | 155 mm | 48 mm | 17 mm |
