Lamella valve type 70/10C - Brick red
Used for fans, cooker hoods and tumble dryers.

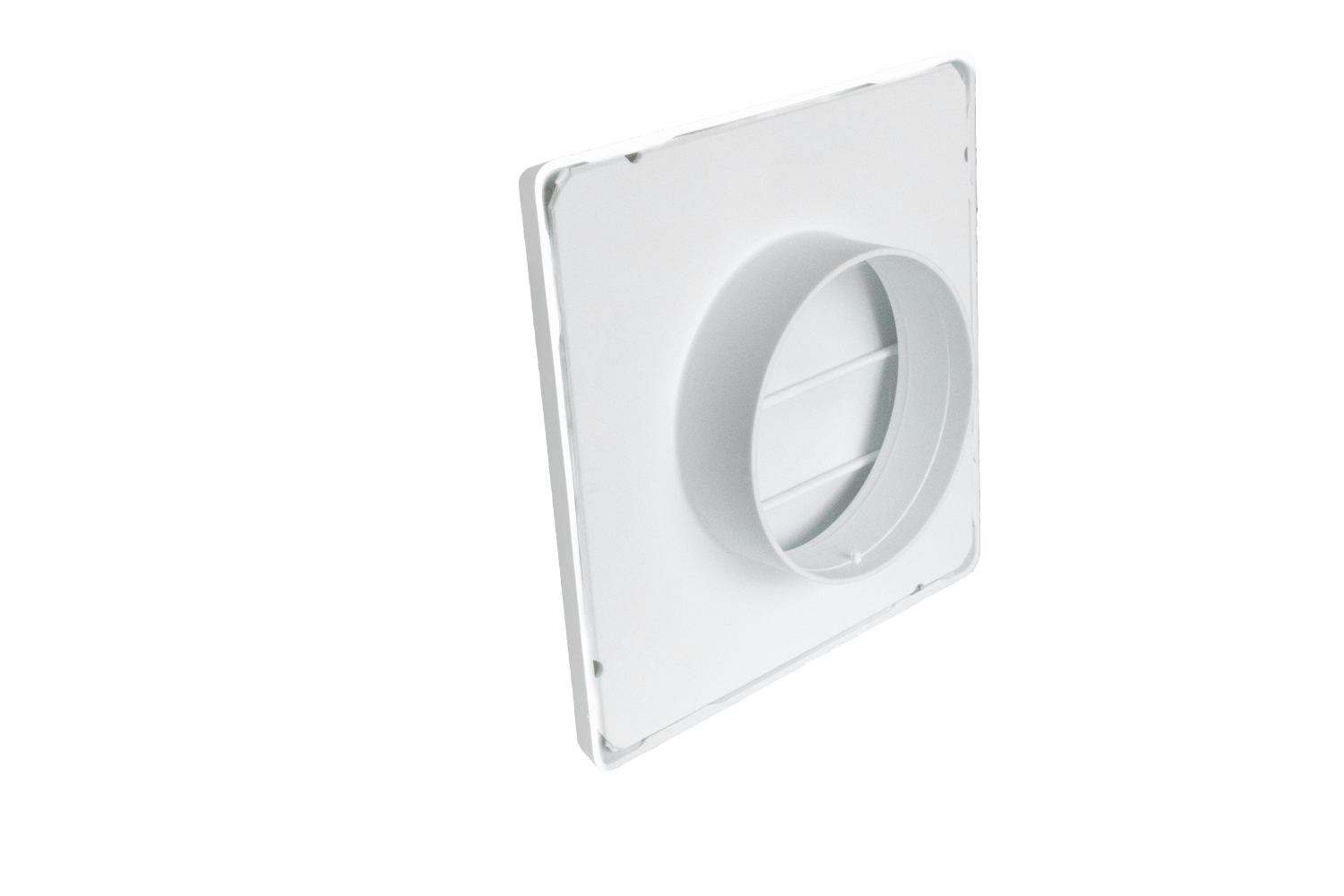

Louver valve type 70/10C is a flat model for wall mounting. The louvre valve can be used for exhaust air from fans, hoods and tumble dryers, for example, where the loose louvres open up the internal airflow while minimising wind disturbance from the outside.
Fits together with Ø100 mm pipes.
Available in colours: white, red and grey, so they can blend in naturally with many types of houses.
Type | Item number | DB number |
70/10C | 806609 | 3645710 |

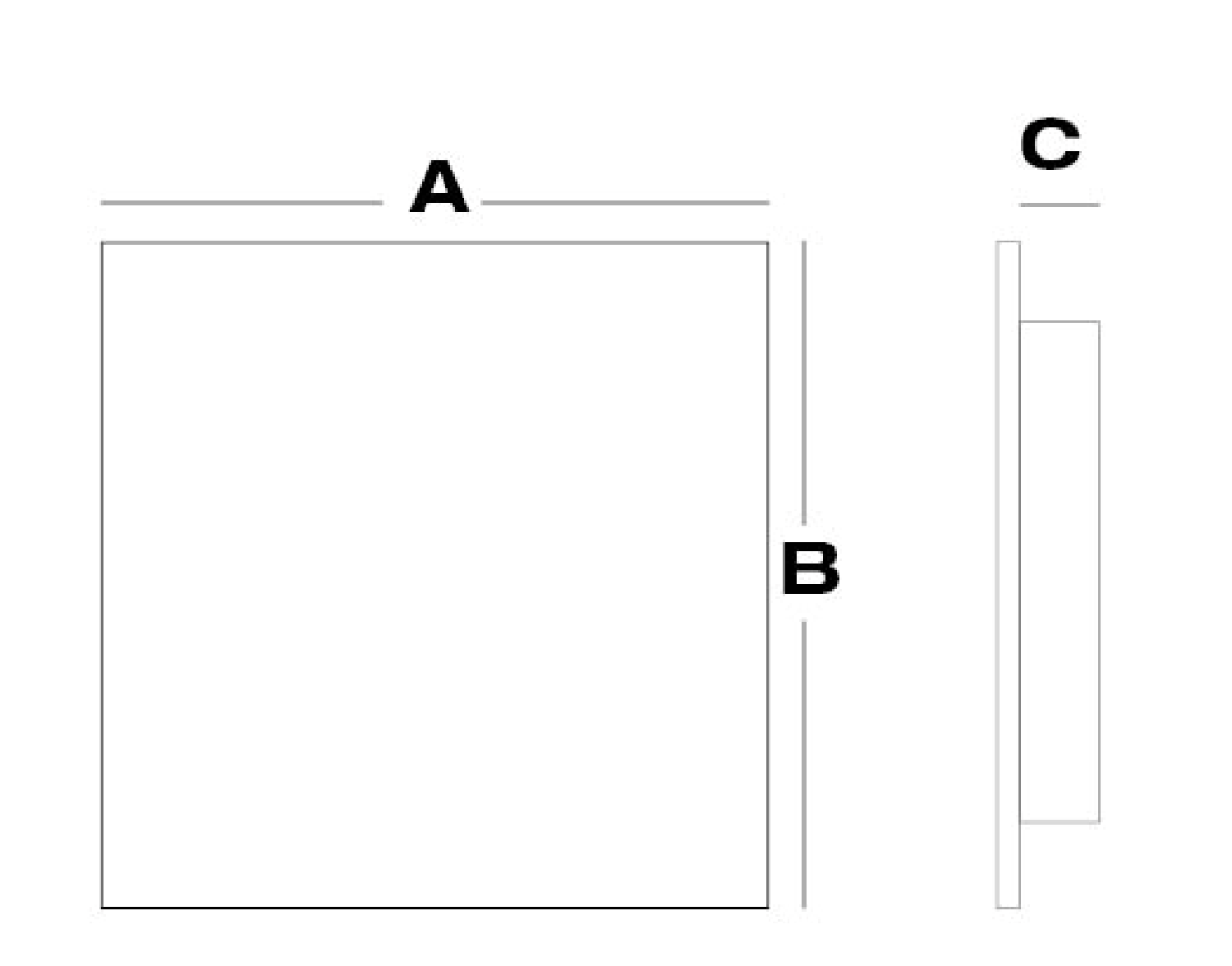

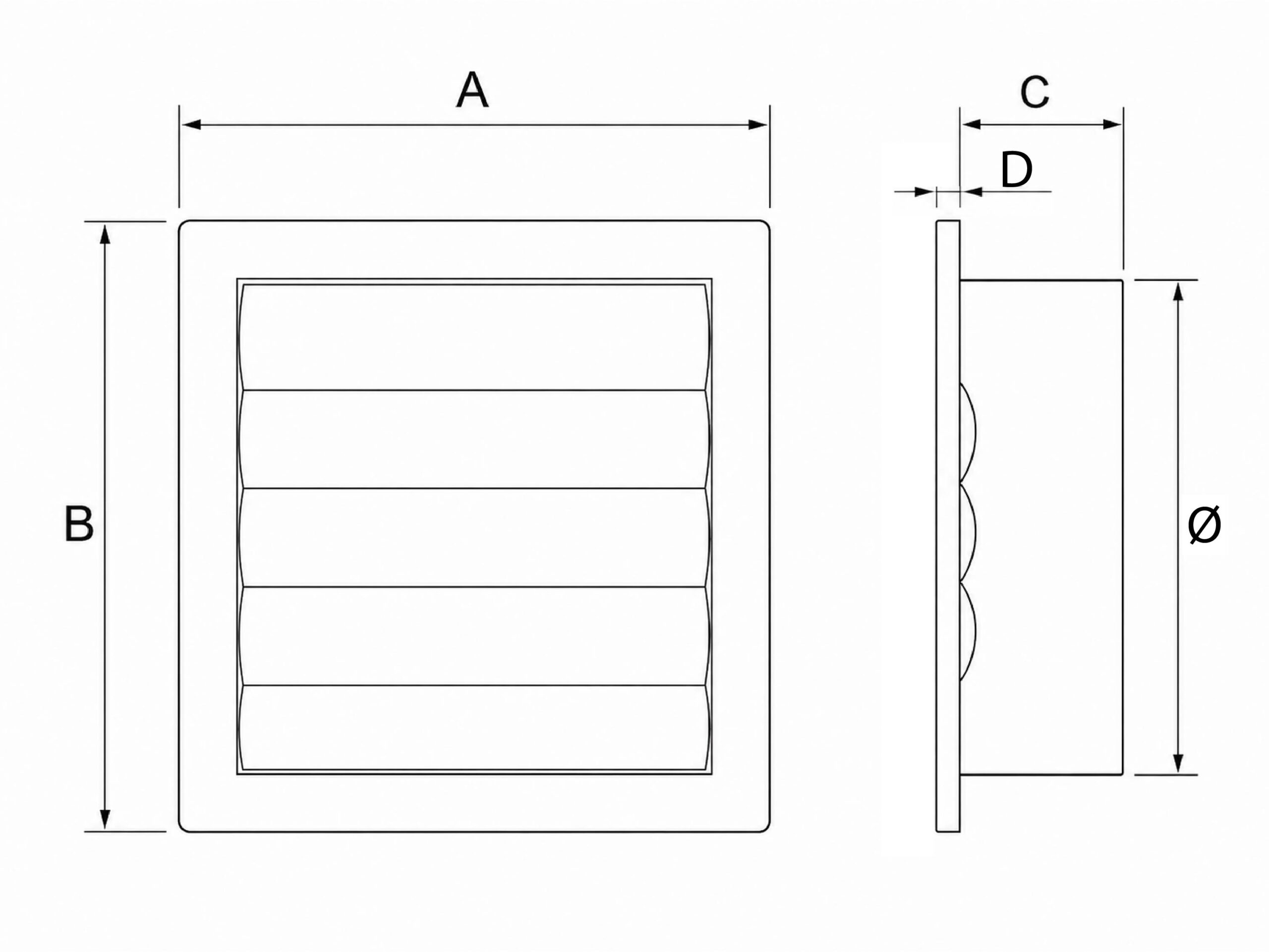

Type | Dimension | Goal | A | B | C | Ø |
70/10C | 180 x 180 mm | Ø100 mm | 180 mm | 180 mm | 28 mm | 100 mm |
