Plinth grating type 170.1 - 150 x 100 mm
Plinth grating type 170.1 for masonry in plinths.
For flush mounting in plinths.
The mesh construction prevents clogging of the channel with leaves.
Effective protection against pests.
In aluminium with galvanised expanded metal mesh.
Type | Item number | DB number | VVS number |
Type 170.1 - 150 x 100 mm | 810544 | 1141613 | 353788010
|

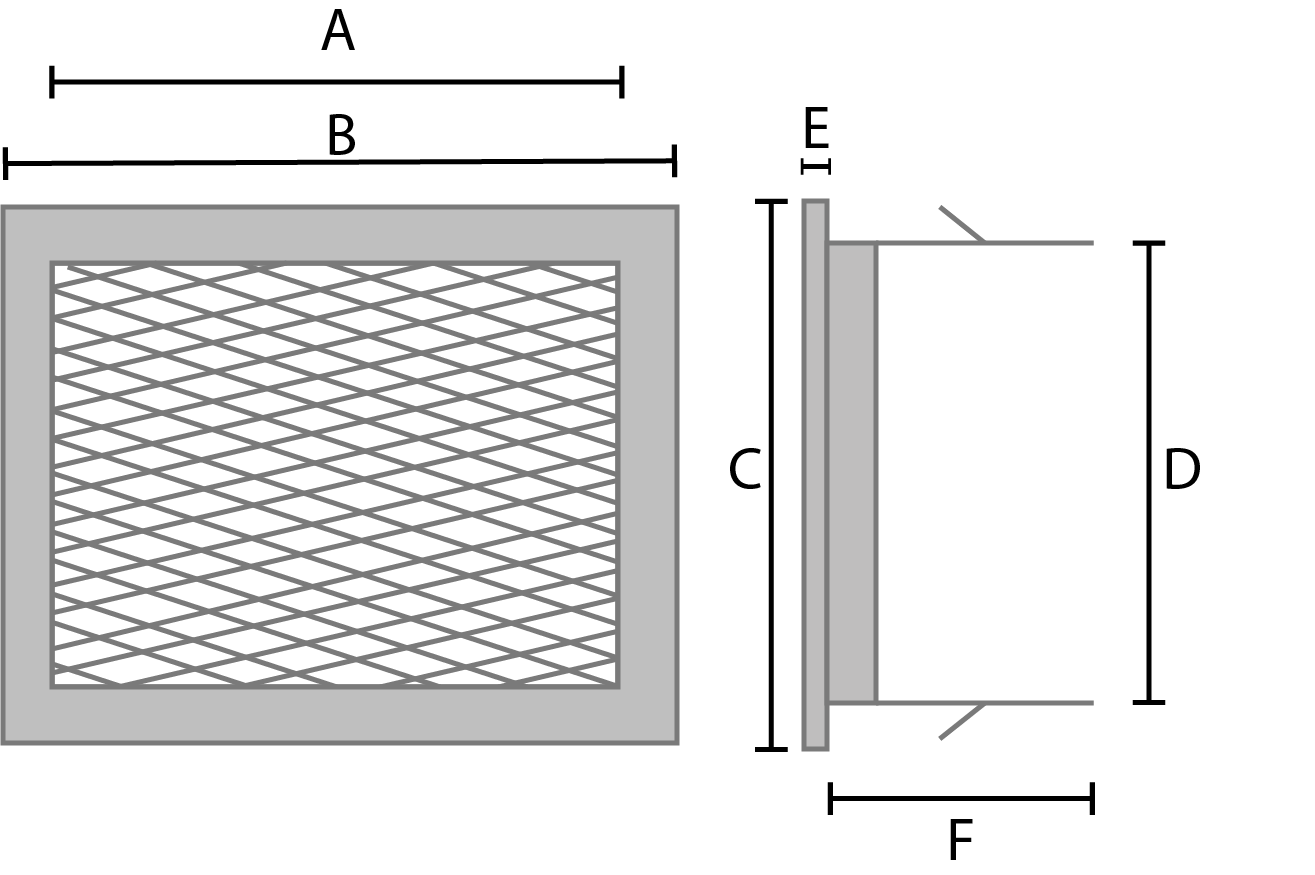

Type | Dimension | Air flow | A | B | C | D | E | F |
170.1 | 150 x 100 mm | 70 cm2 | 168 mm | 142 mm | 122 mm | 95 mm | 17 mm | 36 mm |
