Multiadaptor Ø75/100/110/110/125/130/150/160 mm
Multi adaptor for round ventilation pipes

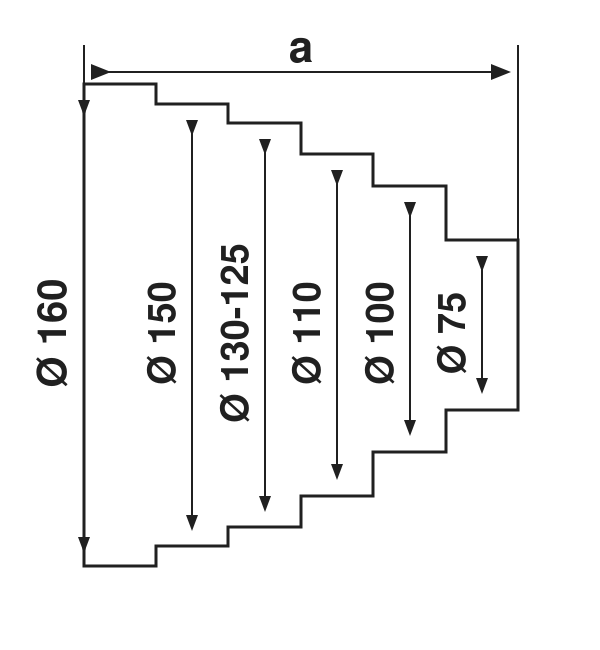

Used as a transition to the following dimensions:
- Ø160 mm
- Ø150 mm
- Ø130-125 mm
- Ø110 mm
- Ø100 mm
- Ø75 mm
For example, if you want an adapter with Ø130 mm, cut off the three smaller dimensions. Remember to seal the joints.
Can be used as a general reduction for metal pipes and plastic pipe dimensions, among other things.

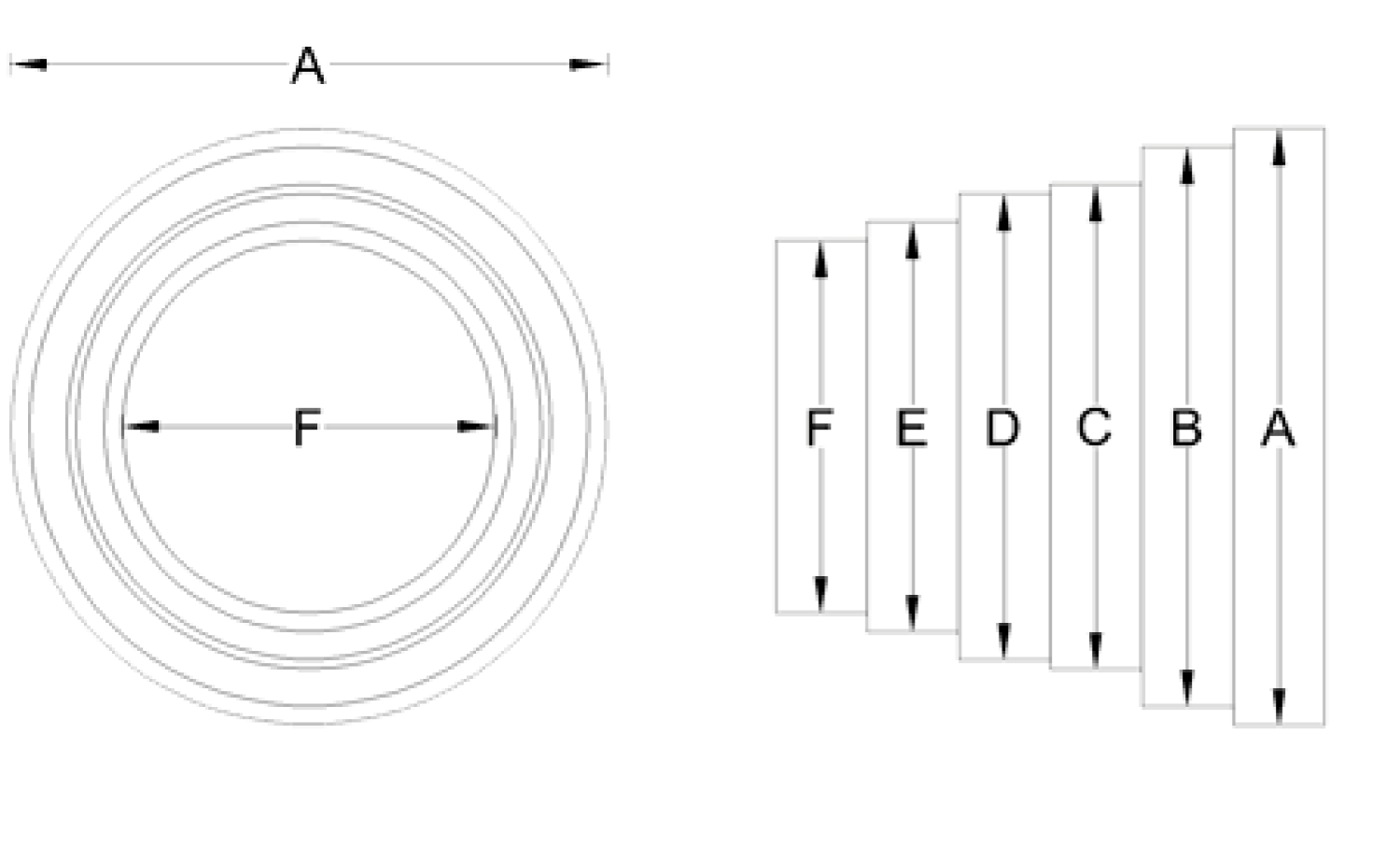

Multiadaptor | A | B | C | D | E | F |
Multiadaptor | 160 mm | 150 mm | 130-125 mm | 110 mm | 100 mm | 75 mm |
