Universal mounting plate for Ø102 – Ø127 – Ø133 – Ø152 – Ø162

Used when the fan does not cover the duct opening, e.g. when installing a fan over an old duct for a flap valve.

The cover plate comes as standard with a Ø102 mm hole, so all Ø100 mm bathroom fans can be mounted on the cover plate.

Easily adapted to a larger pipe dimension (max Ø162) by cutting with a knife in the pre-prepared cutting grooves.

The cover plate is mounted with the cutting grooves facing the ceiling/wall for a neat finish.

Made in matt black foamed PVC

Universal mounting plate for Ø102 – Ø127 – Ø133 – Ø152 – Ø162

Used when the fan does not cover the duct opening, e.g. when installing a fan over an old duct for a flap valve.

The cover plate comes as standard with a Ø102 mm hole, so all Ø100 mm bathroom fans can be mounted on the cover plate.

Easily adapted to a larger pipe dimension (max Ø162) by cutting with a knife in the pre-prepared cutting grooves.

The cover plate is mounted with the cutting grooves facing the ceiling/wall for a neat finish.

Made in matte white foamed PVC

Using the pipe connector ensures a tight installation without gaps between the fan and the ventilation pipe. The connector is mounted (with friction) on the back of the fan and then inserted into the ventilation pipe.

EL 700 Q is specially designed for bathroom ventilation. The model can be ceiling and wall mounted.

For wall mounting, a shutter can be purchased to prevent natural ventilation when the fan is not running.

Without steering
This model is without control, here the fan starts when the light switch is activated.

EL 700 Q is specially designed for bathroom ventilation. The model can be ceiling and wall mounted.

For wall mounting, a shutter can be purchased to prevent natural ventilation when the fan is not running.

Without steering
This model is without control, here the fan starts when the light switch is activated.

Thermostat RT 100

Thermostat control in white plastic. Can be used in conjunction with most fans. At the set temperature, you can choose whether the fan should start or stop depending on how it is connected.

Regulator ST 700

Stepless speed controller used in connection with duct fan EL 100 VK / EL 125 VK or similar fan. The speed can be adjusted so that the fan runs with less power. This can be a great advantage in connection with e.g. heat transfer systems.

NOTE: If the controller is used with a thermostat, the controller must be connected between the thermostat and the fan.

The controller has a built-in fuse of T 1.6 A, which must only be replaced with the same type of fuse. The Pro product complies with the following CE directives: LDV 73/23/EEC and EMC 89/336/EEC.

Hygrostat ST 500

The hygrostat has an electronic sensor that detects the humidity and automatically starts the fan when the humidity exceeds the set limit. The Pro product complies with the following CE directives: LDV 73/23/EEC and EMC 89/336/EEC.

Closing damper

For installation in Dukas white plastic ventilation pipes in connection with wall-mounted fans when you want to avoid draughts when the fan is switched off.

The damper is intended for wall mounting only.

If the fan is installed in the ceiling, the damper must be removed so that condensation does not collect on the back of the damper, which can then run into the motor and burn it off.

Colour: White

Closing damper

For installation in Dukas white plastic ventilation pipes in connection with wall-mounted fans when you want to avoid draughts when the fan is switched off.

The damper is intended for wall mounting only.

If the fan is installed in the ceiling, the damper must be removed so that condensation does not collect on the back of the damper, which can then run into the motor and burn it off.

Colour: White

Closing damper

For installation in Dukas white plastic ventilation pipes in connection with wall-mounted fans when you want to avoid draughts when the fan is switched off.

The damper is intended for wall mounting only.

If the fan is installed in the ceiling, the damper must be removed so that condensation does not collect on the back of the damper, which can then run into the motor and burn it off.

Colour: White

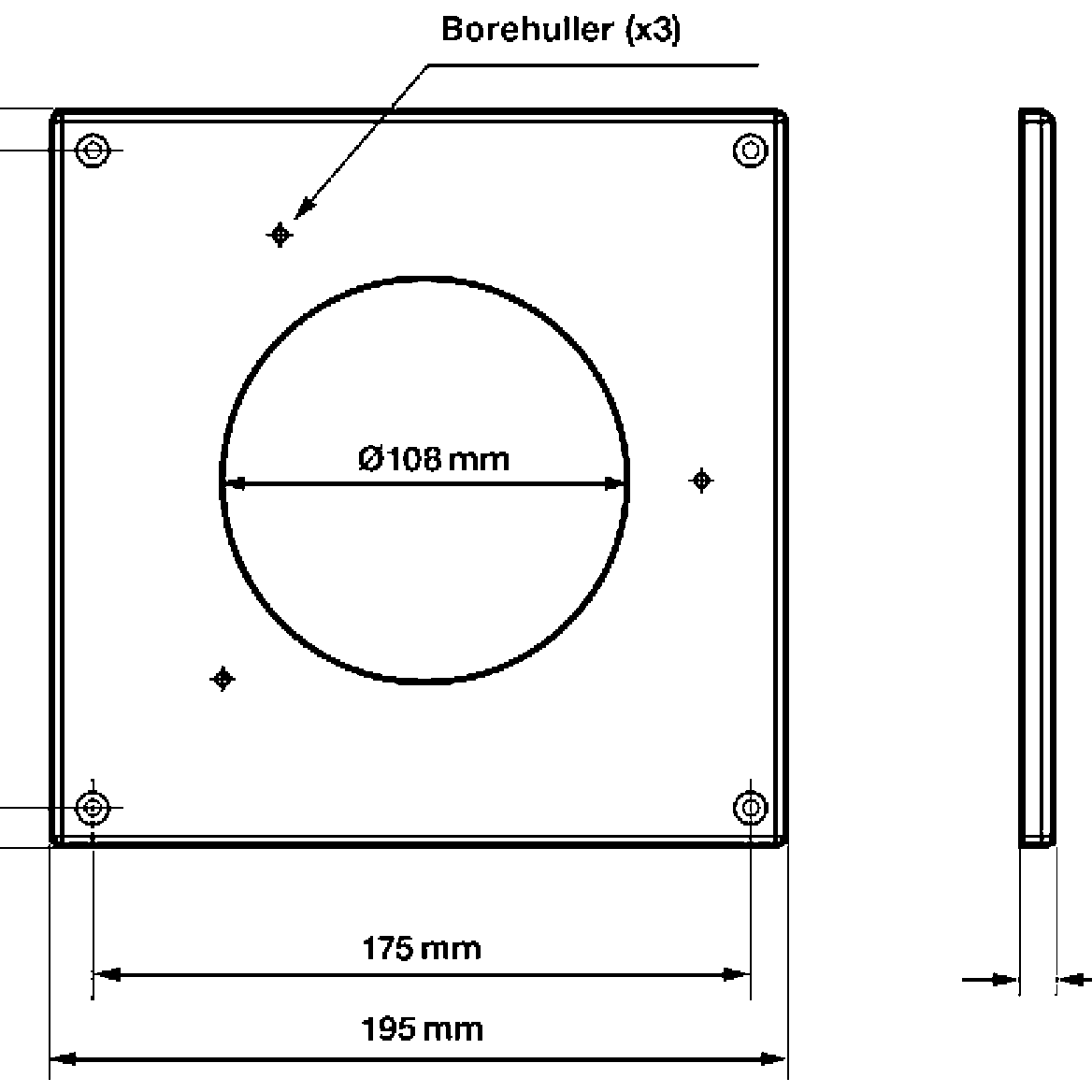

Cover plate

Used when the fan does not cover the duct opening, e.g. when installing a fan over an old duct for a flap valve. With rubber seal on the back and 4 screws for installation.

Colour: White

Damper for EL 600, 700, S7 and S8

Mounted on the outlet pipe of the fan. The damper consists of a clear plastic foil that inflates when the fan is running.

The damper is intended for wall mounting only.

If the fan is installed in the ceiling, the damper must be removed so that condensation does not collect on the back of the damper, which can then run into the motor and burn it off.

Colour: White / clear
Made of PVC.

Dampers may only be placed in horizontal pipes, i.e. for through-wall installations. Shut-off dampers must not be used in ceiling installations.

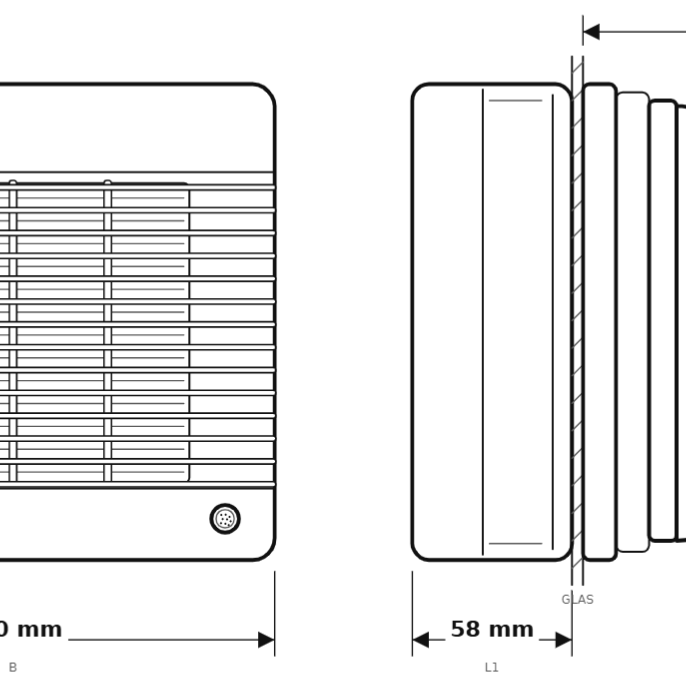

Window fan can be mounted directly in windows (4-17 mm). The fan has an automatic closing damper and is equipped with ball bearings, which ensures a long service life. On the outside is a storm shield.

Humidity and time control
The built-in humidity and time control can be set according to your needs. The humidity control can be set between 60-90% humidity. The time control can be set between 2-30 min. The fan will run after start-up for the time set on the time control. If the humidity is higher than the set level, the fan continues until the humidity is below the level again.

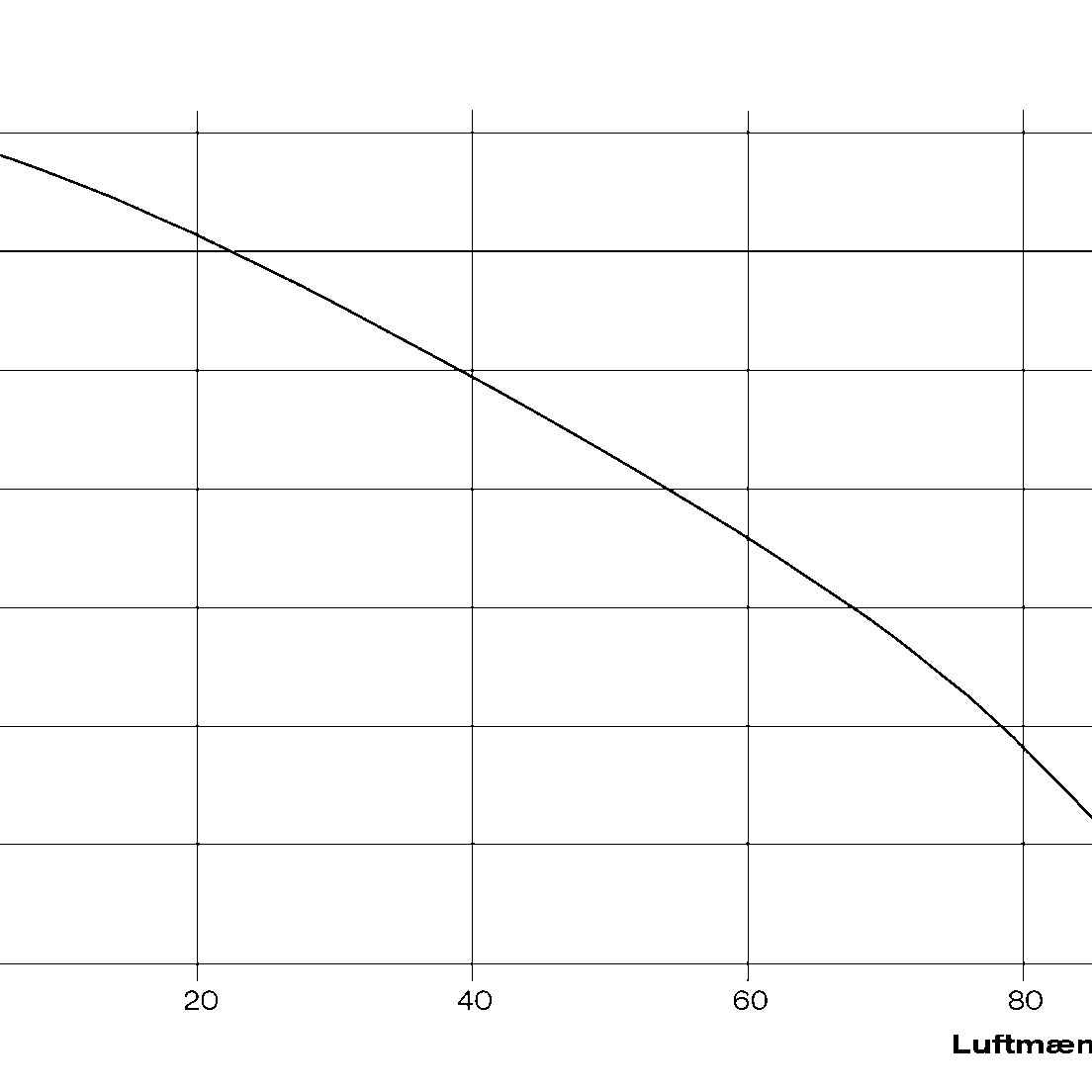

Fan with a timeless design. EL 500 S is specially designed for bathroom ventilation. It is fitted with a cord switch so it can be operated directly.

The model can be ceiling and wall mounted.

Fan with a timeless design. EL 600 TH is specially designed for bathroom ventilation. The model can be ceiling and wall mounted.

For wall mounting, a shutter can be purchased to prevent natural ventilation when the fan is not running.

With humidity and time control
The built-in humidity and time control can be set according to your needs. The humidity control can be set between 50-90% humidity.
The time control can be set between 2-30 min. The fan runs after start-up for the time set on the timer. If the humidity is higher than the set level, the fan continues until the humidity is below the level again.

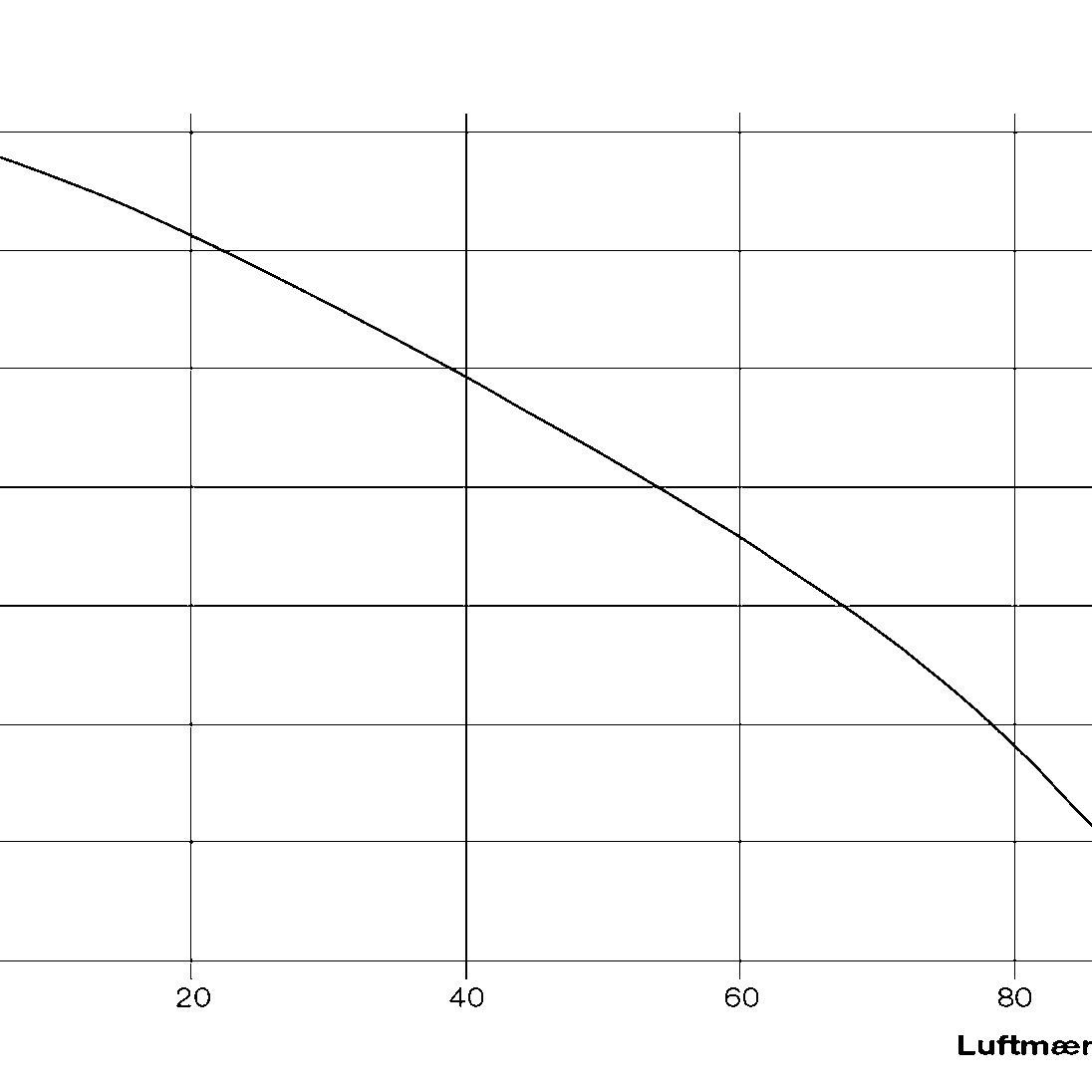

Fan with a timeless design. EL 600 is specially designed for bathroom ventilation. The model can be ceiling and wall mounted.

For wall mounting, a shutter can be purchased to prevent natural ventilation when the fan is not running.

Without steering
This model is without control, here the fan starts when the light switch is activated.

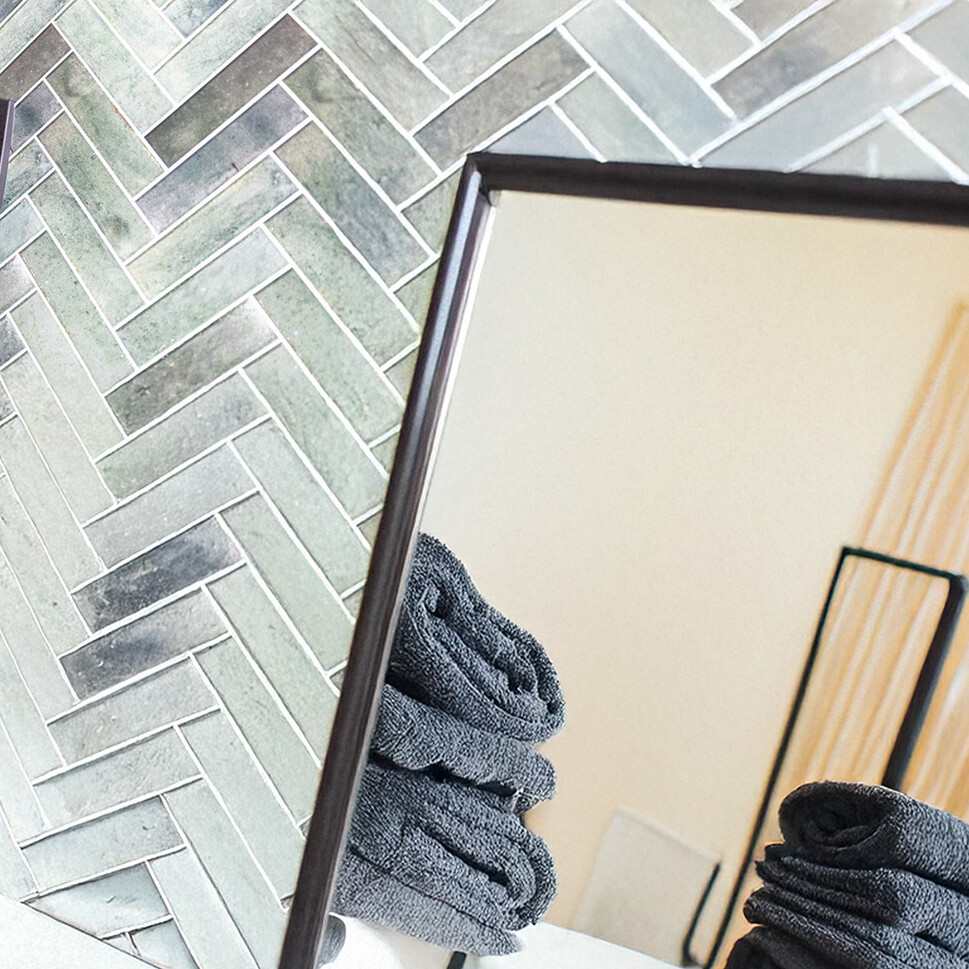

Front cover

Black front cover that can be mounted on the fan if black suits your interior better.

Colour: Black

EL 700 Q TH is specially designed for bathroom ventilation. The model can be ceiling and wall mounted.

For wall mounting, a shutter can be purchased to prevent natural ventilation when the fan is not running.

Humidity and time control
The built-in humidity and time control can be set according to your needs. The humidity control can be set between 60-90% humidity.
The time control can be set between 2-30 min. The fan runs after start-up for the time set on the timer. If the humidity is higher than the set level, the fan continues until the humidity is below the level again.

EL 700 Q TH is specially designed for bathroom ventilation. The model can be ceiling and wall mounted.

For wall mounting, a shutter can be purchased to prevent natural ventilation when the fan is not running.

Humidity and time control
The built-in humidity and time control can be set according to your needs. The humidity control can be set between 60-90% humidity.
The time control can be set between 2-30 min. The fan runs after start-up for the time set on the timer. If the humidity is higher than the set level, the fan continues until the humidity is below the level again.

Pro 35 is a larger version of the well-known Pro 30 fan. Pro 35 also has a silent motor, designed for larger bathrooms and other rooms in need of increased ventilation. Pro 35 has a capacity up to 315 m3/h. This model has two different speed settings. Despite its high performance, power consumption is very low. The fan is equipped with ball bearings, which ensures a long service life, and the fan has a 5-year warranty.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.

Without steering
This model is without control, here the fan starts when the light switch is activated.

Specifications

Pro 35 TH is a larger version of the well-known Pro 30 fan. Pro 35 TH also has a silent motor, designed for larger bathrooms and other rooms in need of increased ventilation. Pro 35 TH has a capacity up to 315 m3/h. This model has two different speed settings. Despite its high performance, power consumption is very low. The fan is equipped with ball bearings, which ensures a long service life, and the fan has a 5-year warranty.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.

Humidity and time control
In addition to humidity and time control, this model also has 2 speeds and can be set to run continuously. The humidity control can be set between 60-90% RH and the run-on time between 2-30 min.

Here is a brief overview of the different options PRO 35 TH has:

Mode 1 (one speed)
When the fan starts, it runs at step 1 speed.

Mode 2 (one speed)
When the fan starts, it runs at step 2 speed.

Mode 3 (two speeds)
The fan runs constantly on stage 1. When the switch is activated or the humidity increases, the fan moves up to stage 2.

Mode 4 (two speeds)
When the switch is activated, the fan starts on stage 1. When the humidity rises, it runs on stage 2.

Mode 5 (two speeds)
When the switch is activated, the fan starts on stage 1, if the humidity rises it goes up to stage 2, but if the switch is turned off the fan goes down to stage 1 until the humidity is below the set level.

If the switch is not switched on and the humidity rises, the fan will start on step 1 until the humidity is below the set level. But if the switch is on and the humidity is still high, the fan will run on stage 2 until the switch is turned off - then it will run on stage 1 until the humidity is below the set level.

Specifications

Pro 32

Pro 32 Pro is a larger version of the well-known 30 Pro fan. 32 also has a low-noise motor, designed for larger bathrooms and other rooms that require increased ventilation. 32 Pro has a capacity of up to 183 m3/h. Despite its high performance, the power consumption is very low. The fan is equipped with ball bearings, which ensures long life, and the fan has a 5-year warranty.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.

Without steering
This model is without control, here the fan starts when the light switch is activated.

Pro 32TH

Pro 32TH is a larger version of the well-known Pro 30 fan. Pro 32TH also has a silent motor, designed for larger bathrooms and other rooms in need of increased ventilation. Pro 32TH has a capacity up to 183 m3/h. Despite its high performance, power consumption is very low. The fan is equipped with ball bearings, which ensures a long service life, and the fan has a 5-year warranty.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.

Humidity and time control
The humidity level can be set as needed (between 60-90% RH), whereby the fan starts when the humidity in the room exceeds this limit and runs until the humidity is below the limit again.

The timer can be set between 2-30 minutes. The timer is activated when the switch is turned on and then runs for the set number of minutes after it is switched off.

Pro 90 is a high-quality fan with a very quiet motor and a stylish front designed for bathrooms and more. The fan is equipped with ball bearings, which ensures a long service life. Although it has a high performance, its power consumption is very low.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.

Pro 90 is a high-quality fan with a very quiet motor and a stylish front designed for bathrooms and more. The fan is equipped with ball bearings, which ensures a long service life. Although it has a high performance, its power consumption is very low.

The fan can be either ceiling-mounted or wall-mounted.
For ceiling installation, the supplied clear foil damper must be removed from the fan's outlet spigot. This is important to prevent condensation from collecting on the back of the damper, which can then run into the fan motor and short-circuit it.
Leaving the damper off also provides better ventilation when the fan is not running, due to the natural buoyancy.
