DUKA S7
IMPORTANT!
Please read these instructions thoroughly before installation and use.
VThe fan is intended for fixed installation and must be connected by an authorised installer.
This appliance may only be used by persons aged eight years and above. Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge should not install and adjust the product unless they have been supervised or instructed in the safe use of the appliance and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised. Precautions must be taken to avoid the backflow of gases into the room from open flue gas or other fuel-burning appliances (for duct and partition fans).
Thank you for choosing a quality fan from Duka Ventilation.
We hope you will be satisfied with your new S7 fan for many years to come.
For your safety, every fan is factory-tested before leaving production.

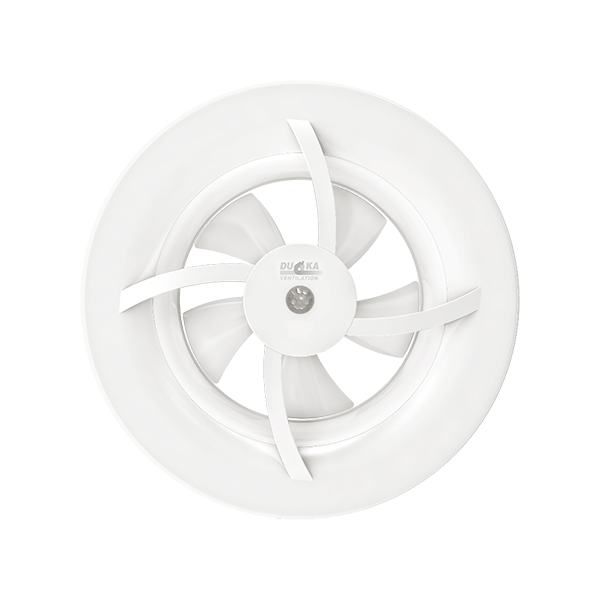

DUKA S7 – nine fans in one
S7 is a multi-function fan that can be installed in bathrooms, living areas (with eight ventilation solutions) or used as an energy-saving heat mover. With the unique function selector, it is easy to change the function. Lift the round front cover and select the function.
Bathroom extractor fan (with eight selectable functions)
S7 has eight selectable functions for ventilation tasks in all dwellings with natural ventilation. It is designed and approved for use in the home's wet rooms (IP44).
Mounted on external wall or ceiling (separate and well-insulated duct Ø80 – 125 mm).
Heat transfer – save energy
S7 has a built-in electronic thermostat that controls the fan to move excess heat from, for example, a living room with a wood-burning stove to an adjacent room.
Don't forget the air supply
To achieve good and optimal ventilation in the room, you must also ensure:
– Air supply to the wet room, e.g. via a gap under the door, or another vent/grille.
- Fresh air enters the room, for example via telescopic vents

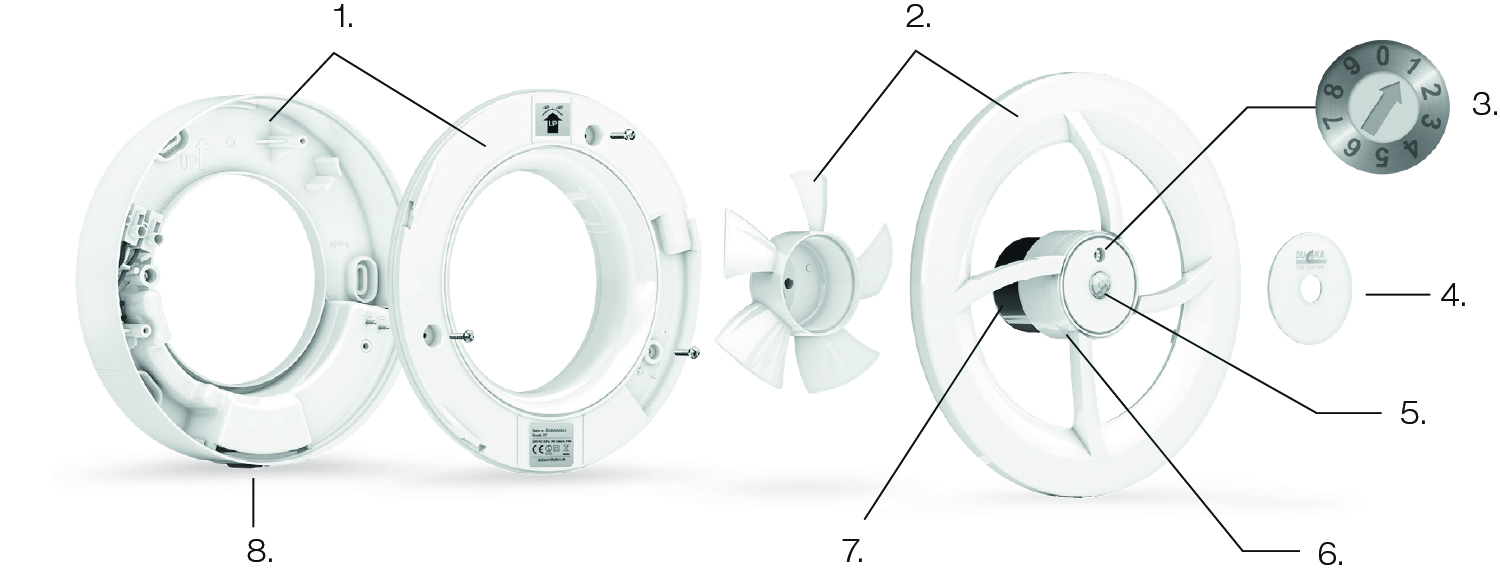

Parts of the fan
1. Frame with lock. With integrated seals.
Motor unit with bayonet fitting and detachable blade. Easy to clean.
3. Function selector.
4. Removable cover.
5. Motion (PIR) and light sensor.
6. Self-adjusting moisture control. Thermostat.
7. Self-calibrating motor. Ensures correct airflow.
8. Built-in switch.
The package contains:
1 pc. Duka S7 extractor fan
3 pcs. Screws for fixing the wall frame to the wall or ceiling
1 pc. Mini screwdriver for setting the function selector
1 pc. Operating and installation instructions.

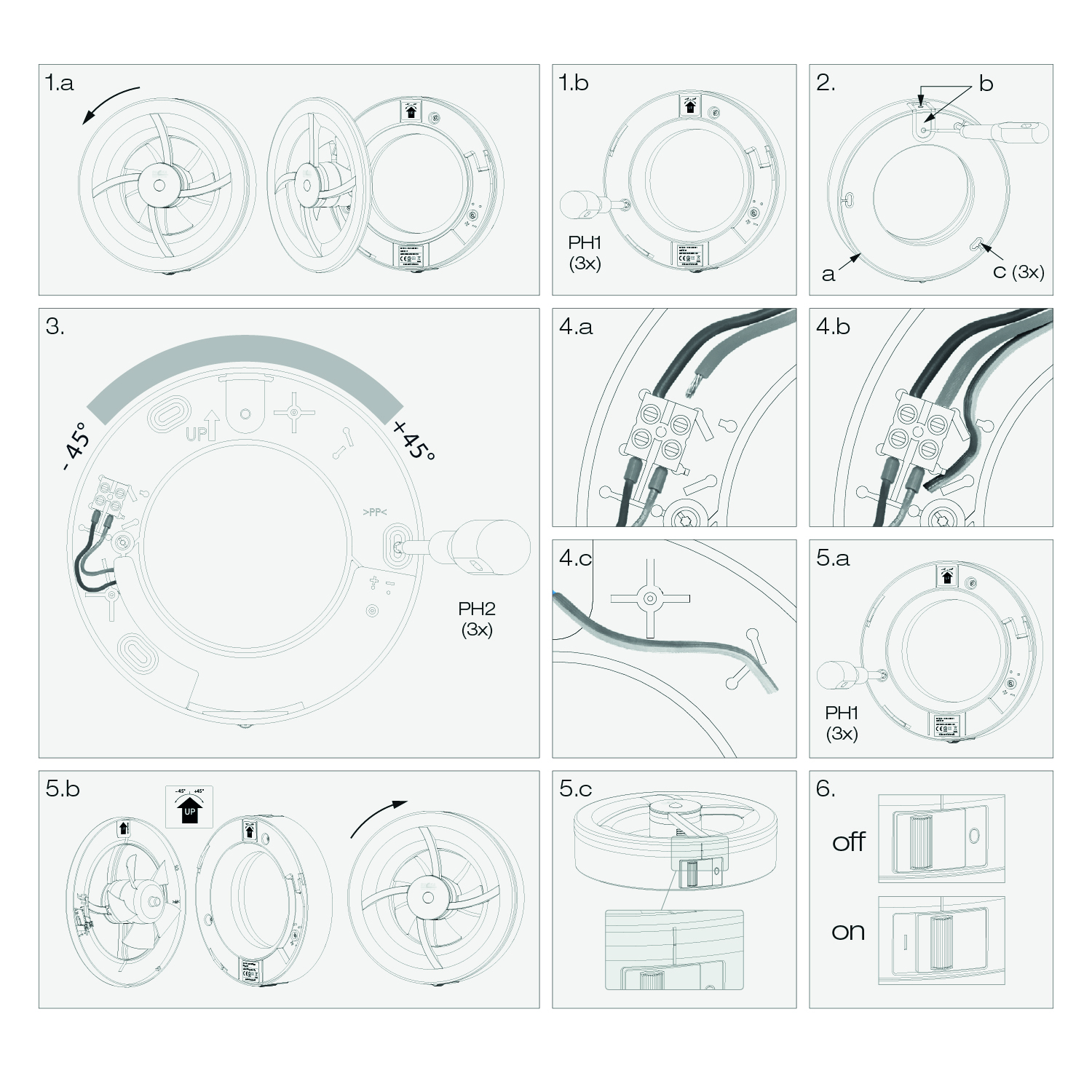

Installation
Preparations
The motor unit has a unique bayonet fitting, which makes setup or cleaning easy.
a) Gently grip the lid and turn anti-clockwise.
Lift the motor unit off the wall frame.
b) The wall frame cover is held in place by 3 screws (PH1). Loosen the screws and remove the cover. The screws remain captive in their respective holes and therefore do not need to be unscrewed completely.
Seals
To prevent water from entering the engine, the partition frame has several integrated seals (seal with silicone, for example, if necessary):
a) On the reverse, sealing against the substrate.
b) At the cable entry.
c) By the screw penetrations, 3 pcs.
Note: Any gaps between the sleeve pipe and the ventilation duct must be sealed.
Assembly of the wall frame

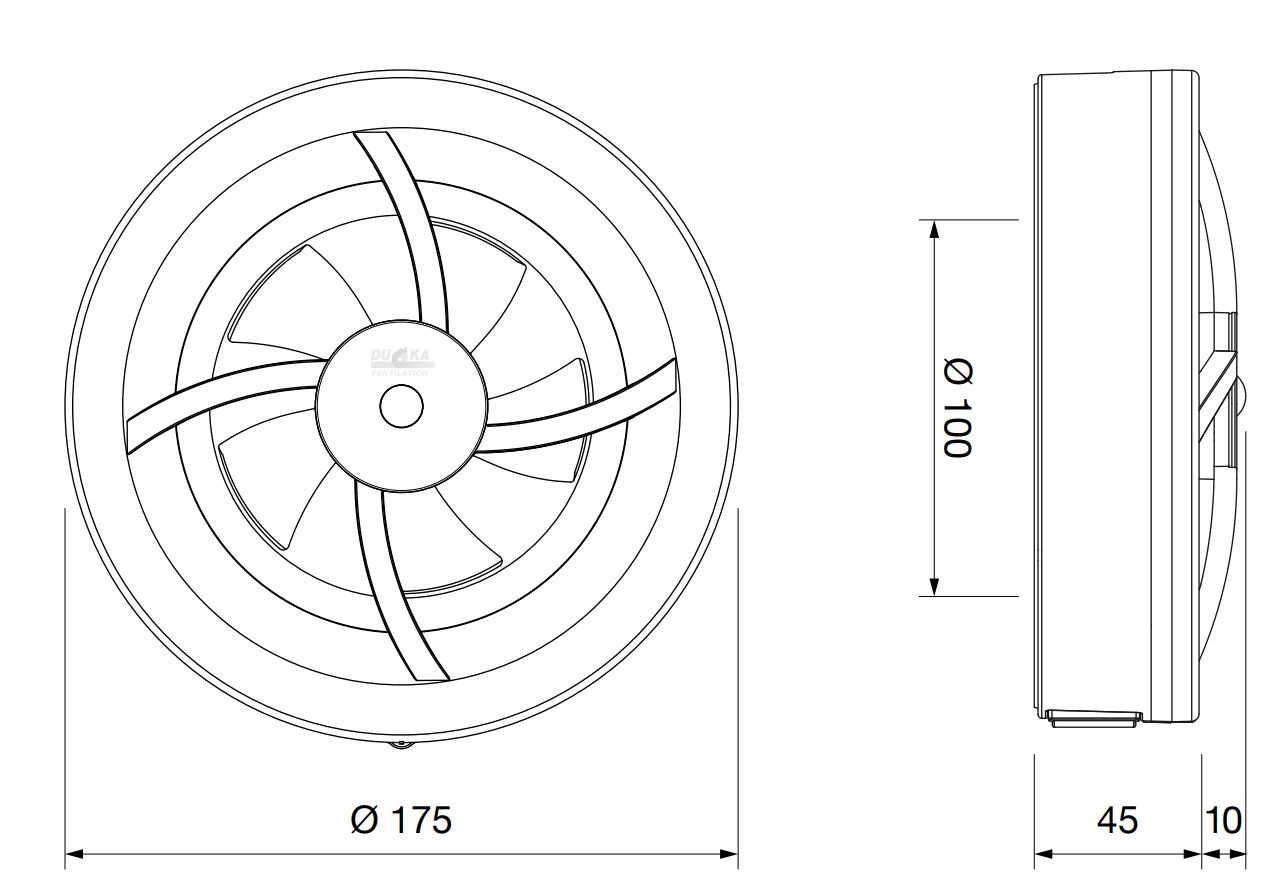

The fans are mounted on the outside of the wall or ceiling. For wall mounting, a shutter can be fitted. Suitable for duct dimensions Ø100 mm (Ø80-125 mm).
If desired, the following accessories may be used:
Pipe spigot Ø100 mm (Duka item no. 351064)
Damper Ø100 mm (Duka product no. 129383).
- The cable entry is located in the upper part of the wall frame. The El connection can be made either concealed from the back or at the top of the frame, see image above. Pierce a hole in the seal with an awl or similar sharp tool.
– The wall frame is positioned/rotated so that the cable entry is positioned upwards +/- 45 deg.
– Screw the wall frame securely to the substrate (PH2 x3).
Use Cover Plate S7 (Duka item no. 351065) if there is too little space to fasten the screws.
Electrical connection
Please note! Must be connected by a qualified installer. For all electrical work on the fan, the power supply must be disconnected.
The fan is designed for 230 V AC, 50 Hz.
Double insulated, must not be connected to earth.
a) Connect live and neutral to the terminal.
Any earth wire can be ”parked” in 2 ways:
b) To the right of the connection terminal.
c) To the right of the cable entry.
Fitting of cover and motor unit
a) Fit the cover to the wall frame (PH1 x3).
Ensure the two 12V plugs are placed in the correct position (rating plate downwards, arrow upwards).
b) The motor unit is fitted back onto the wall frame and locked by turning it clockwise. To find the correct position of the bayonet fitting, the ”UP” label on the motor unit and the wall frame must be aligned with each other.
c) There are also two line markings on the underside near the switch, which must be aligned directly opposite each other, so the motor unit is correctly fitted.
Switch
The fan is supplied with the switch in the ”0” (off) position. The fan is activated by setting the switch to the ”1” position.
According to standard EN 60335-1, it must be possible to disconnect the fan from the mains supply. This is fulfilled by the built-in switch (2-pole, 3 mm contact separation).
Function selection
The Duka S7 has nine selectable functions. The fan is factory-set to function 1, which means that it runs completely automatically at three speeds; see the description below.
Changing function
Lift off the small round cover and select the function manually using the supplied screwdriver.
It is possible to change the function even when the motor unit is detached from the wall frame.
Continuous ventilation features
Fully automatic, three speeds
Constant basic ventilation - low speed 40 m3/h
Motion and light sensor – between speed 60 m3/h
Humidity control - high speed 95 m3/h
Function 2 Fully automatic, three speeds with max. speed
Constant basic ventilation - low speed 40 m3/h
Motion and light sensor – between speed 60 m3/h
Humidity control - max. speed 110 m3/h
Function 3 Automatic, two speeds without sensor for motion and light
Constant basic ventilation - low speed 40 m3/h
Humidity control - high speed 95 m3/h
Function 8 Automatic, two speeds without sensor for movement and light – with increased background ventilation
Constant background ventilation – low speed 60 m³/h
Humidity control - high speed 95 m3/h
Heat flow
Function 7 Heat flow, with thermostat
The fan starts at 28°C and moves the excess heat to an adjacent room. It runs at high speed 95m3/h.
The fan stops again at 24°C
Temporary ventilation features
Function 4 Auto start on motion in the room, when the light is turned on or when the humidity level rises sharply.
Sensor - medium speed 60 m3/h
Note the 2½ minute delay in this function.
Humidity control - high speed 95 m3/h
Function 5 Manual start/stop on switch.
The fan can be connected for manual start via a separate light/power switch. When the switch is turned on, the fan starts and runs at high speed 95 m3/h. When the switch is turned off, the fan stops.
Function 6: Auto start upon movement in the room, when the light is turned on, or when the humidity level rises sharply.
Sensor - medium speed 60 m3/h
Humidity control - high speed 95 m3/h
Extra in function 6: Venting function.
If the fan has not been active for at least 24 hours, it starts automatically and runs at medium speed (60 m3/h) for 30 minutes every 12 hours.
Function 9 Moisture control
Auto start when the moisture level rises sharply.
Moisture control – high speed 95m3/h
Function 0 Not used.
Description of functions
Continuous ventilation (constant)
The fan runs constantly at a low speed, 40 m3/h, creating good background ventilation. The S7 has a self-calibrating motor that prevents draughts.
Sensor (movement and light)
The sensor is activated by movement (IR) or when the light is switched on. The fan runs for 15 minutes. It runs at medium speed, 60 m3/h. Note the 2½ minute delay in function 4.
Moisture management
A self-adjusting humidity sensor continuously senses the room's humidity level. The fan starts automatically when there is a rapid increase in humidity (e.g. during a shower) or if the humidity level (RH) exceeds 70%. Once the humidity level returns to normal, it drops to low speed or stops completely.
Guarantee
The Duka S7 comes with a 5-year warranty against manufacturing and material defects.
The guarantee is valid on condition that the invoice/bill can be presented, and that the fan:
– Is mounted and used indoors in normal households and has been installed by an authorised installer according to the instructions in this operating and installation manual.
- Have complied with all instructions in this operating and installation manual.
– Has not been subjected to external or internal damage, lightning strikes or abnormal power conditions.
– Not to be used for industry or other environments where there is a risk of exposure to solvents, high dust conditions, etc.
Technical data
Technical specifications can be found on our website:
www.dukaventilation.dk
Cleaning services
To maintain functions and capacity, the fan must be cleaned at least twice a year, or more often if necessary.
Solvent must not be used on the fan.
It must not be dipped in or sprayed with water.
– Before cleaning: Switch off the power at the built-in isolator switch.
– Remove the motor unit from the wall frame (see figure 1a).
– Clean the opening, channel and motor unit with a damp cloth (washing-up liquid can be used if necessary).
– The vane can be cleaned while in place, or it can be removed by pulling it straight out. It can then be washed.
– Reinstall the motor unit and lock it onto the wall frame (see figure 5b).
Environment
Discarded fans must go to electronic waste.
