DUKA One D6

DUKA One D6 with external control panel

All-in-one solution including control, with easy connection. Comfort screen, efficient and energy-conscious ventilation, and easy installation.

SKU 376809 Categories DUKA One, DUKA One devices.

DB number 1965499VVS number 358877166EAN 5708605013894

With DUKA One D6 you get a great indoor climate

All-in-one solution including control, with easy connection
Reduces radon and moisture
Constant fresh air with low heat loss
3 year warranty
With external control panel

Easy installation without ducting

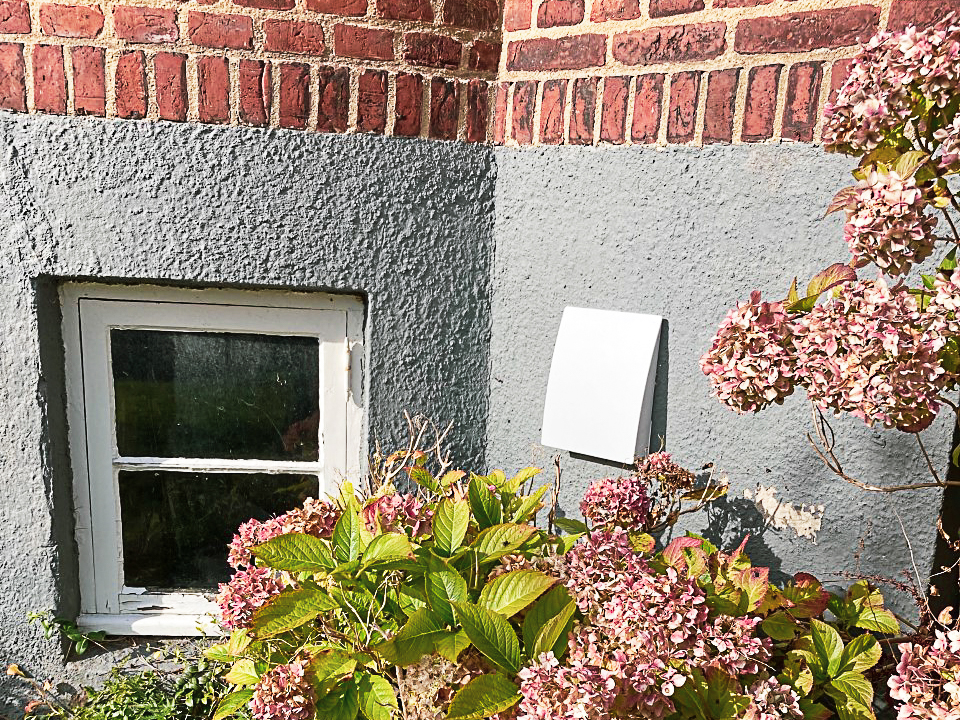

DUKA One is installed directly in the external wall, providing easy installation without ductwork throughout the home.

Supply and exhaust air cycle

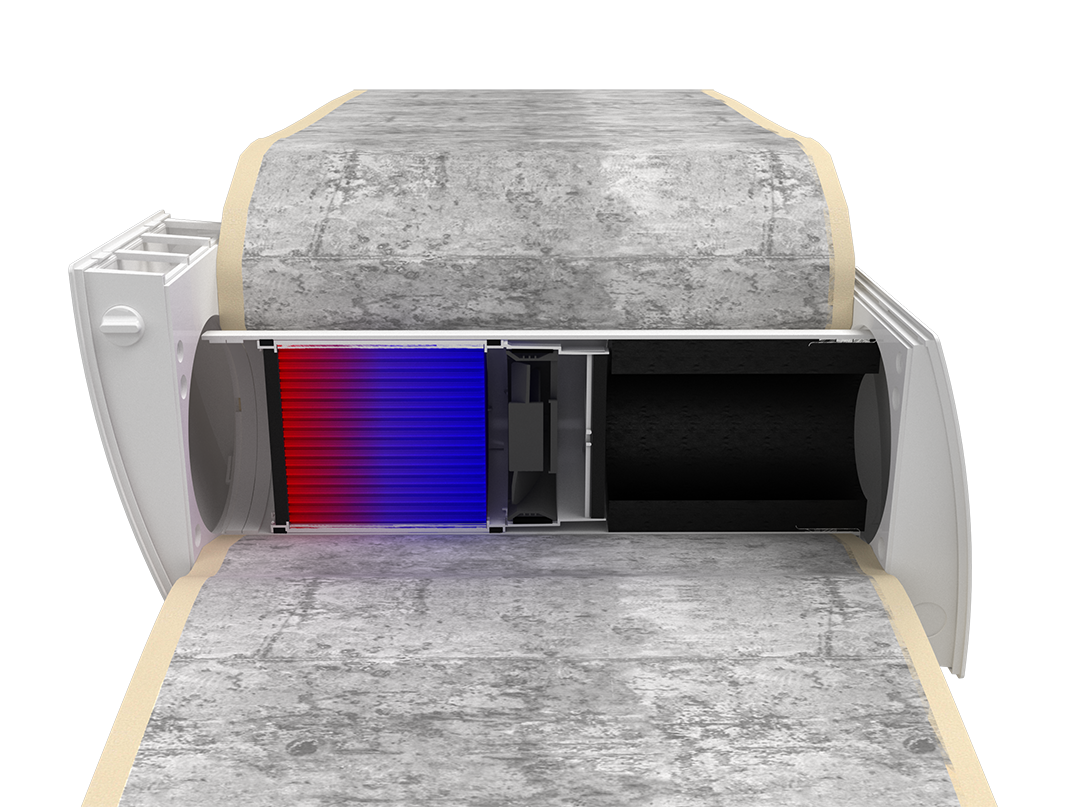

The unit can run in either ventilation or heat recovery mode. In ventilation mode, the unit will ventilate one way depending on the unit's settings. In heat recovery mode, the unit extracts the air from the home for 70 seconds, where the heat from the exhaust air is stored in the frame. The motor then reverses and blows in for 70 seconds, where the supply air is heated by the stored heat in the core.

All-in-one solution including control, with easy connection
Reduces radon and moisture
Constant fresh air with low heat loss
3 year warranty
With external control panel

PDF Manual

Data sheet

PDF Declaration of conformity

PDF Energy label

Device	Item no.	DB no.	Plumbing no.
Filter set - 1 set of 2 pcs.	345151	1828091	358889816
Filter sets - 5 sets of 2.	412816	2172165	358889856
Filter sets - 25 sets of 2.	412818	2172166	358889866
1000 mm pipe	359117	1884599	358879960
DUKA Clean	411858	2166265	358889905
DO 30: Grey storm shield	382720	1995098	358877902
DO 30: Brick red storm shield	382719	1995096	358877905
DO 30: Black storm shield	382718	1995093	358877901
DO 20: White storm shield	385014	2020572
DO 20: Black storm shield	384698	2020082	358878901
DO 20: Brick red storm shield	384696	2020079	358878905
DO 20: Grey storm shield	384697	2020081	358878902
