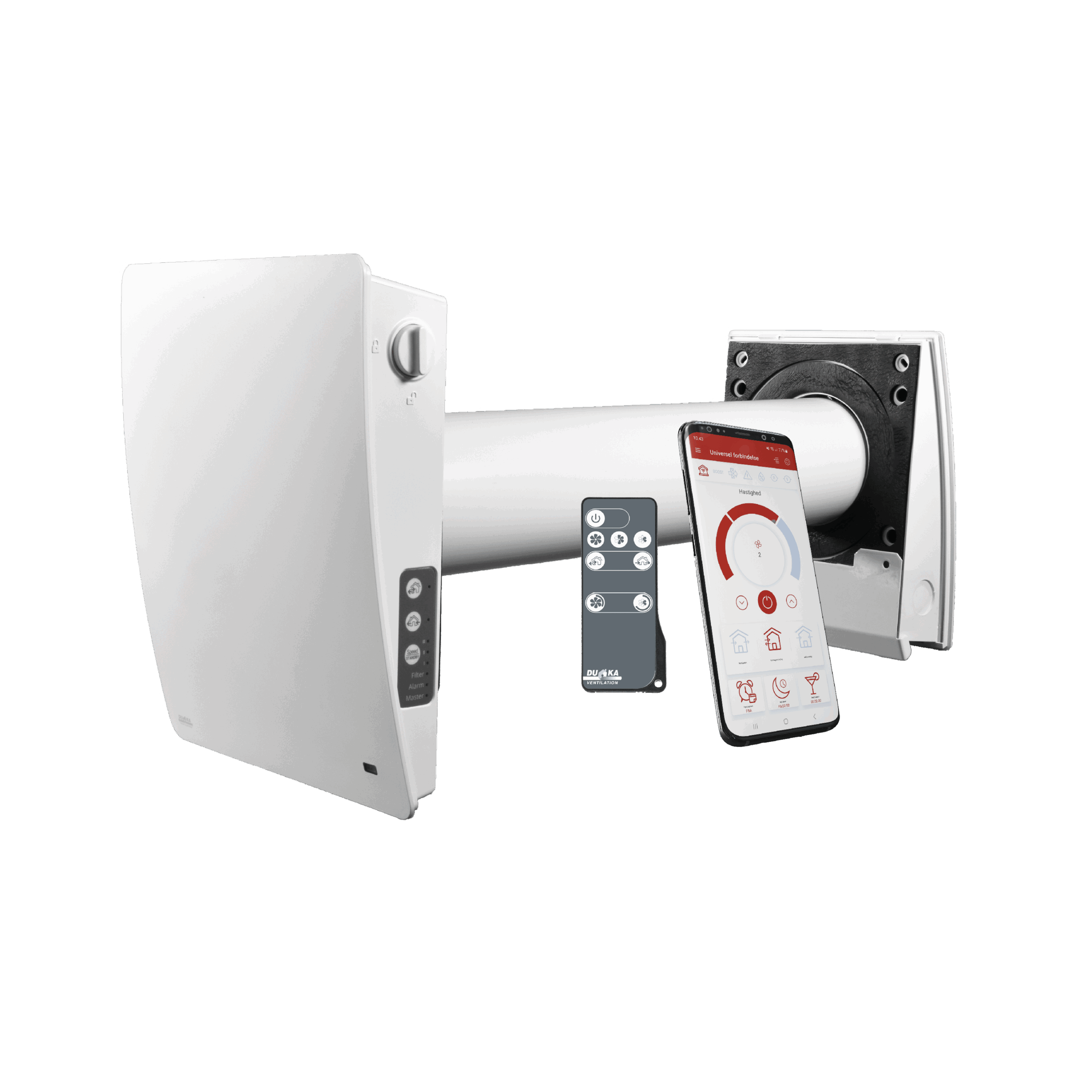

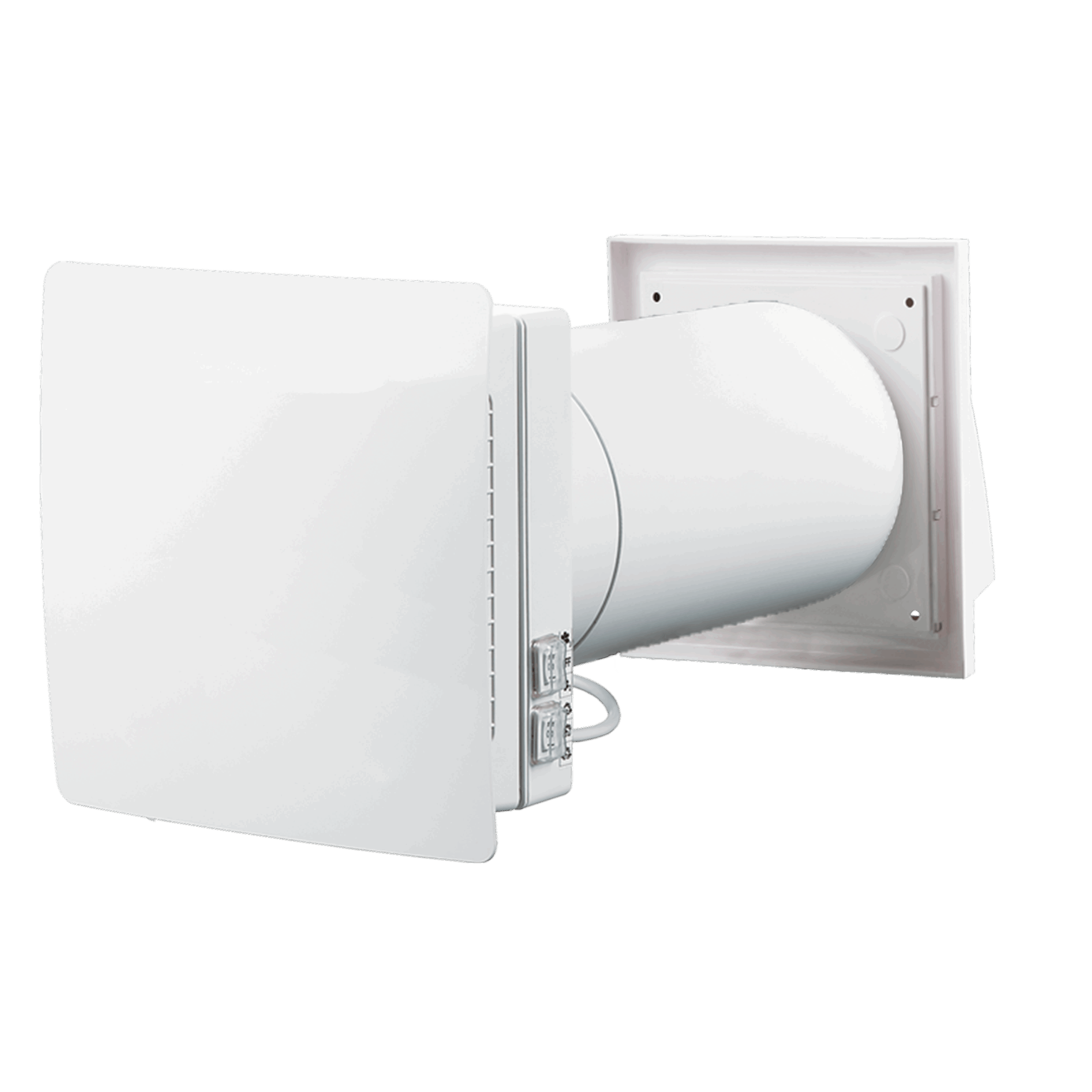

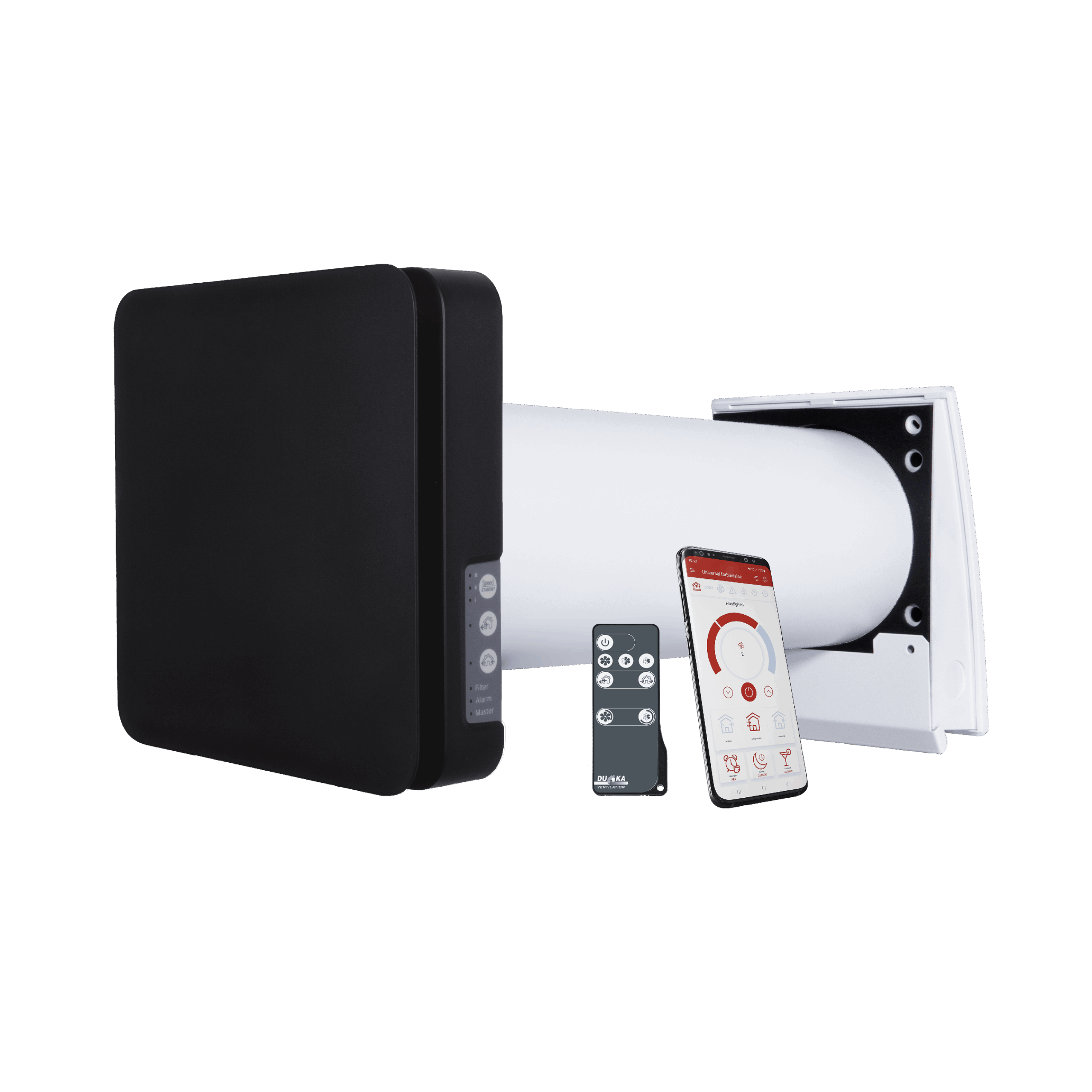

DUKA One S4 Wi-Fi

Med DUKA One S4 Wi-Fi får du et sundt og behageligt indeklima samt justerbar indvendig skærm.

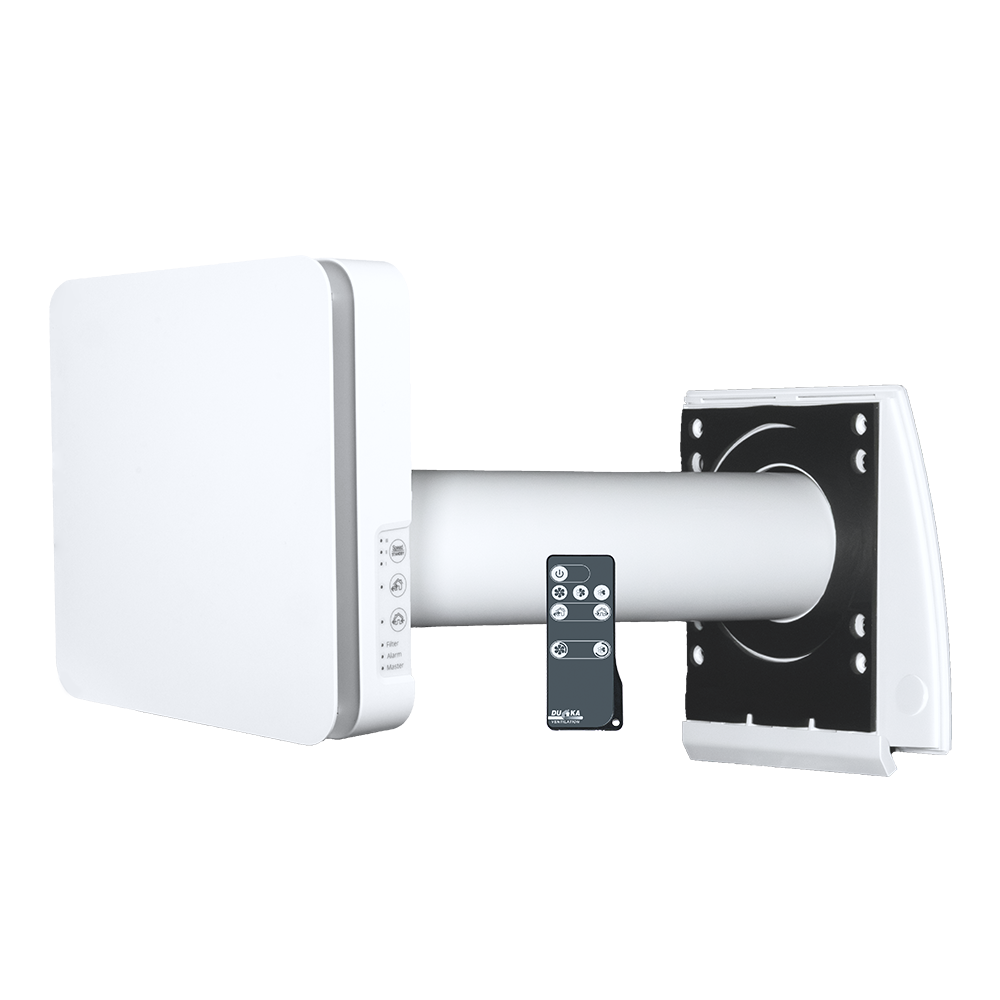

All-in-one solution with integrated control and easy installation and low noise level during operation. The inner screen can be adjusted to suit your personal needs.

SKU 440600 Categories DUKA One, DUKA One devices.

DB number 2507890VVS number 358878130EAN 5708605015874

DUKA One S4 Wi-Fi er en komfortvenlig ventilationsløsning med varmegenvinding.

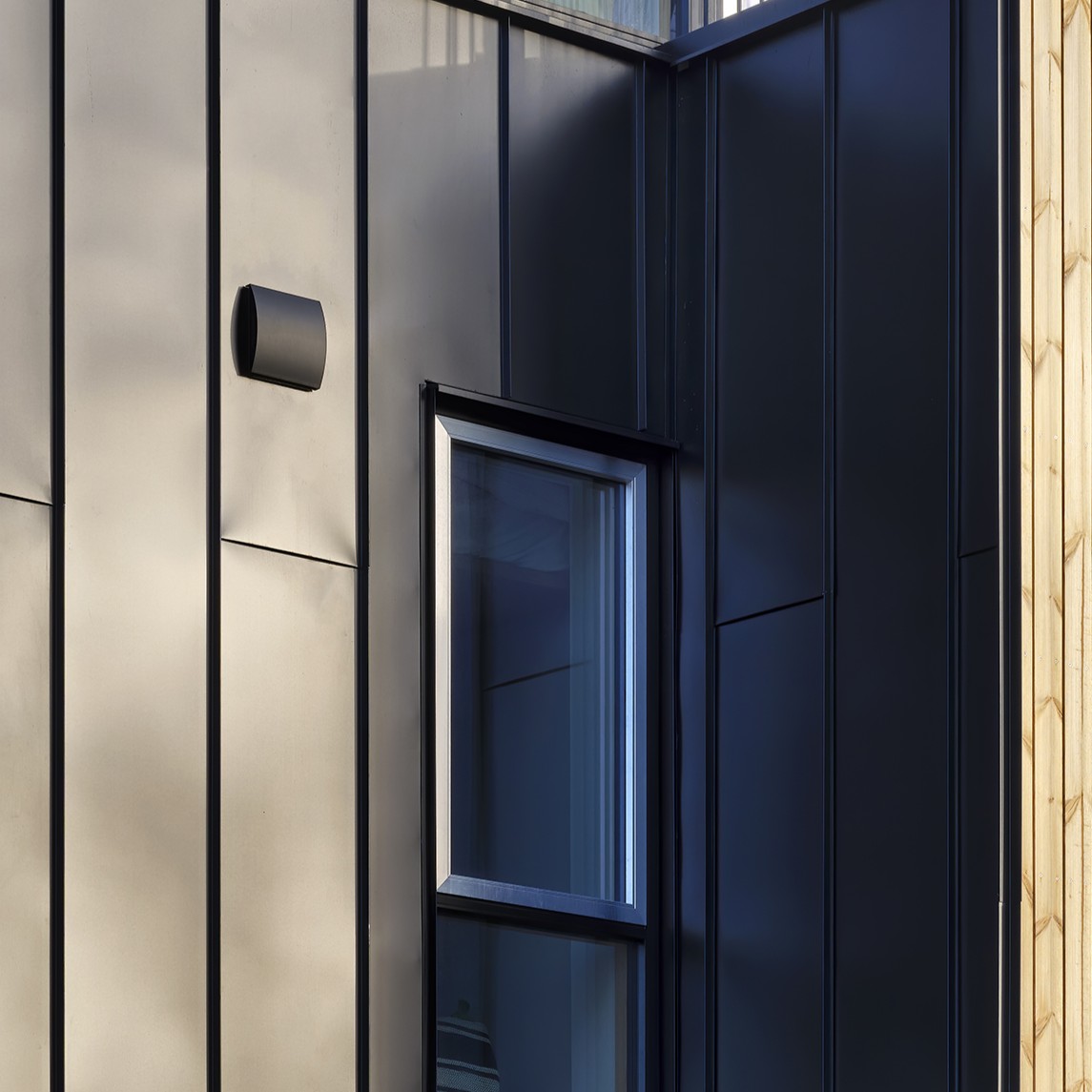

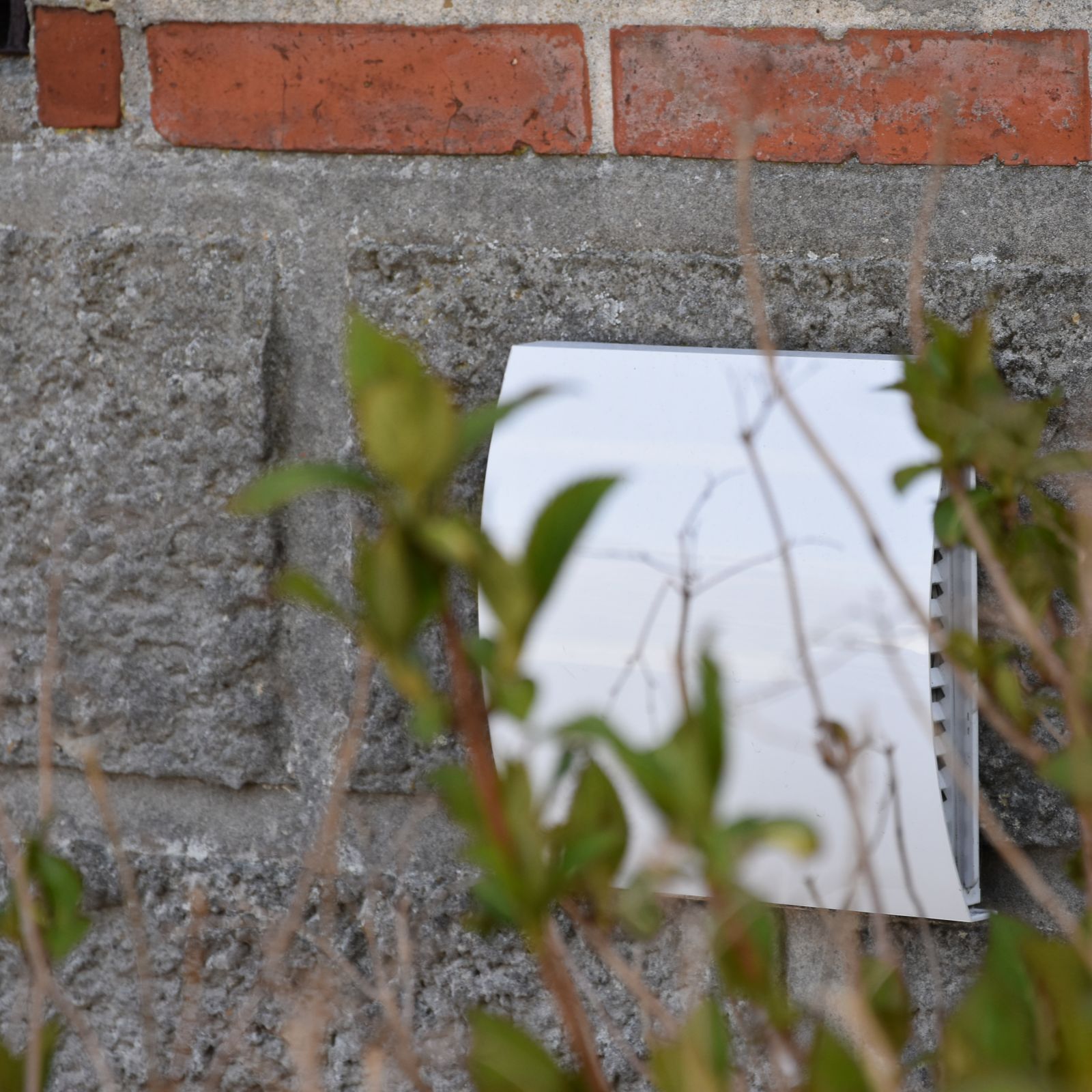

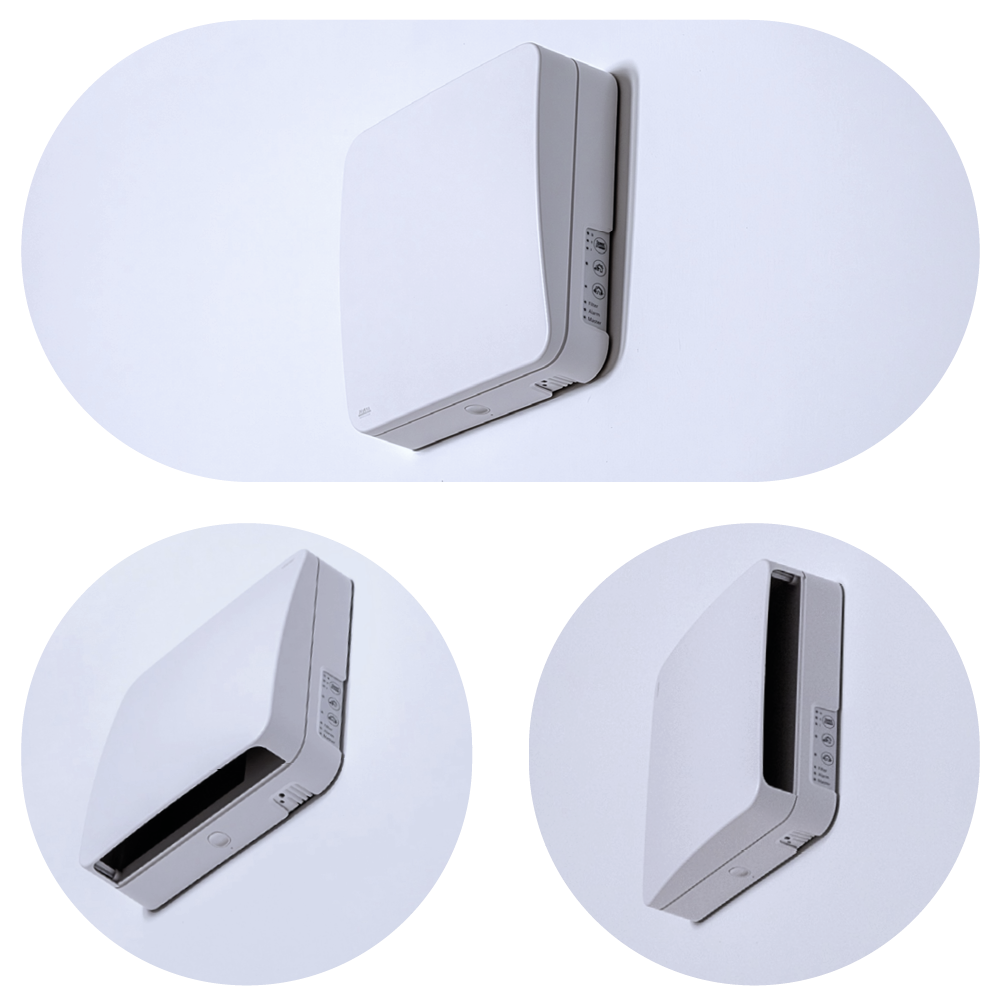

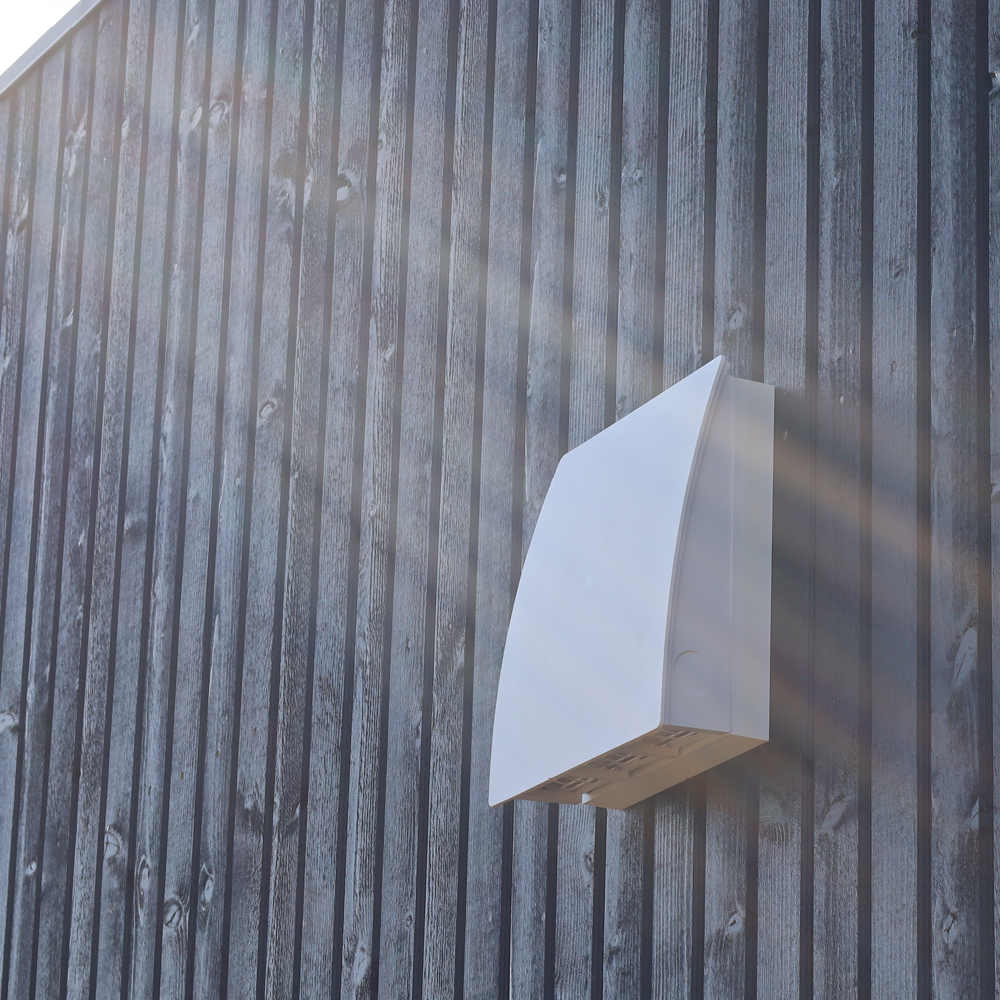

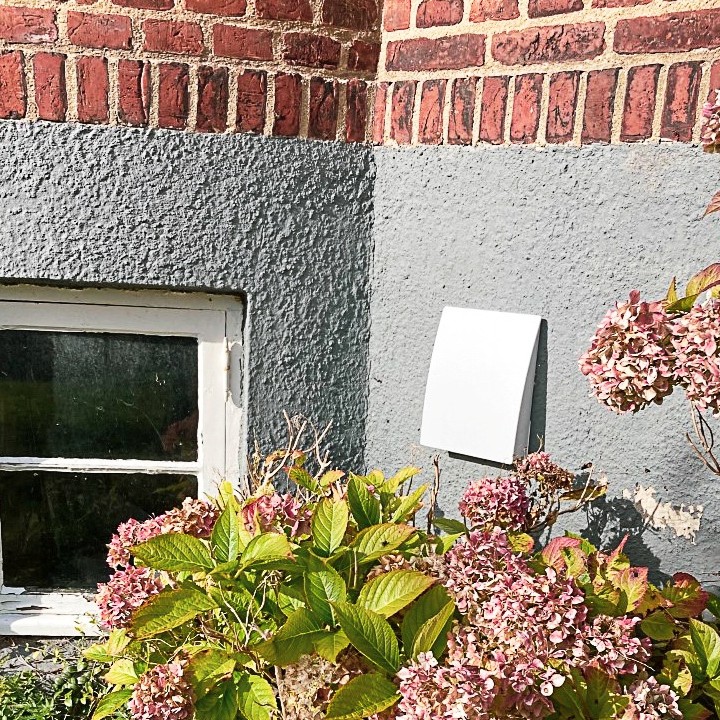

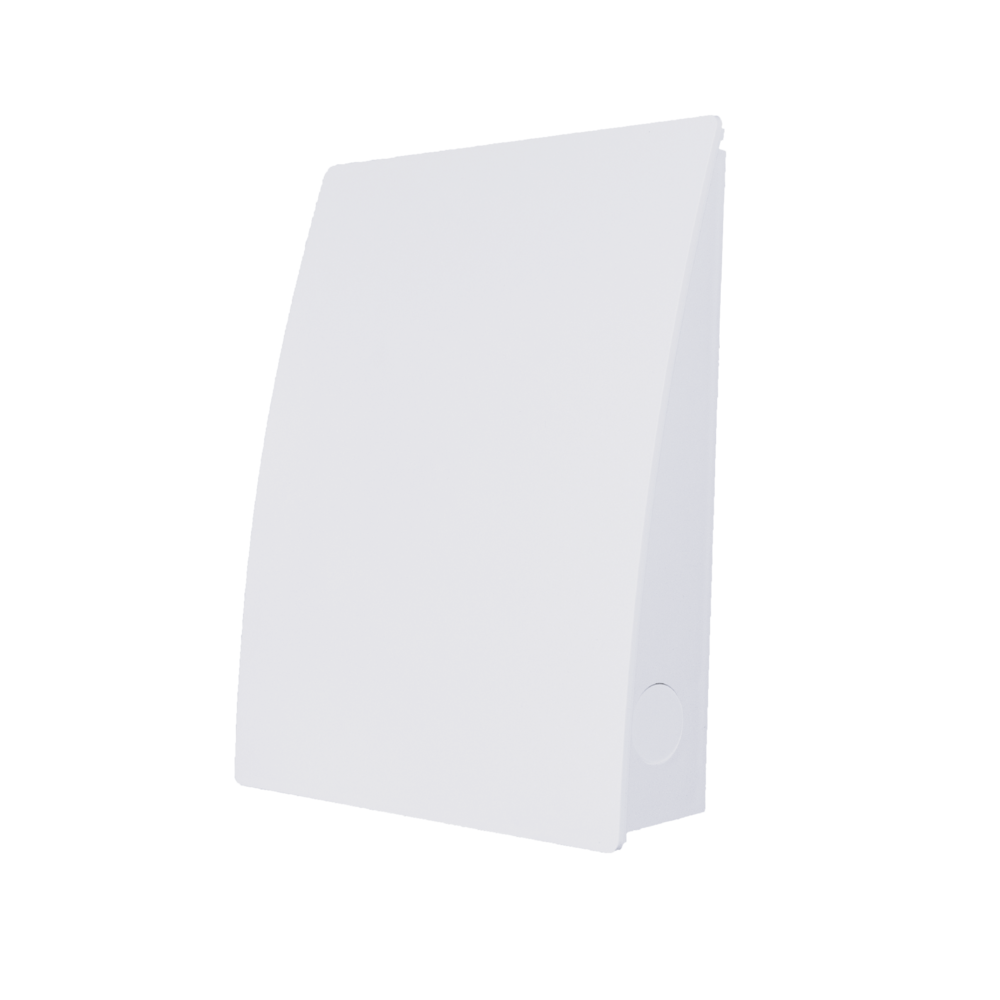

With ventilation improvements, a unit can handle up to 14 sqm. DUKA One S4 Wi-Fi has an internal supply air flow screen, where you choose the direction of the supply air yourself, reducing draught and increasing efficiency. The motor is placed furthest inside the duct, and a sound insulation mat is placed on the inside of the core for increased sound insulation. The external storm screen directs intake and exhaust air to and from the unit.

Easy installation without ducting

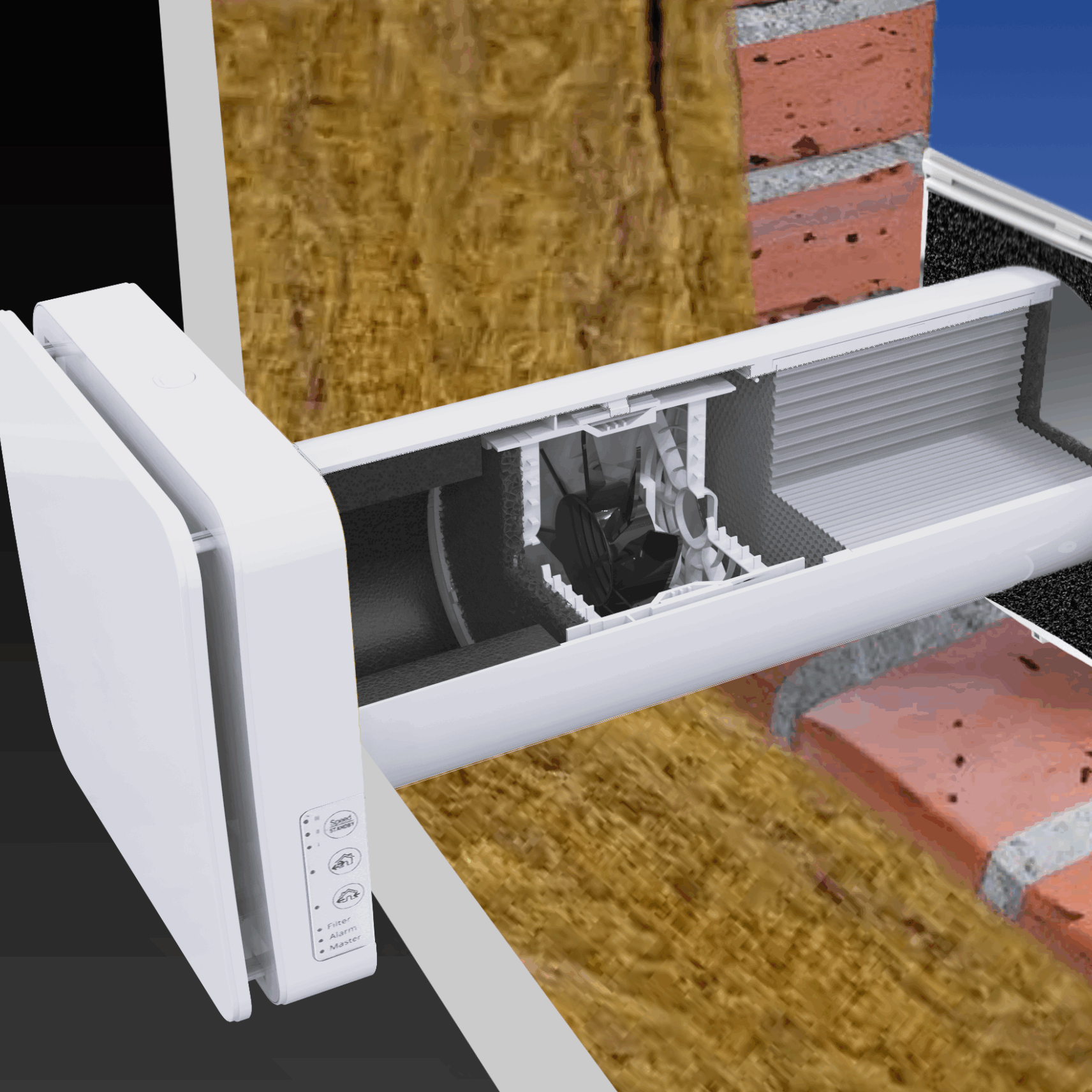

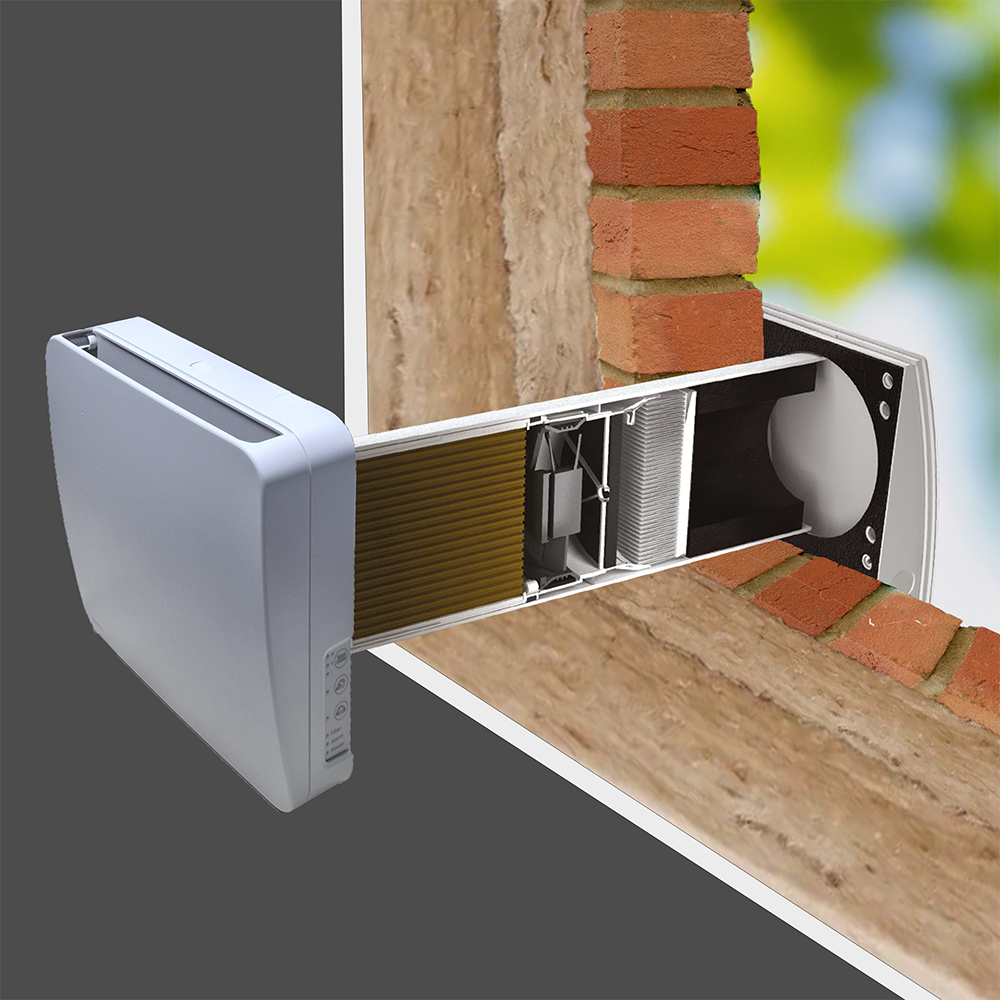

DUKA One is installed directly in the external wall, providing easy installation without ductwork throughout the home.

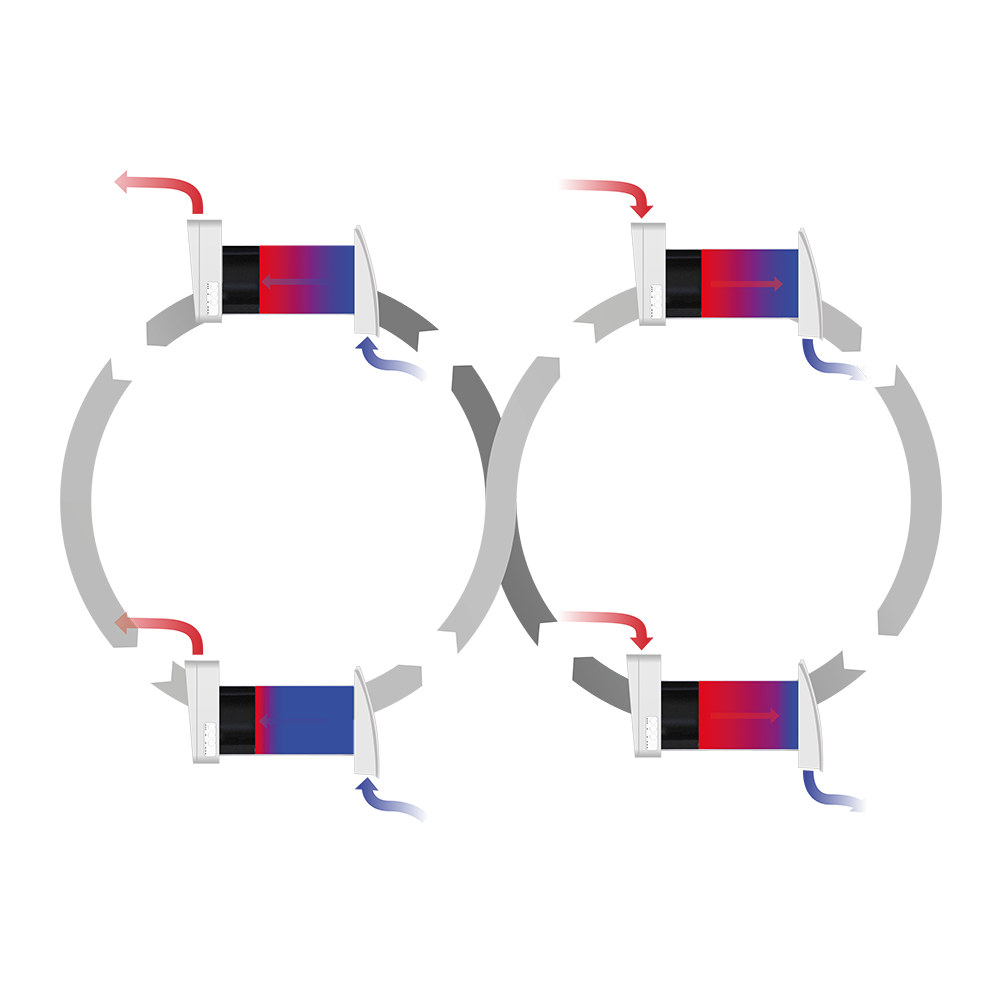

Supply and exhaust air cycle

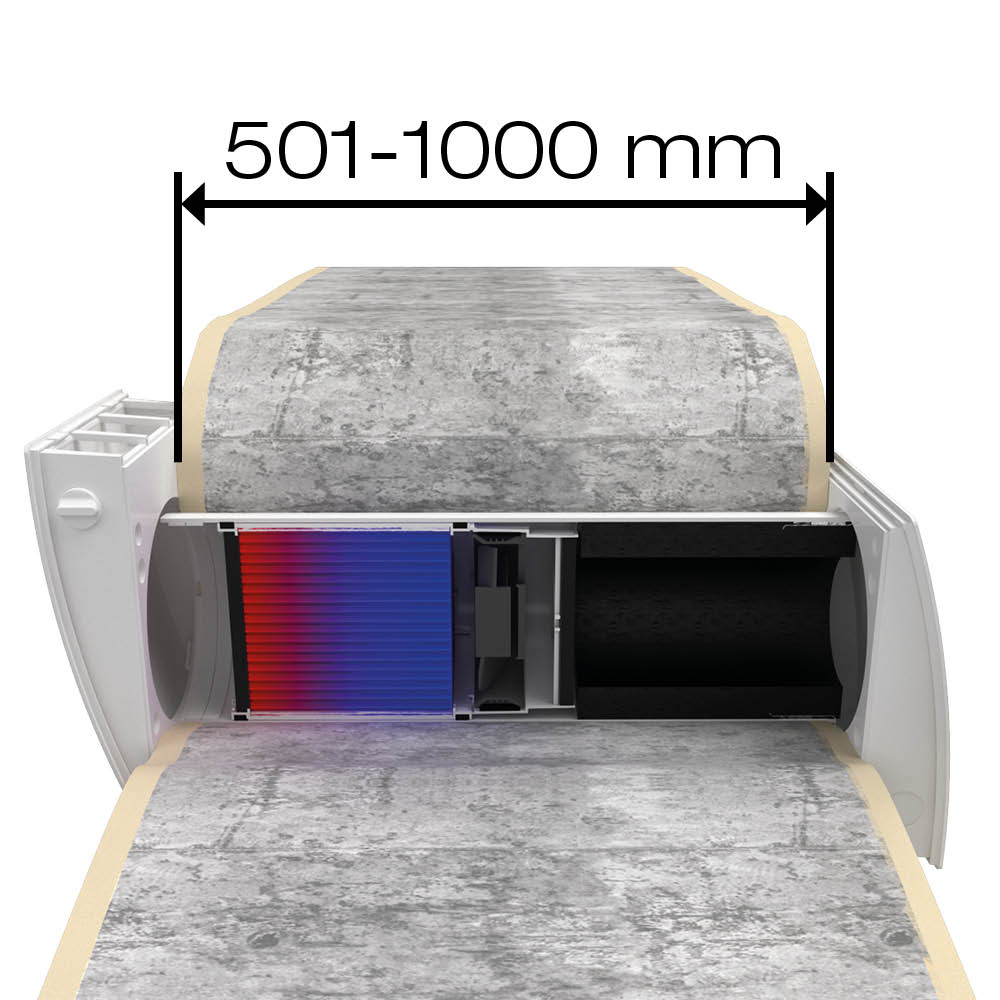

The unit can run in either ventilation or heat recovery mode. In ventilation mode, the unit will ventilate one way depending on the unit's settings. In heat recovery mode, the unit extracts the air from the home for 70 seconds, where the heat from the exhaust air is stored in the frame. The motor then reverses and blows in for 70 seconds, where the supply air is heated by the stored heat in the core.

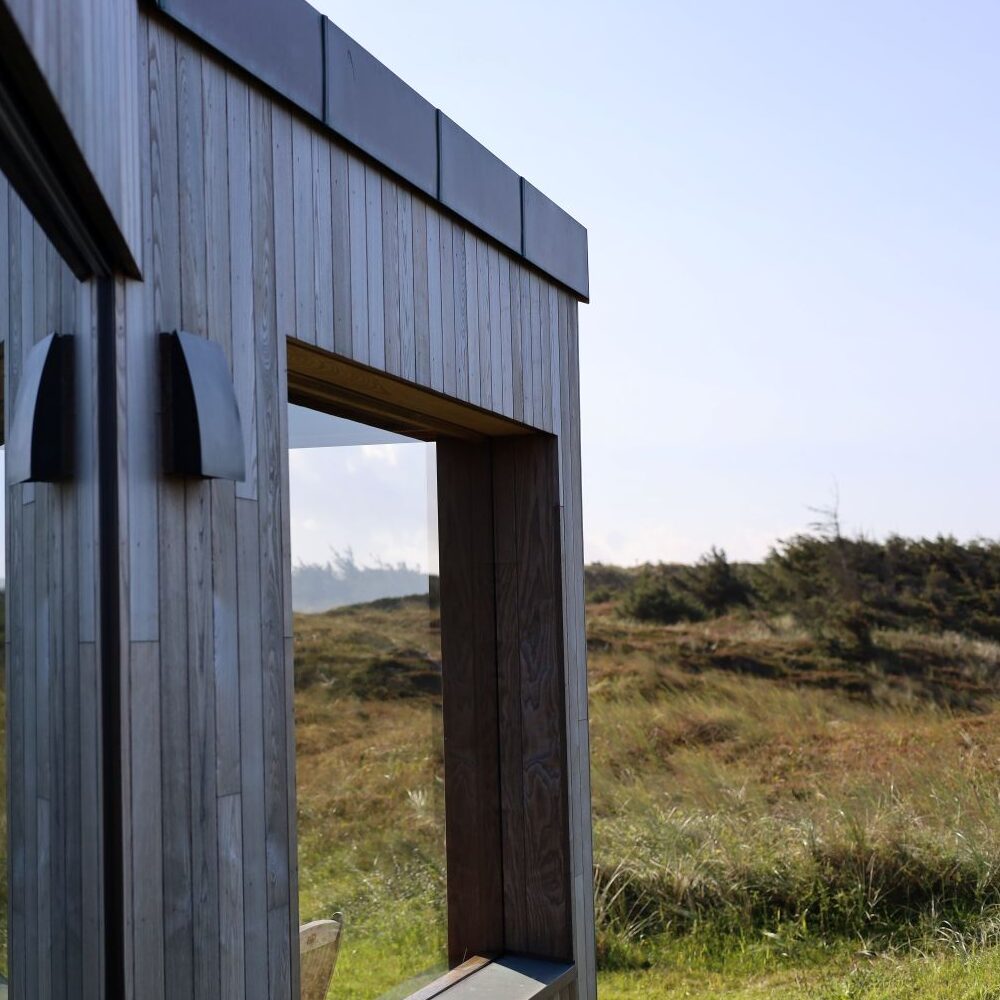

Ideal for holiday homes, annexes and allotments

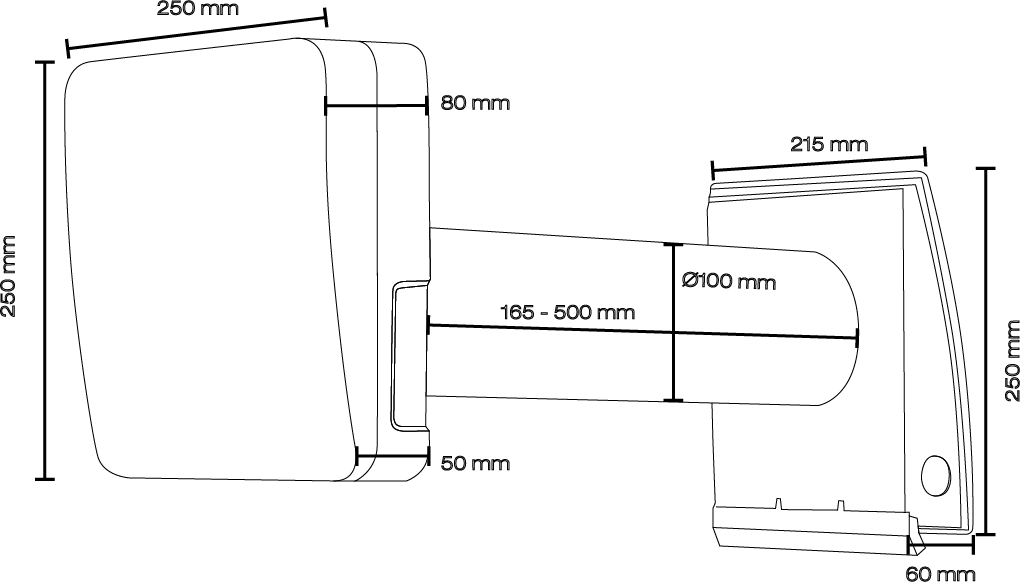

The DUKA One S4 has a pipe diameter of 100 mm, making the unit ideal for bringing up a Ø105 mm or 150 x 150 mm fresh air valve for a heat recovery solution. The core of the DUKA One S4 Plus is 165 mm, making this unit ideal for holiday homes where the walls are thinner than in year-round homes.

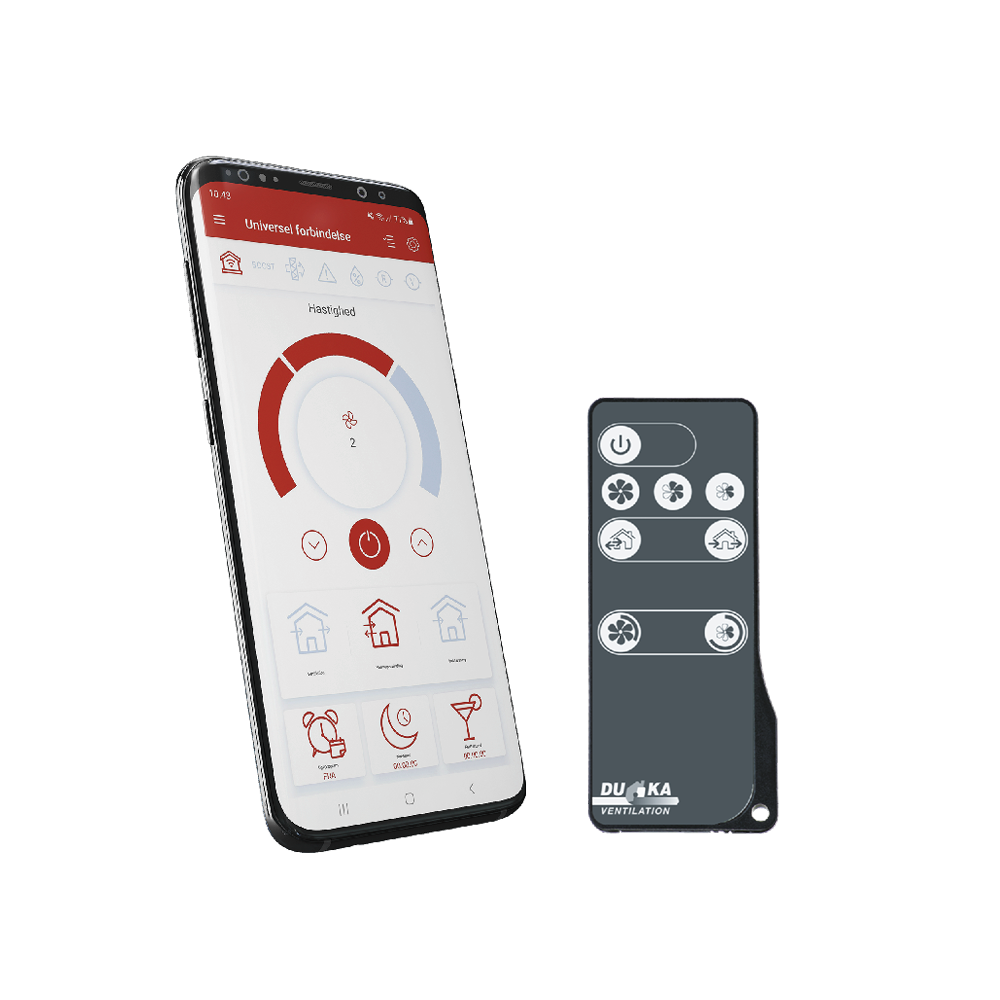

Wi-Fi management

With the DUKA One app, the devices can be easily operated. The DUKA One devices can be connected to the home's Wi-Fi and thus operated from the living room, bedroom, and kitchen. In the app, you can change the ventilation speed, enter a weekly schedule so that the ventilation is adapted to the home's rhythm, and activate the humidity sensor.

The Wi-Fi module also enables wireless pairing of multiple devices.

All-in-one solution including control, with easy connection

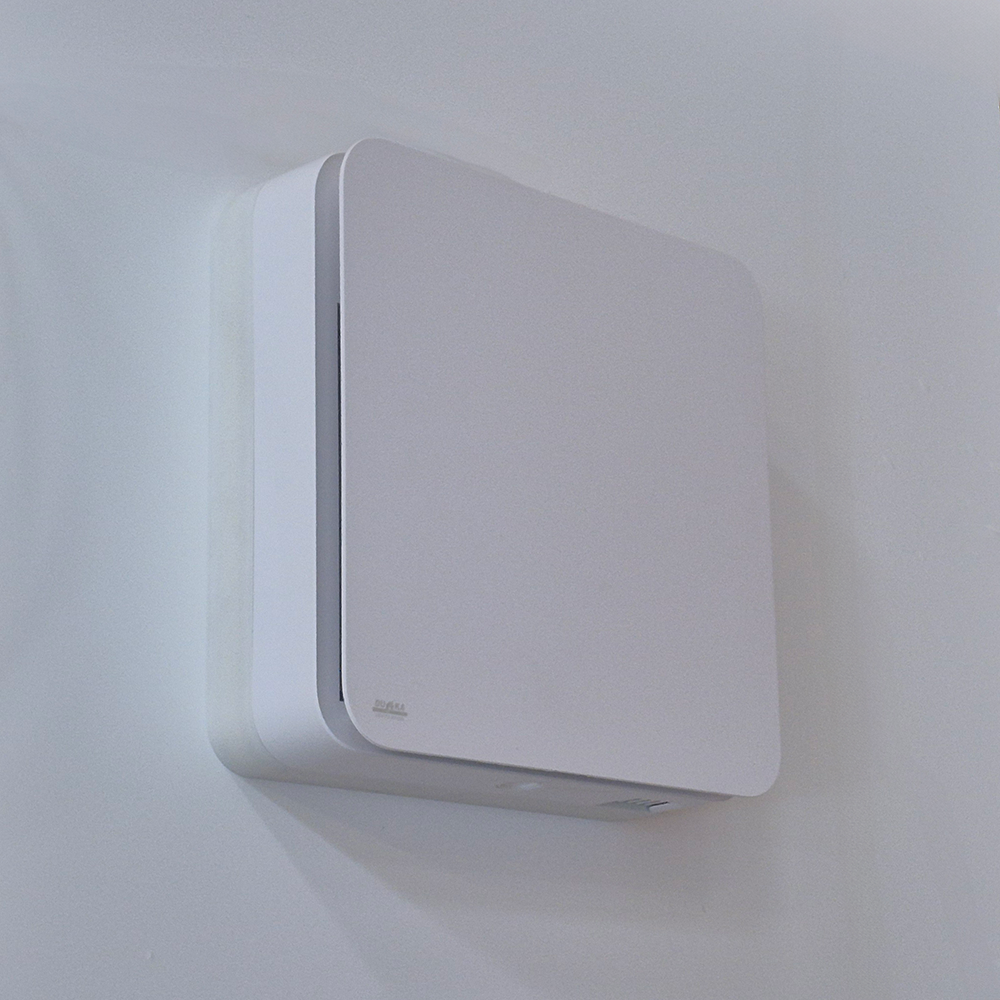

Comfort screen where the supply air is blown upwards, minimising drafts
Reduces radon, moisture and CO2
Efficient and energy-conscious ventilation without having to open doors and windows
Easy installation, as no ducting needs to be installed in the home

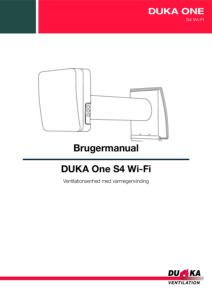

PDF Manual

Data sheet

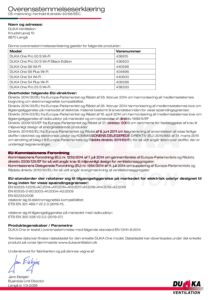

PDF Declaration of conformity

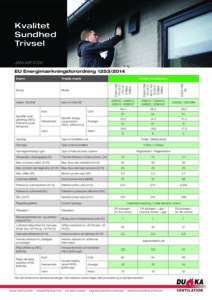

PDF Energy label

Device	Item no.	DB no.	Plumbing no.
Filter set - 1 set of 2 pcs.	350045	1850327	358889810

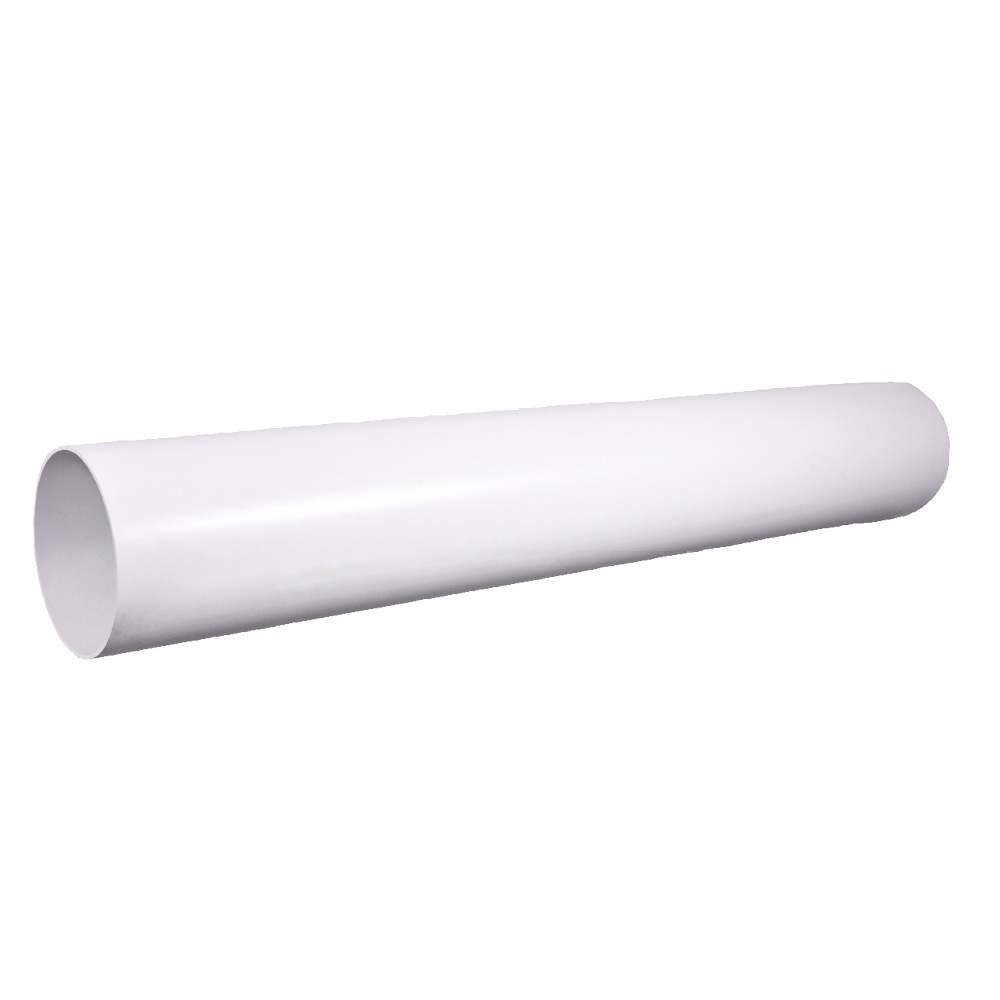

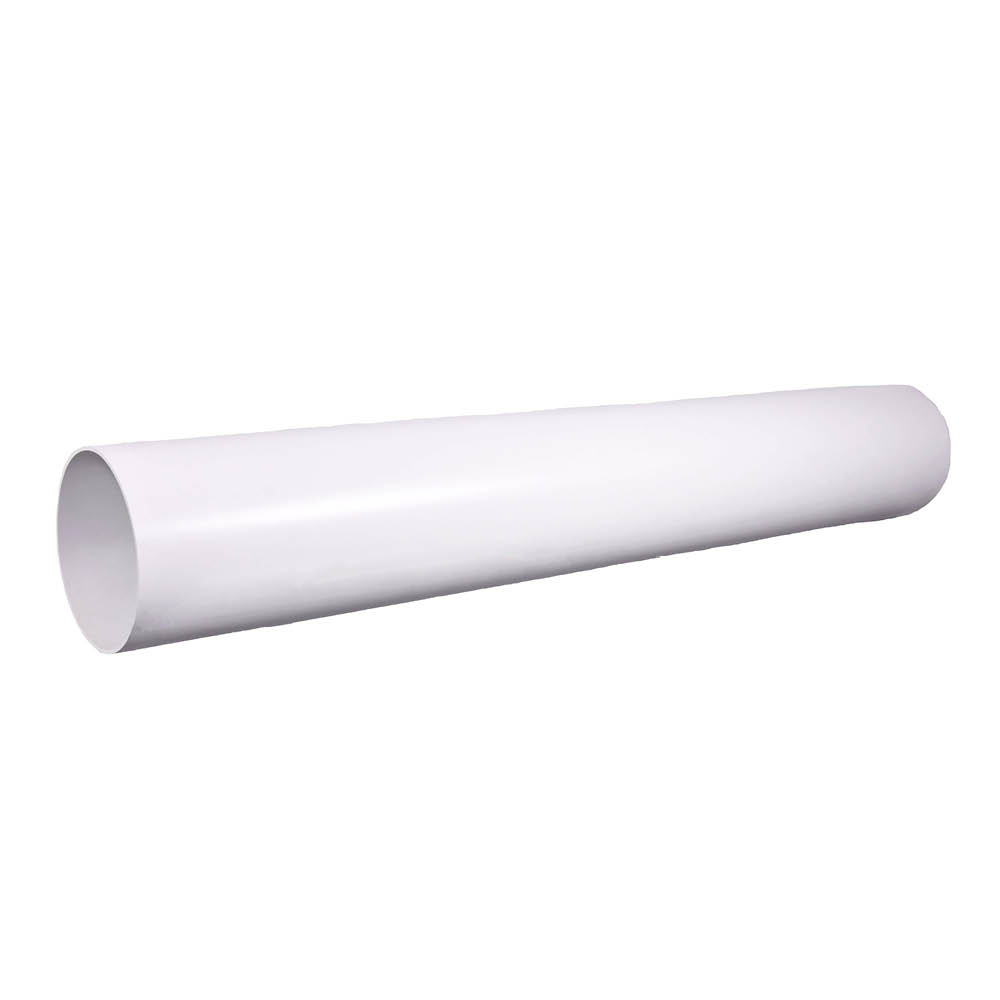

1000 mm pipe	359903	1887075	358879900

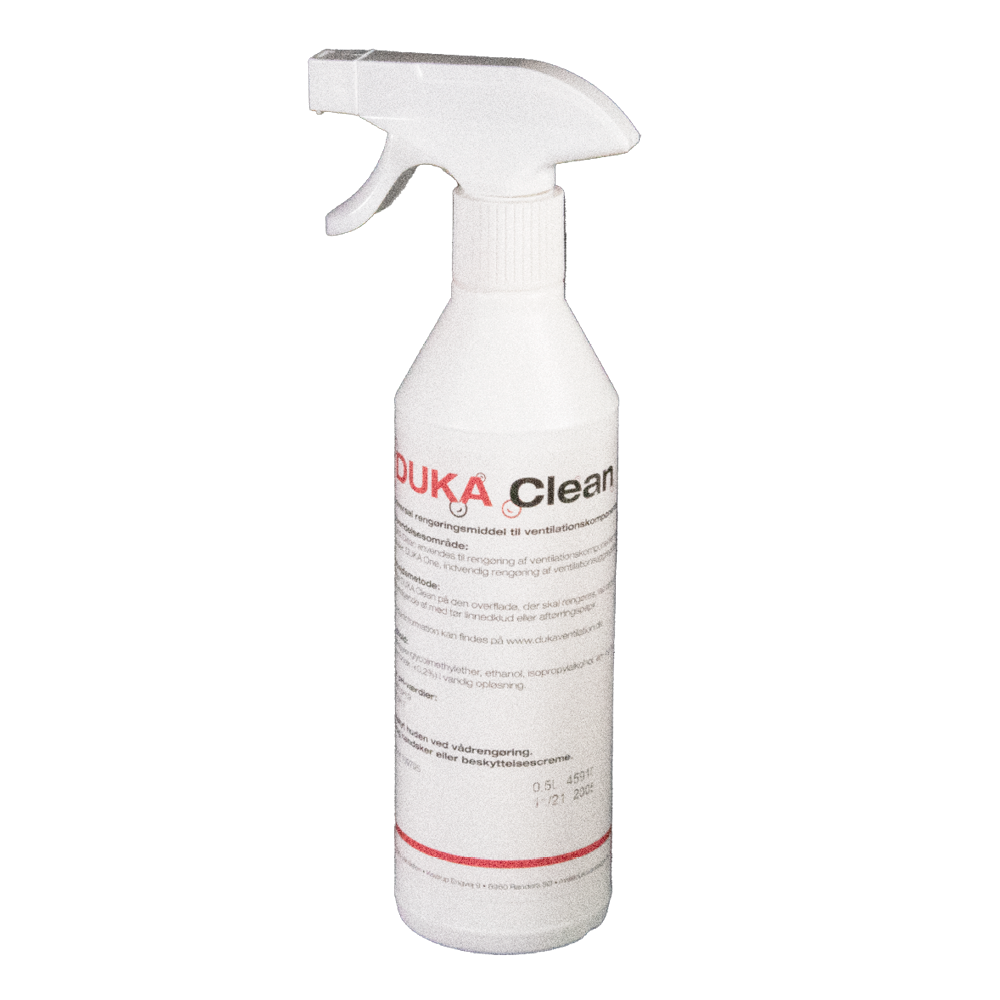

DUKA Clean	411858	2166265	358889905

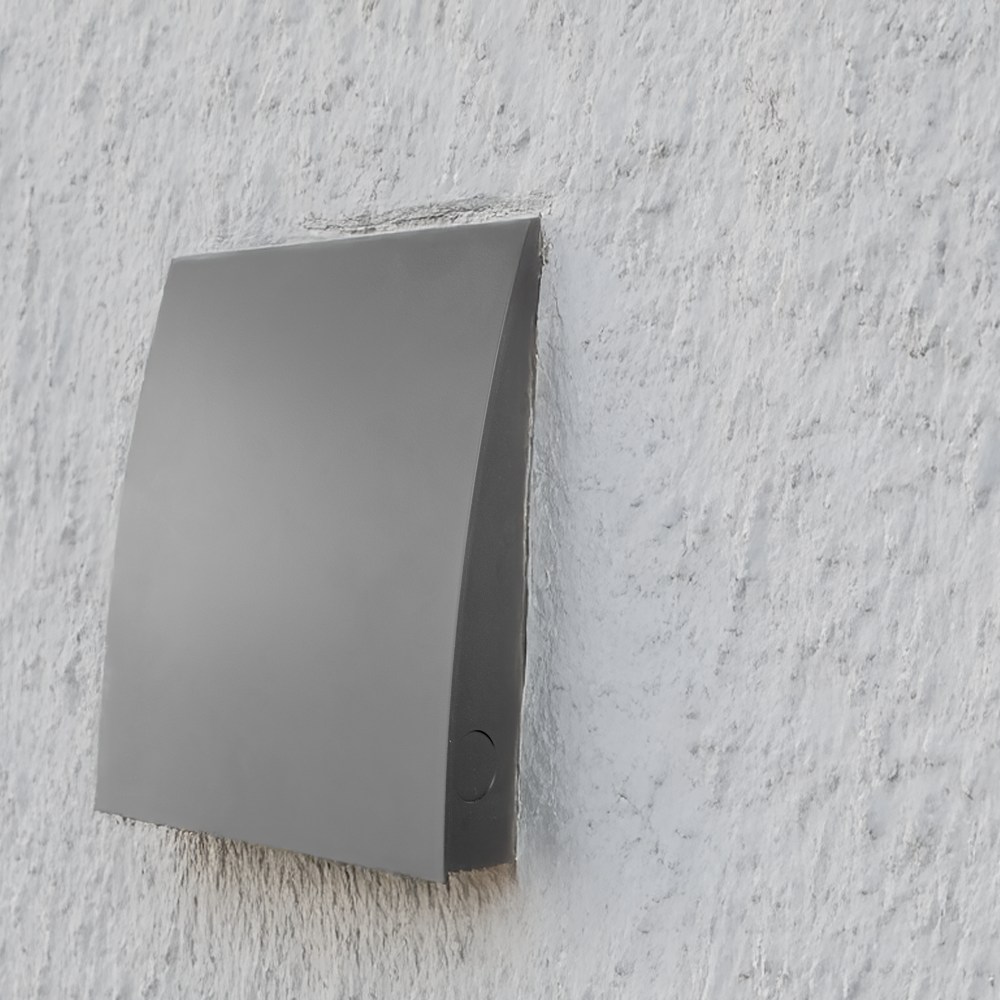

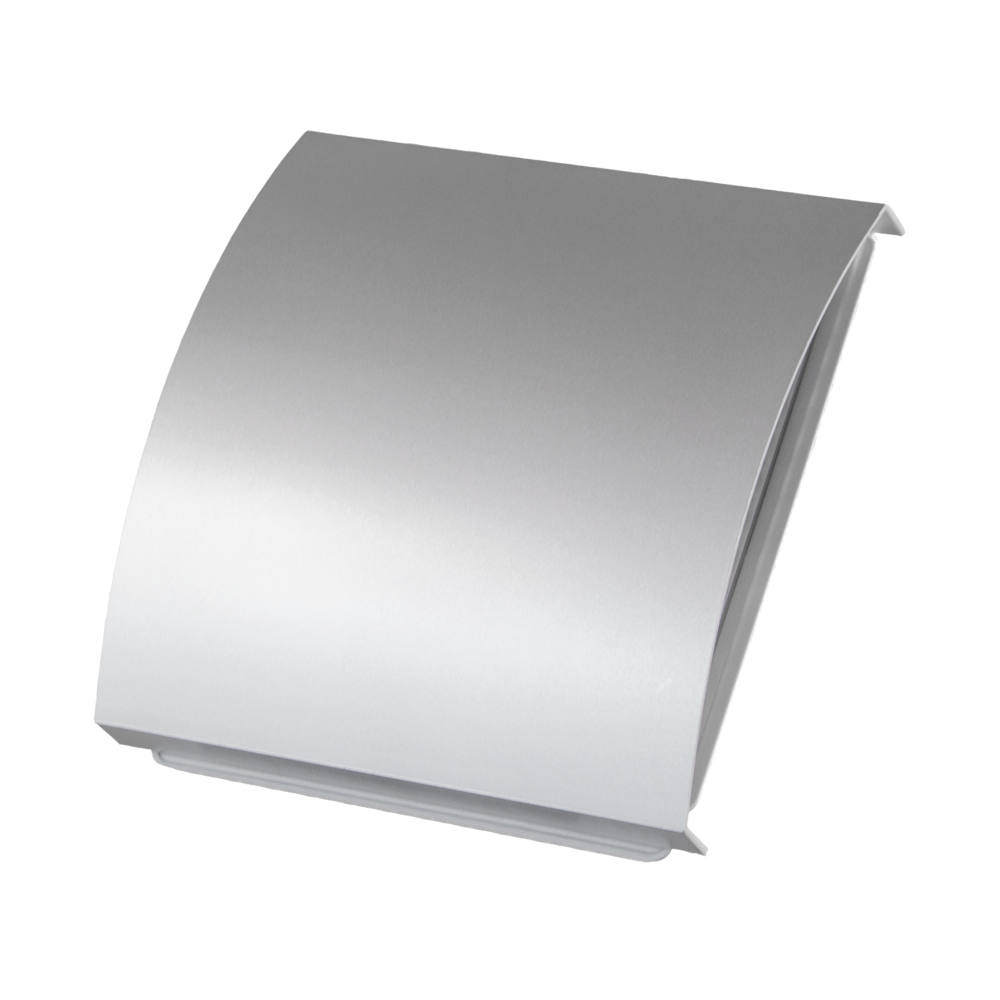

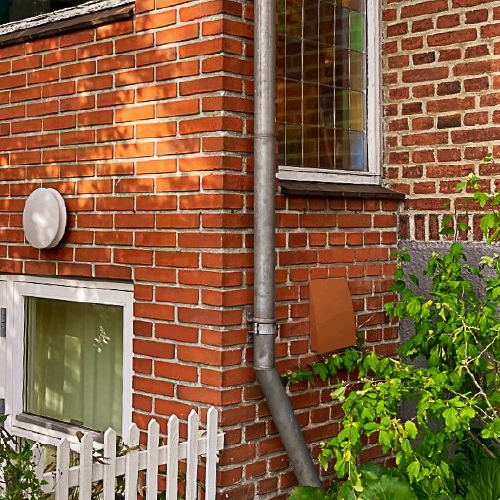

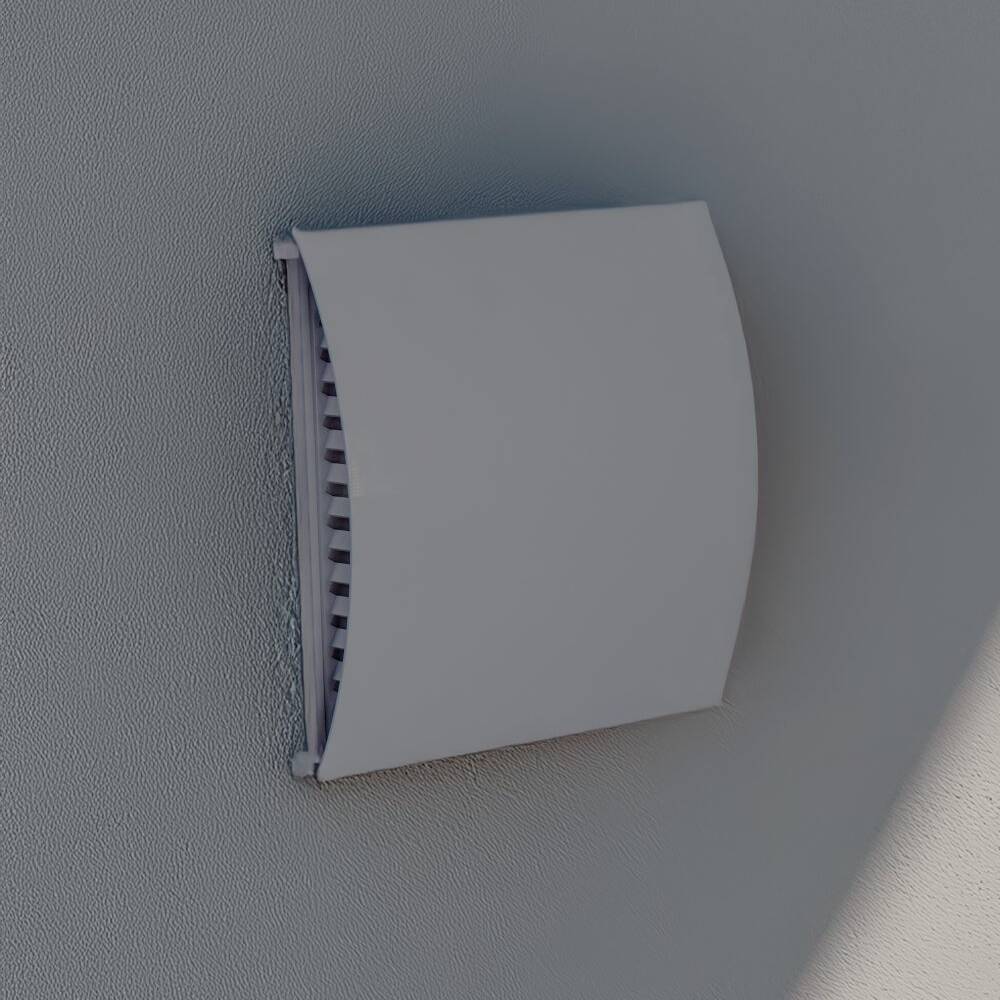

DO 30: Grey storm shield	382720	1995098	358877902

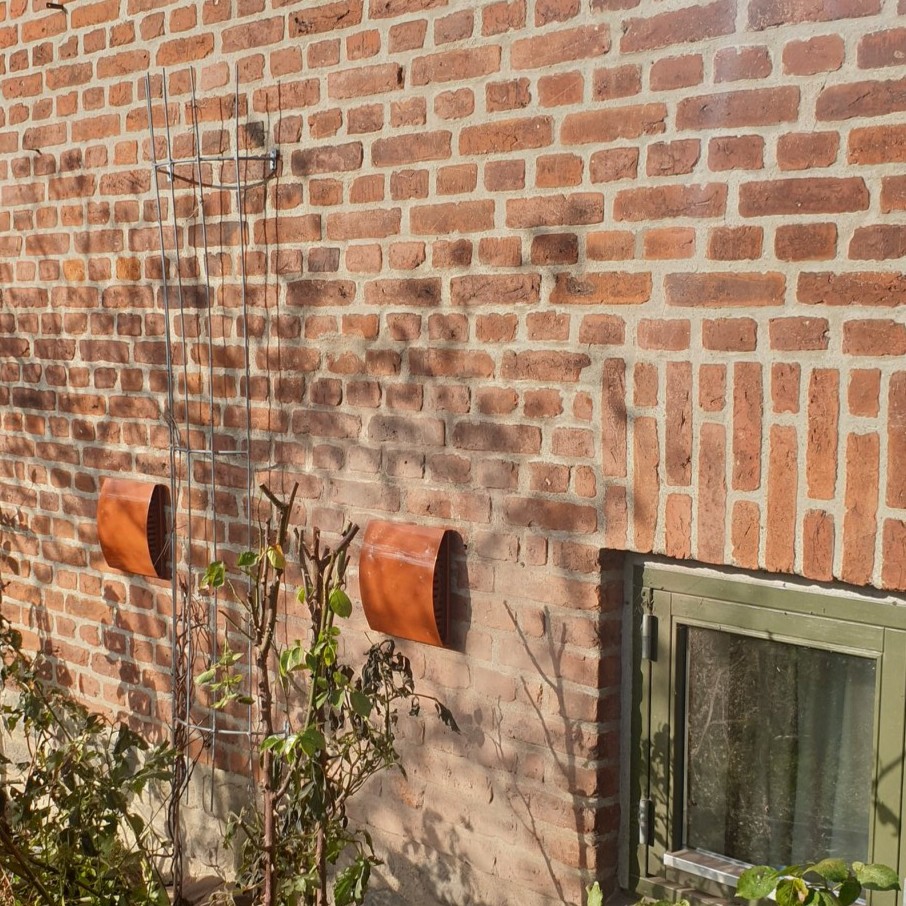

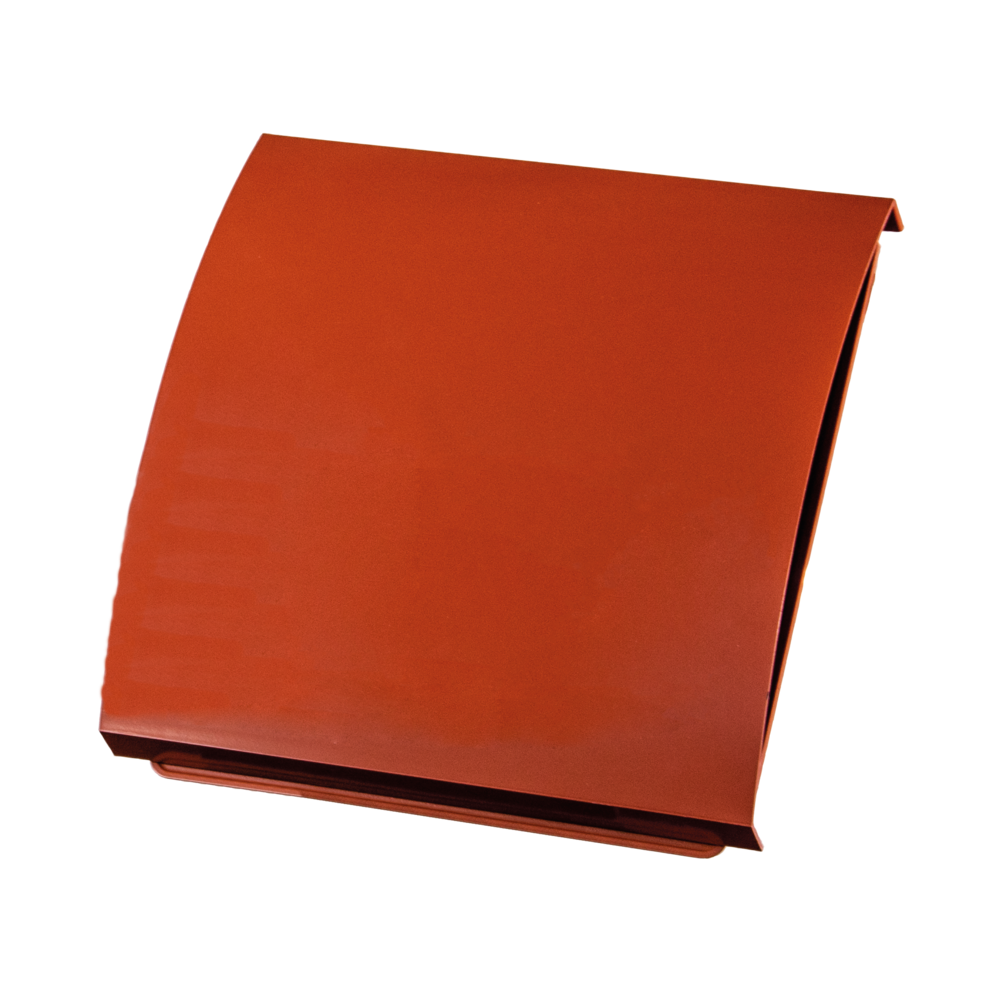

DO 30: Brick red storm shield	382719	1995096	358877905

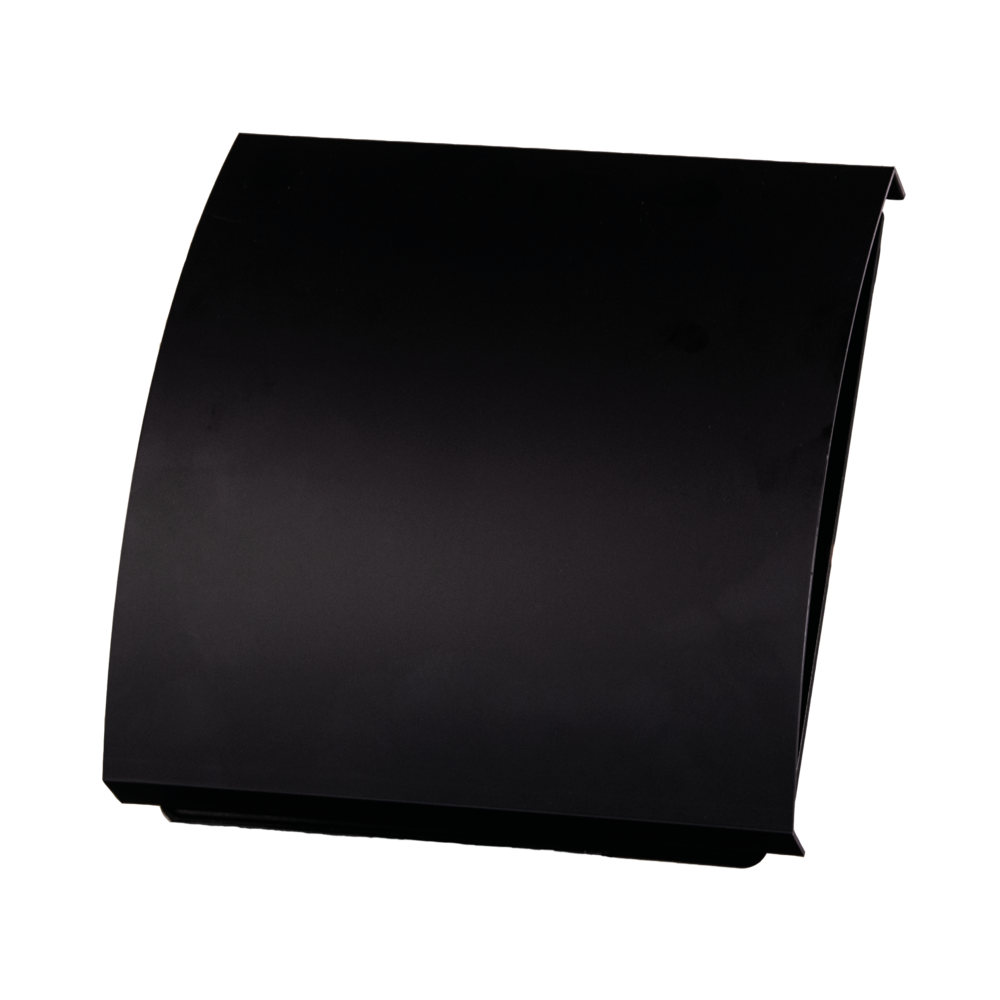

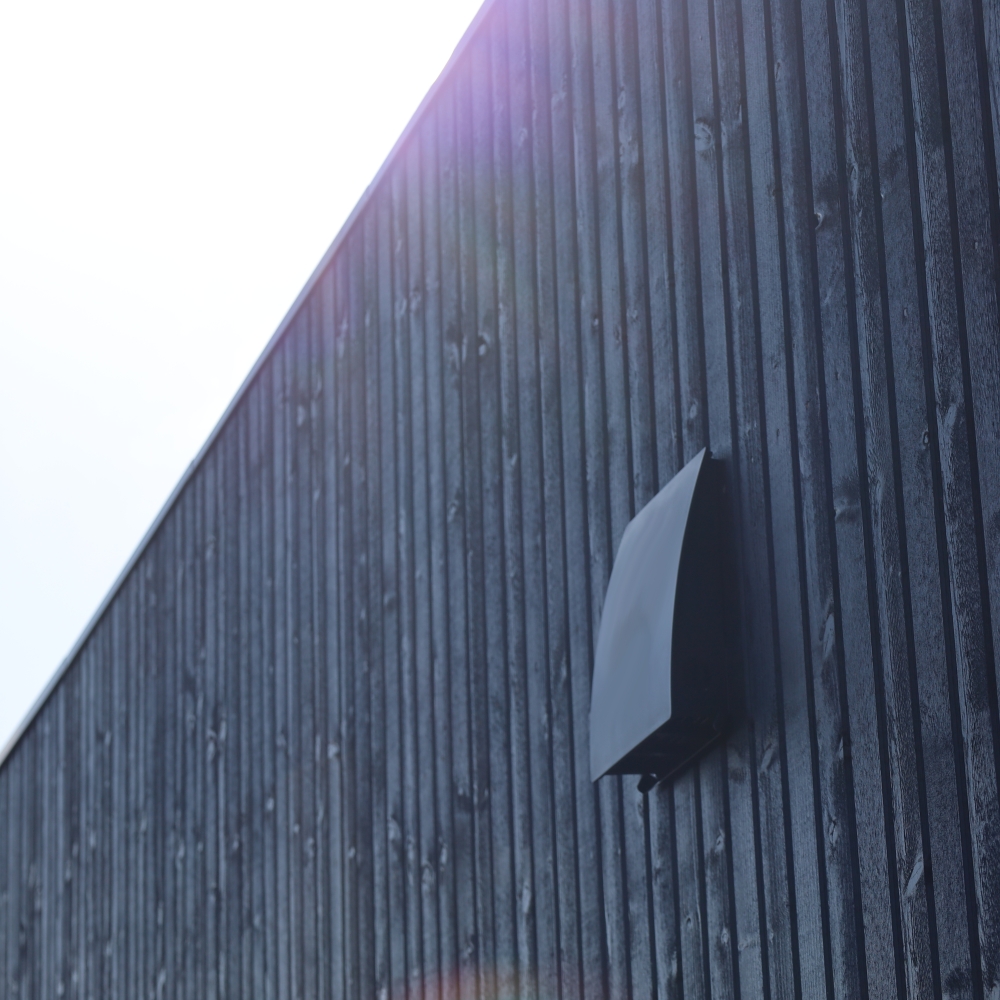

DO 30: Black storm shield	382718	1995093	358877901
