DUKA VillaVent Unit 690 Top Wi-Fi

Create a good indoor climate in your home with a 1TP1 dilation unit with a heat recovery rate up to 92%. With Wi-Fi and app control.

SKU 399247 Categories Ventilation units and accessories, Units.

DB number 2100678EAN 5708605014778

DUKA's VillaVent units are optimised to meet the latest technical requirements for a high heat recovery rate and very low power consumption.

The unit can be installed in the utility room or attic and with fixed or flexible pipes ensure a home where fresh air is constantly supplied and the heat extracted from humid rooms is recycled.

The unit delivers a free airflow of 690 m3/h and 430 m3/h at 70 Pa and can be used in homes up to 380 m3/h. The unit is universal, where the back and front plates can be swapped, making installation easier.

The unit is with top connection.

The unit has a by-pass damper that provides a cooling effect in summer, as the exhaust air is bypassed by the counterflow exchanger and the supply air is not further heated.

The device is additionally supplied with:

Wi-Fi operation
Universal enclosure
Including dirt filters
With low-energy EC motor.
Heat recovery rate up to 92%.
Complies with the requirements of applicable building regulations.

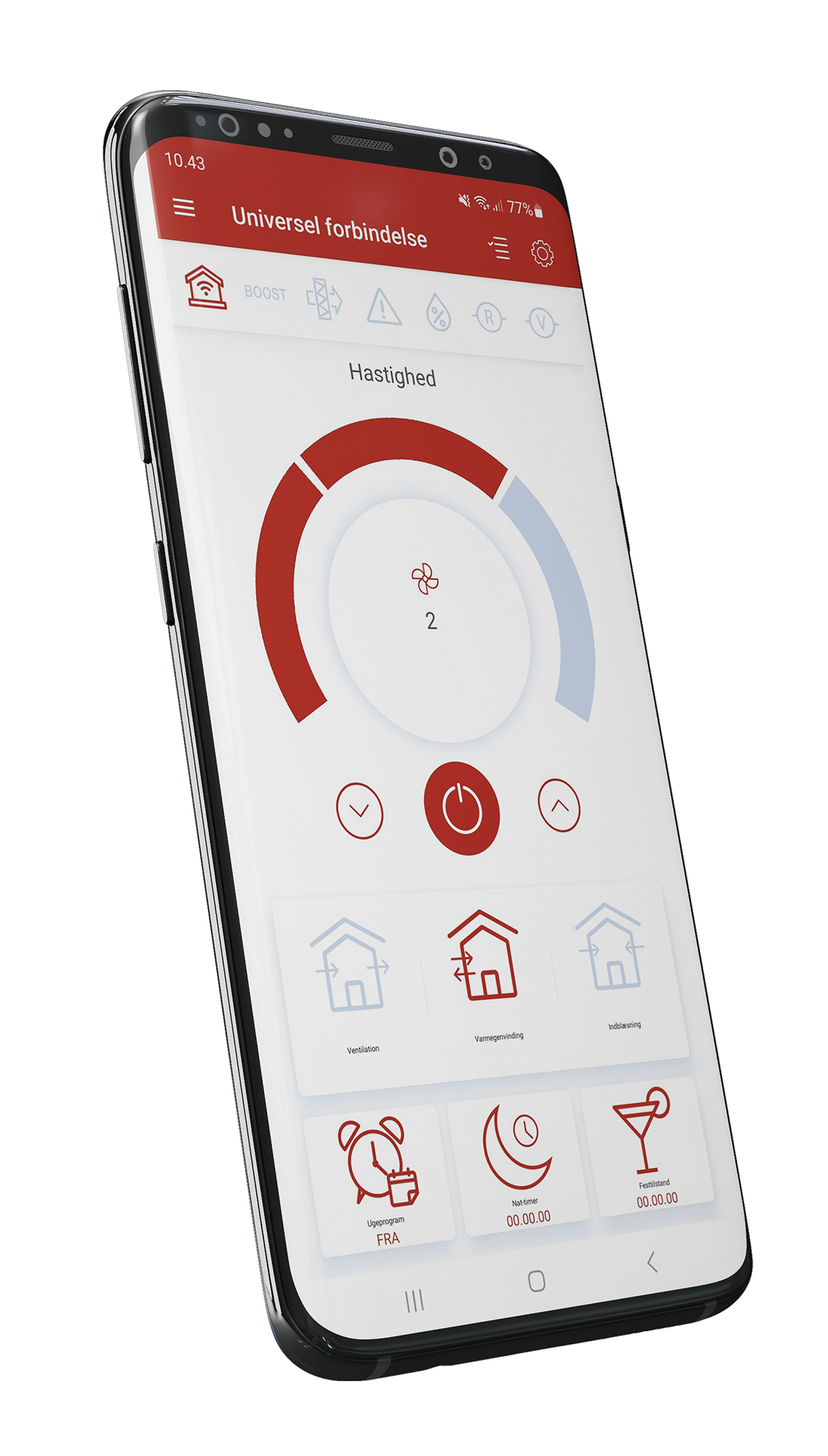

App control of Aggregat 690 Top Wi-Fi

With the DUKA Smart App, the unit can be easily operated. The unit can be connected to the home's Wi-Fi and can be controlled from the living room, bedroom and kitchen. In the app, you can change the ventilation speed, enter a weekly schedule to adjust the ventilation to the rhythm of the home, and regulate the air volumes of the different ventilation speeds can be easily adjusted in the app's advanced menu and many other functions.

Control panel for Villa Ventilation units

A control panel is available as an option that makes operating the unit simple and easy. The control panel allows you to choose between three ventilation speeds, view filter alarms and other alarms, and operate the bypass.

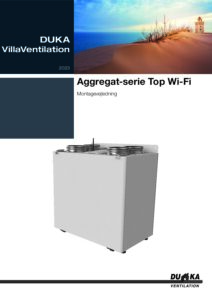

PDF Manual

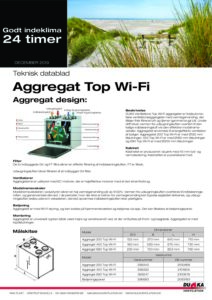

PDF Data sheet

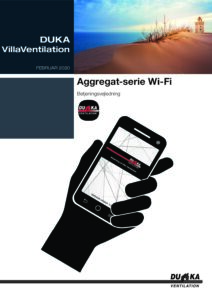

PDF Panel and mobile control

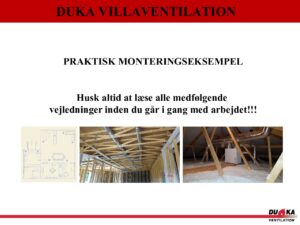

PDF Mounting example

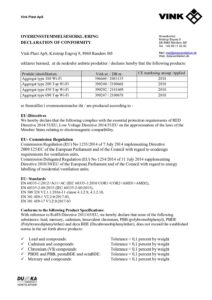

PDF Declaration of conformity

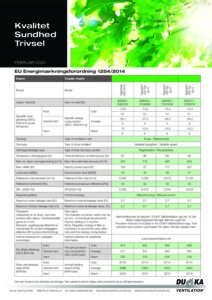

PDF Energy labelling

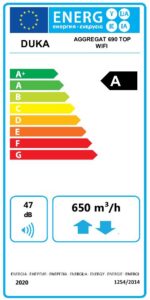

PDF Energy label

Item number

Device	Item no.	DB no.
Power Pack 690 Top Wi-Fi	399247	2100678

Part numbers accessories

Device	Item no.	DB no.	Plumbing no.
G4 Dust filter	340525	1809551
F7 Pollen filter	340526	1809557
Water trap	334218	1729205	358891932
Moisture sensor	340349	1808757	358891990
Metal silencer DSLU	116425	1880798
Flex silencer	337608	1797811
Control panel	396683	2083193

VillaVent Wi-Fi

A home with fresh, well-ventilated air around the clock

Many buildings today are so well insulated and sealed that they can't breathe. This comes at a price in the form of indoor climate problems caused by humid and polluted air. People spend an average of 90% of the day indoors - that's over 20 hours - so it's incredibly important to ensure a good indoor climate, which you can do with a Villa Ventilation unit from DUKA.

Sizing of aggregates

There are two requirements in the building regulations for dimensioning a ventilation unit;
The 1st requirement depends on the size of the home, with a minimum requirement of 0.3 l/s per square metre of living space.
2nd requirement depends on the number of wet rooms in the home.

The value that is greater according to the two calculations above is the min. ventilation requirement.

Capacity and heat recovery rate (VGV) according to BR 18 requirements and 70 Pa in system back pressure.

Units	Connection	Capacity	Heat recovery rate	Area	Capacity free blowing
VillaVent 90 L	Ø100 / Ø125 mm	28 l/s	82-94 %	90 square metres	130 l/s
Genin 90 L	Ø100 / Ø125 mm	28 l/s	73-88 %	90 square metres	130 l/s
Power Pack 380 Wi-Fi	Ø160 mm	60 l/s	87%	200 square metres	105 l/s
Power Pack 200 Top Wi-Fi	Ø125 mm	44 l/s	86 %	130 square metres	55 l/s
Power Pack 450 Top Wi-Fi	Ø160 mm	78 l/s	86%	260 square metres	125 l/s
Power Pack 690 Top Wi-Fi	Ø200 mm	120 l/s	86 %	380 square metres	191 l/s

Wet room minimum requirements

Rum	Air volume
Kitchen facilities	20 l/s
Bathroom	15 l/s
Utility room	10 l/s
Separate WC	10 l/s

For example, a 170 square metre home with a kitchen, utility room and two bathrooms:
1st requirement according to dwelling size: 51 l/s (170 * 0.3)
2nd wet room requirement: 60 l/s (20+10+15+15)

This is where the wet room requirement is greatest. This means that this dwelling must have a ventilation unit with a capacity of min. 60 l/s.

Specific space requirements can be found in building regulations.
