DUKA Genin 90 L Unit
Create a healthy indoor climate in your home with a DUKA Genin unit. Heat recovery and stable humidity level. The unit is made of EPP - a lightweight material that also provides benefits such as extra heat and sound insulation.
Efficient and energy-conscious lightweight residential ventilation solution

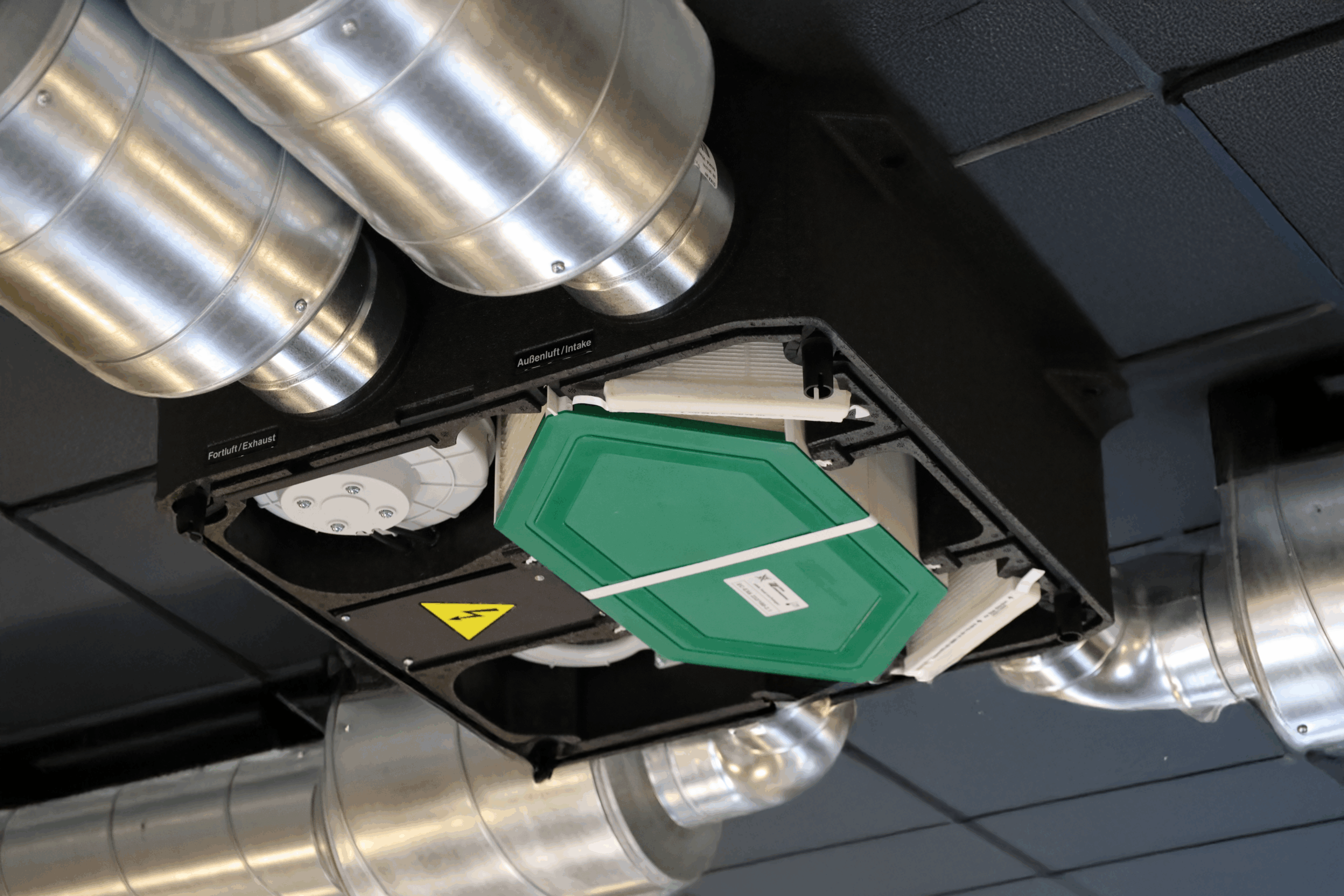

Ventilation unit with heat recovery for use in all types of homes, providing a good indoor climate with fresh air. The unit is for ceiling installation.
The unit delivers a free airflow of 130 m3/h and 43-97 m3/h at 70 Pa and can be used in homes up to 90 m3/h.
The unit has a by-pass damper that provides a cooling effect in summer, as the exhaust air is bypassed by the counterflow exchanger and the supply air is not further heated.
The device is additionally supplied with:
- Control panel
- Lightweight enclosure
- Including G4 filters
- With low-energy EC motor.
- Heat recovery rate up to 94%.
- Complies with the requirements of applicable building regulations.

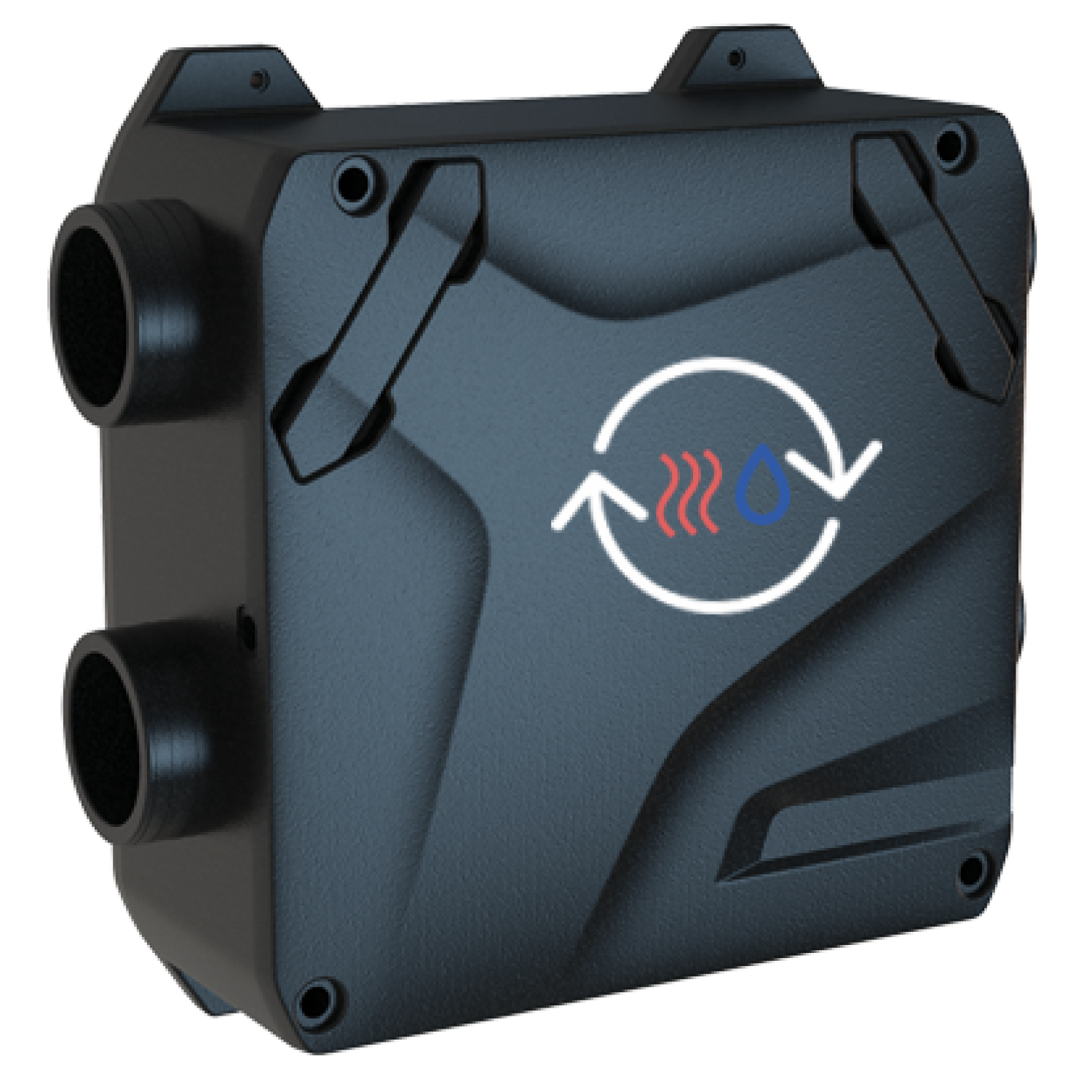

Genin 90 L with energy recovery
The 90L also comes in an energy recovery model, where you reach new indoor climate heights with the smart recovery technology that not only recovers heat but also moisture.
During the winter months, it provides a more comfortable supply air that is not too dry. When the indoor climate becomes too dry, the risk of dry and irritating mucous membranes and eyes, increased static electricity and the risk of drying out wood in the home is higher.
During the summer months, some of the moisture is drawn out of the supply air, making it feel slightly cooler and therefore more comfortable.

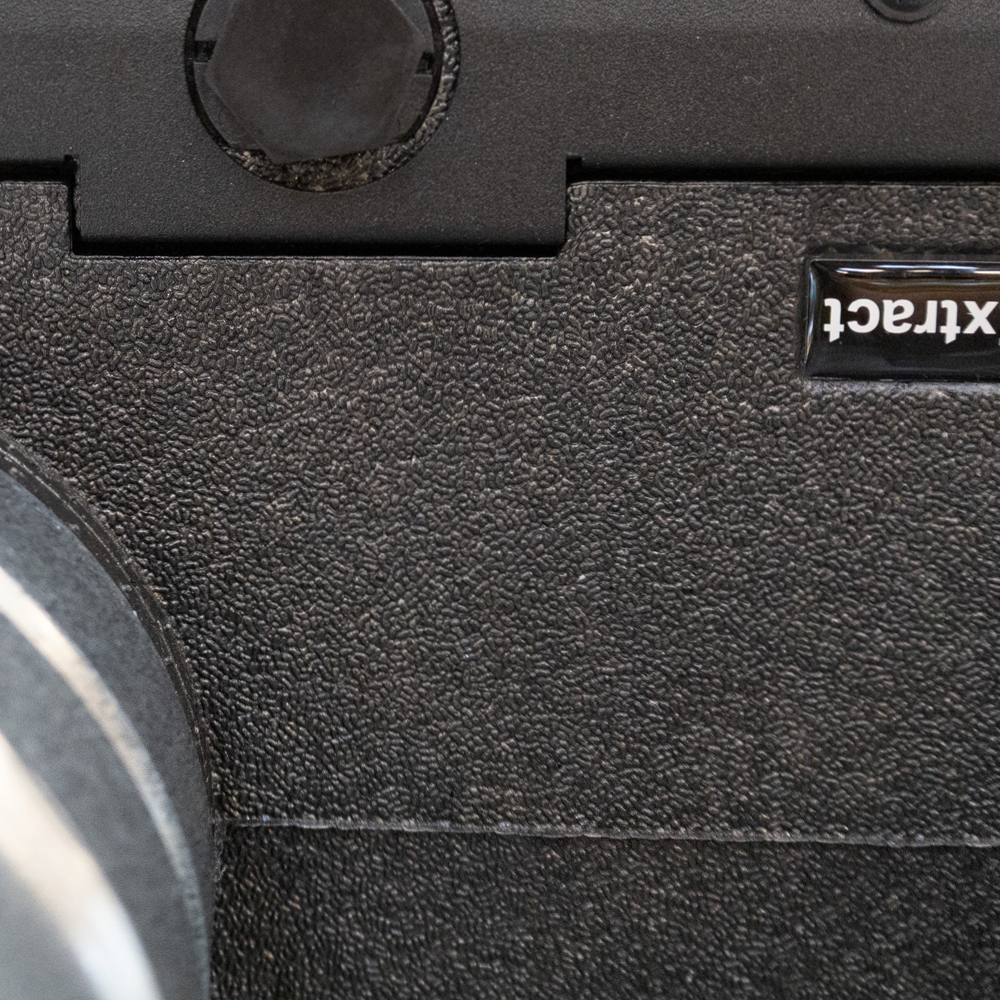

The enclosure of the unit is made of expanded poly propylene (EPP), which offers a wide range of benefits. EPP is a lightweight material and units weigh only 8kg, making installation much easier as the unit is more manageable than a unit in a metal cabinet.
In addition, EPP absorbs energy, making it very durable and resistant to impact. It is also highly sound-absorbing and has good thermal insulation properties, resulting in a unit with better sound attenuation and thermal insulation.

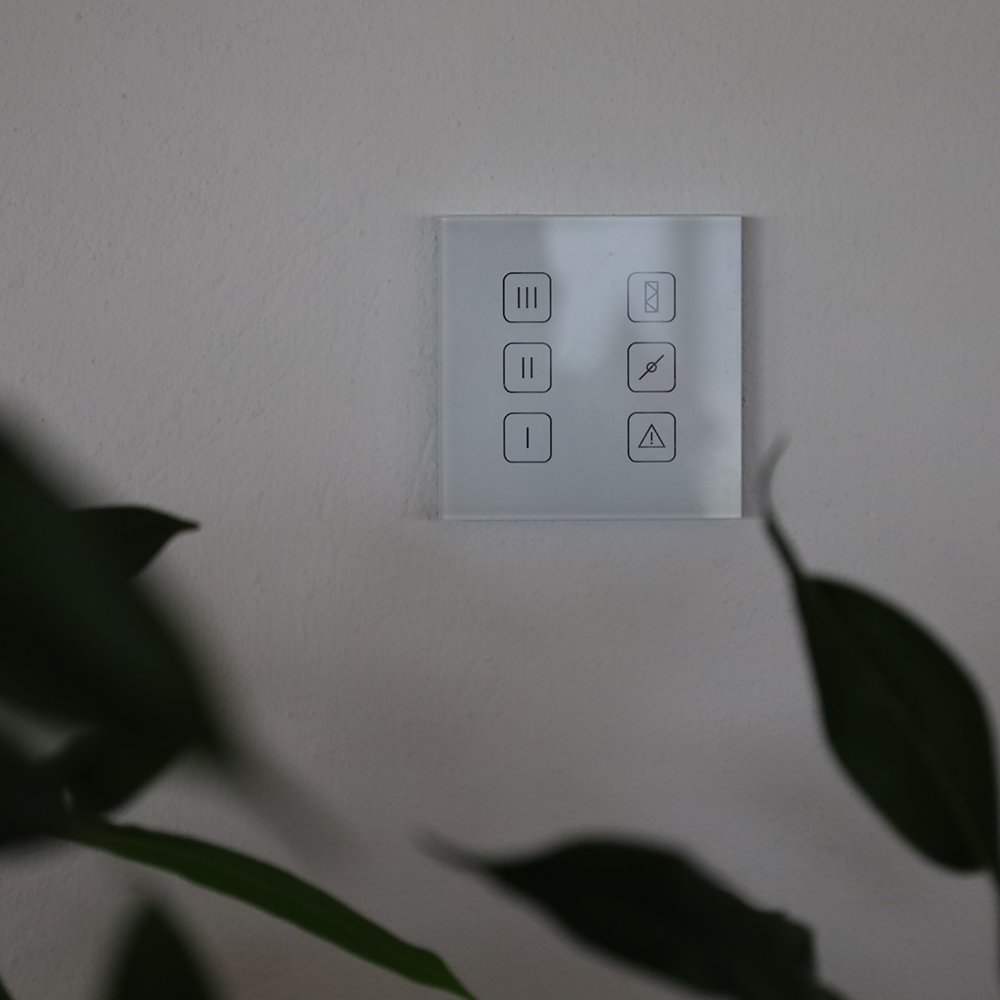

Control panel
DUKA VillaVent comes with a control panel for easy operation of the unit. On the control panel you can choose between three ventilation speeds, see filter alarm, other alarms and activation of bypass.
DUKA Genin 90 L anlæg i Thy
“En af de største ændringer i renoveringen af vores hjem er indeklimaet. Vi har fået nyt tag, efterisoleret og tættet huset med nye fuger. En stor forskel har været at få installeret Duka’s Genin anlæg i vores kælder. Vi har nemlig været generet af fugtig kælder, fugtig og kold lugt, kondens på ruderne dernede og ikke mindst udtræk på væggene. MEN nu er det 2 måneder siden installering af anlægget, og det har været en kæmpe ændring i klimaet dernede – luften virker varmere, lugtgenerne er ikke det første, man møder i entréen længere, og generelt virker der langt mere tørt, selvom vi er i årets vådeste og koldeste sæson.
Installationen af @dukaventilation fik vi hjælp til, men er man lidt ferm med værktøj og at bore gennem beton/mursten, så kan man godt selv. Den er blot plugget til almindelig strømstik og strømforbruget er minimalt.
Kæmpe anbefaling til jer derude, der kæmpe med kolde kældre eller fugtige rum – specielt under terræn”
Johanne @femte.til.venstre
Item number
Device | Item no. | DB no. | Plumbing no. |
DUKA Genin 90 L | 440521 | 2503138 | 358891490 |
Part numbers accessories
Device | Item no. | DB no. | Plumbing no. |
G4 Dust filter | |||
F7 Pollen filter | |||
Water trap | 334218 | 1729205 | 358891932 |
Moisture sensor | 340349 | 1808757 | 358891990 |
Metal silencer DSLU | 116425 | 1880798 | |
Flex silencer | 337608 | 1797811 |
A home with fresh, well-ventilated air around the clock
Many buildings today are so well insulated and sealed that they can't breathe. This comes at a price in the form of indoor climate problems caused by humid and polluted air. People spend an average of 90% of the day indoors - that's over 20 hours - so it's incredibly important to ensure a good indoor climate, which you can do with a Villa Ventilation unit from DUKA.
Sizing of aggregates
There are two requirements in the building regulations for dimensioning a ventilation unit;
The 1st requirement depends on the size of the home, with a minimum requirement of 0.3 l/s per square metre of living space.
2nd requirement depends on the number of wet rooms in the home.
The value that is greater according to the two calculations above is the min. ventilation requirement.
Capacity and heat recovery rate (VGV) according to BR 18 requirements and 70 Pa in system back pressure.
Units | Connection | Capacity | Heat recovery rate | Area | Capacity free blowing |
VillaVent 90 L | Ø100 / Ø125 mm | 28 l/s | 82-94 % | 90 square metres | 130 l/s |
Genin 90 L | Ø100 / Ø125 mm | 28 l/s | 73-88 % | 90 square metres | 130 l/s |
Power Pack 380 Wi-Fi | Ø160 mm | 60 l/s | 87% | 200 square metres | 105 l/s |
Power Pack 200 Top Wi-Fi | Ø125 mm | 44 l/s | 86 % | 130 square metres | 55 l/s |
Power Pack 450 Top Wi-Fi | Ø160 mm | 78 l/s | 86% | 260 square metres | 125 l/s |
Power Pack 690 Top Wi-Fi | Ø200 mm | 1808757 | 86 % | 380 square metres | 191 l/s |
Wet room minimum requirements
Rum | Air volume |
Kitchen facilities | 20 l/s15 |
Bathroom | 15 l/s |
Utility room | 10 l/s |
Separate WC | 10 l/s |
For example, a 170 square metre home with a kitchen, utility room and two bathrooms:
1st requirement according to dwelling size: 51 l/s (170 * 0.3)
2nd wet room requirement: 60 l/s (20+10+15+15)
This is where the wet room requirement is greatest. This means that this dwelling must have a ventilation unit with a capacity of min. 60 l/s.
Specific space requirements can be found in building regulations.
