Inspection hatch Type IPL 300 x 600 mm

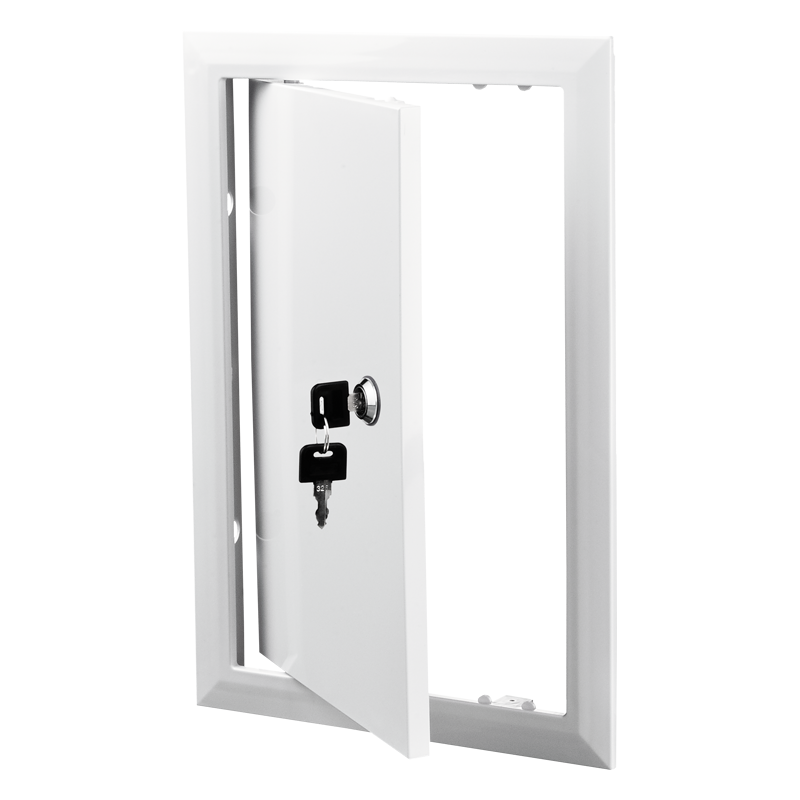

Plastic IPL inspection hatch 300×600 mm with key lock
Inspection hatch type IPL can be used both in the ceiling and on the wall. The inspection hatch ensures easy access to built-in installations / hidden pipework.
The inspection clamp can be installed with mortar or glue. It is possible to install the inspection clamp in areas with high humidity. DUKA does not recommend installation in areas where the inspection clamp may be exposed to water splashes, as it is not equipped with rubber gaskets, which means water can get through the cracks.
- Made of high quality ABS plastic.
- Universal bracket with left or right side opening.
- Equipped with a key lock.
Type | Item number | DB number | VVS number |
300 x 600 mm | 343842 | 1729386 | 46011240
|

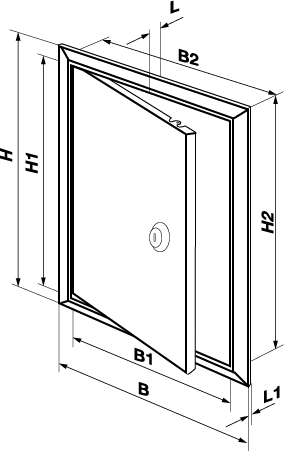

Size | H | B | H1 | B1 | H2 | L1 | L | B2 |
300 x 600mm | 617 mm | 317 mm | 573 mm | 273 mm | 597 mm | 5 mm | 25 mm | 297 mm |
