User manual
VKO L
Content
The box contains

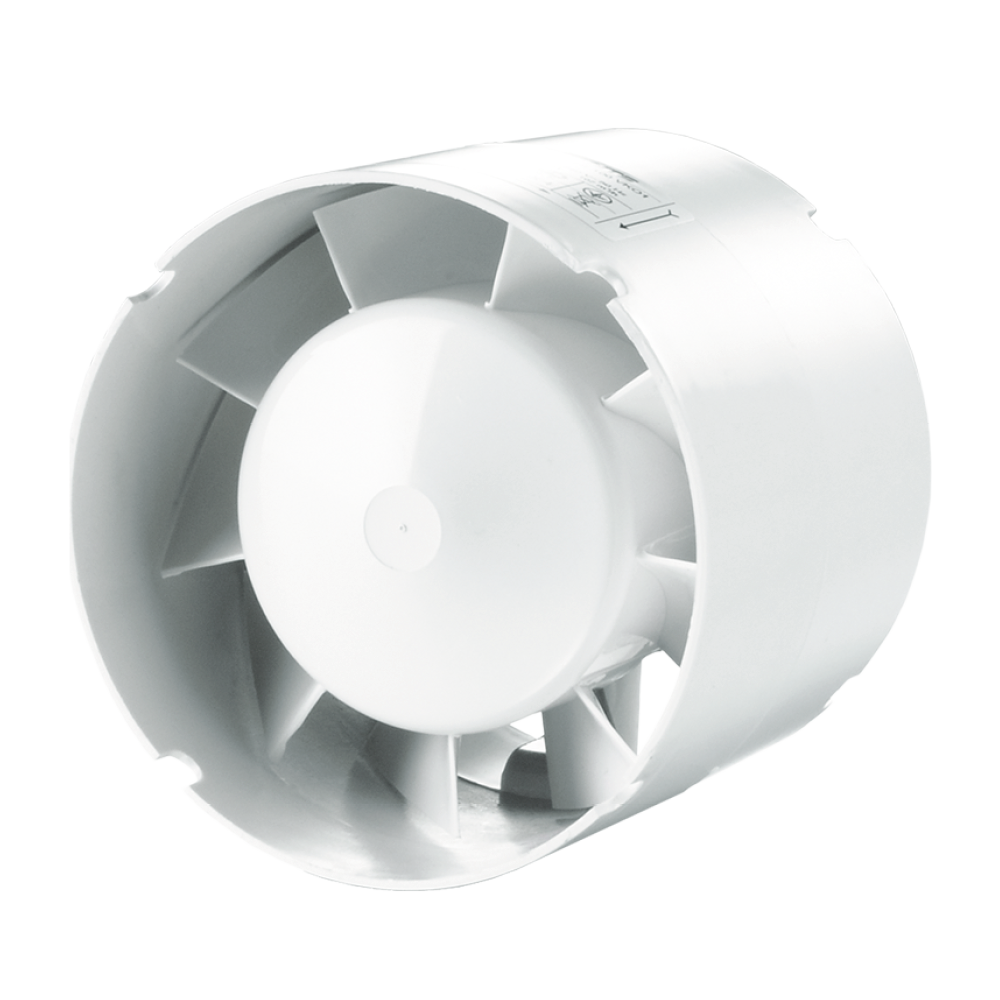

1 extractor fan
1 piece installation manual
Safety
All fans comply with the EU Low Voltage and EMC Directives as well as other EU norms and standards. Protection level in wet rooms:
IPX4 VKO series
1TP7 Electrical installations must always be carried out by a qualified electrician in accordance with the applicable regulations.
Fans installed in rooms exceeding 0-45° C, or in rooms with aggressive gases, are not permitted.
WARNING! Cleaning or other operations must not be carried out on the fan when it is in operation, as there is a risk of damaging the impeller.
Measures must be taken to prevent the backflow of gases into the room from other rooms containing gases.
Mounting
Important! Maintenance and connection work must only be carried out when the power is switched off. 1TP7 Electrical installation must always be carried out by a qualified electrician.
Wiring must only be carried out with at least 3 mm of stripped wire on all terminals.
Retning af luftstrømmen er angivet med pile på ventilatoren. VKO-serien monteres i ventilationskanaler fra begge ender og fastgøres. I tilfælde af at der ved montage af ventilatoren er mulighed for at få fingre i klemme i propellen, skal der tages modforanstaltninger for at undgå dette, evt. med udvendig rist, eller afskærmning.

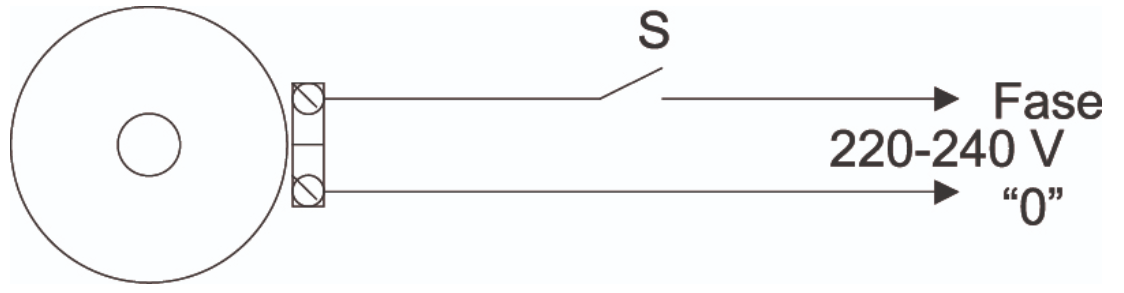

Det fremgår af el diagram, hvordan ventilatorer tilsluttes el.
For extractor fans without a switch, it is recommended to install an on/off switch on the fixed power supply.
Fjern herefter beskyttelseshætten. Før ledningen til strømforsyningen gennem hullet, udtag ledningen i længde af 7-8mm til tilslutningsklemmen og fastspænd med skruer. Fastgør ledningen ved hjælp af klemme . Sæt atter beskyttelseshætten.

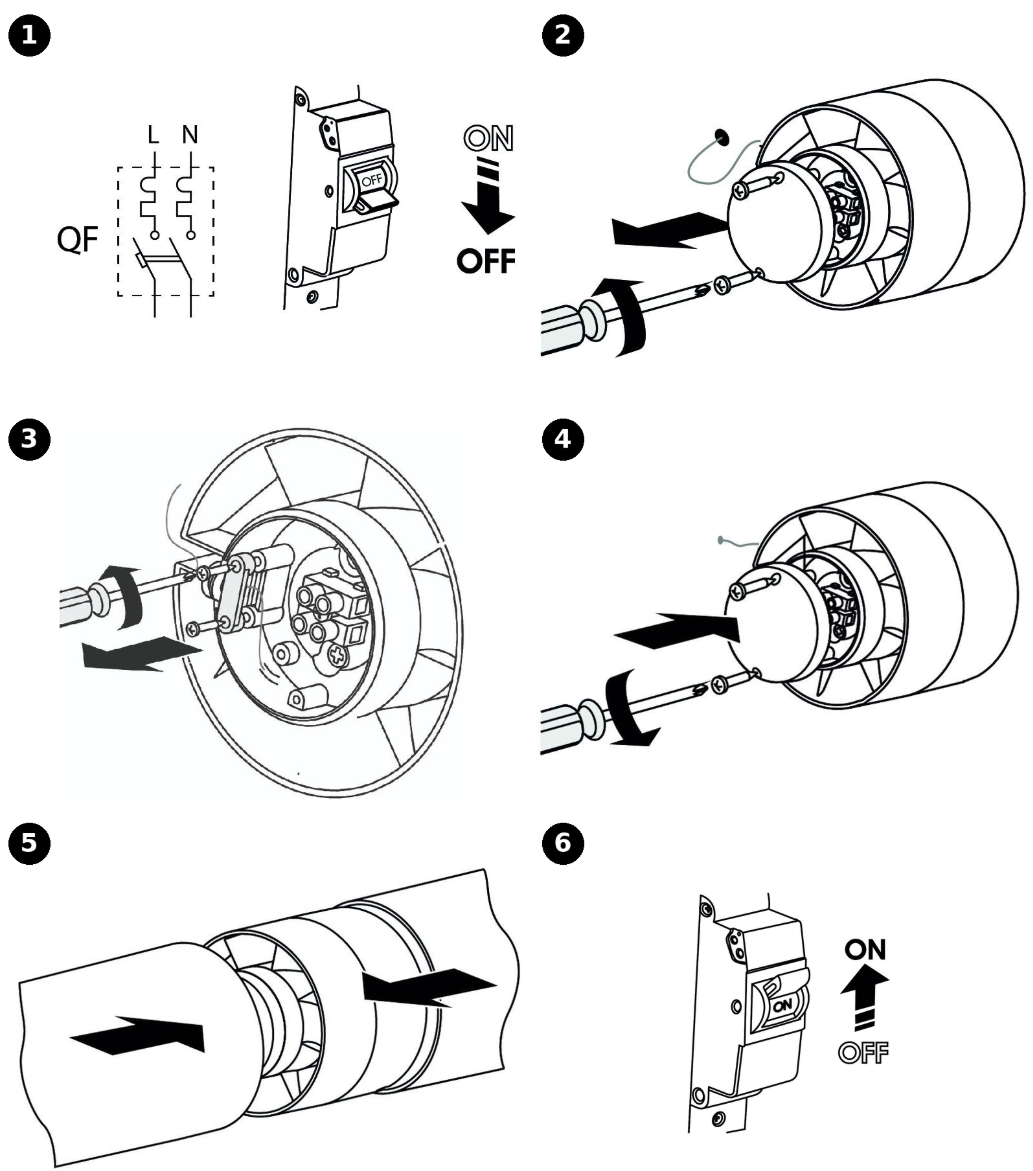

The order in which the fan must be connected:
Fjern herefter beskyttelseshætten. Før ledningen til strømforsyningen gennem hullet, udtag ledningen i længde af 7-8mm til tilslutningsklemmen og fastspænd med skruer. Fastgør ledningen ved hjælp af klemme. Sæt atter beskyttelseshætten.

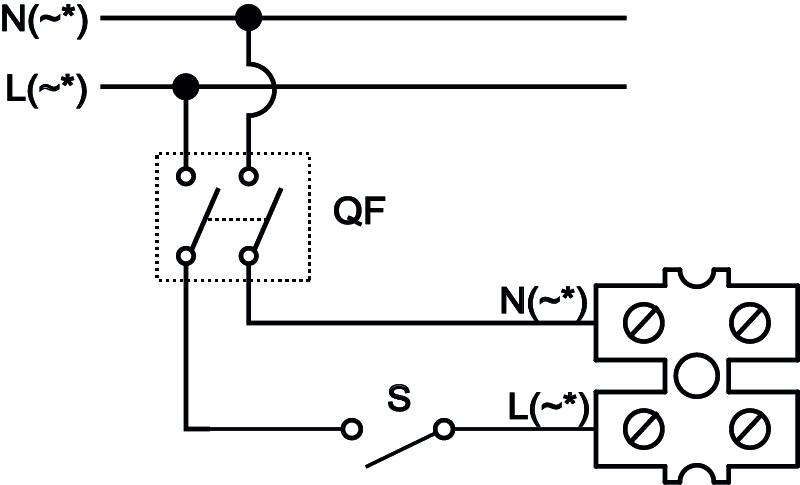

El Diagram
Maintenance

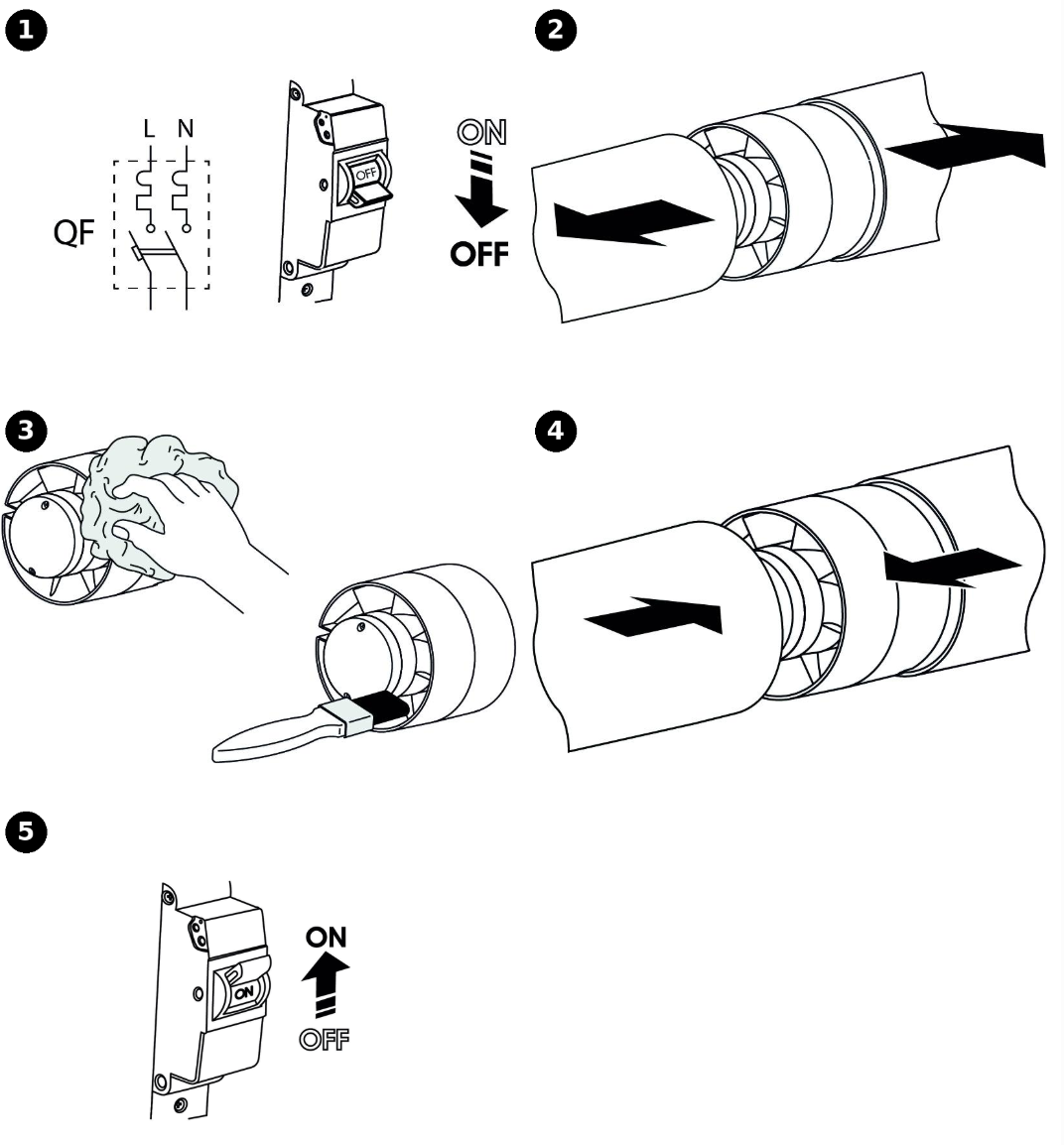

Disconnect the power before commencing cleaning. The fan should be cleaned at least twice a year under normal use, or more often if necessary. The fan is cleaned with a damp cloth and washing-up liquid, after which it is wiped with a dry cloth.
Brug aldrig opløsningsmiddel!
Guarantee
DUKA Ventilation provides a 36-month warranty on the fan from the date the fan is sold through retail, provided that the requirements for installation and maintenance are complied with and it is installed by an authorised electrical contractor.
If the date of sale of the fan can be called into question, the warranty is valid from the date of manufacture.
Should any operational faults occur within the warranty period due to manufacturing defects, the fan will be repaired or replaced by DUKA Ventilation.
