Therm bending 45 degrees O.K. 100 x 150 mm
Thermbøjning 45 grader over kort side
Thermal bending 45 degrees
Therm bend with 20 mm grey Neopor® insulation shell.
Neopor® has a high insulation value, approximately 15% better than the previous therm bends with white Flamingo® shell.
The inner bend is made of high impact polystyrene (HIPS). It has a socket end and a spigot end. If you need a 90° bend, it is very easy to make it by connecting 2 45° bends together.
Used in conjunction with Duka therm pipes. Always remember to seal joints with glue or tape.

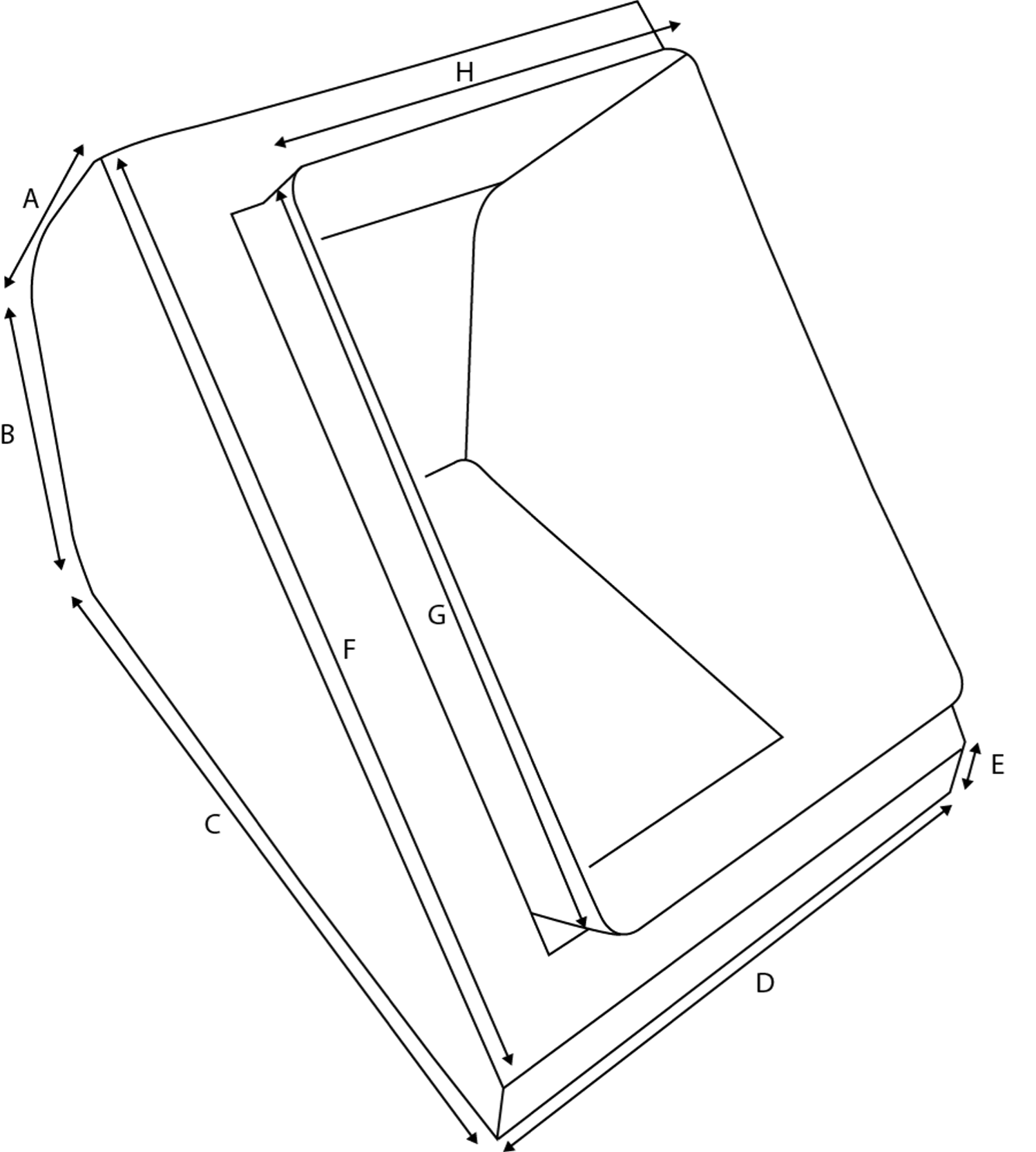

Mål bøjning 10×15 over kort
A | B | C | D | E | F | G | H |
80 mm | 100 mm | 188 mm | 140 mm | 20 mm | 193 mm | 150 mm | 100 mm |
