Valve grille type 110.41 - Ø110 mm
Ventilrist type 110 – Ø110 mm der nemt monteres med bøjlerne i ventilationskanalen.
Ventilation grille with insect screen easily mounted with the brackets in the ventilation duct.
The mesh construction prevents clogging of the channel with leaves.
Effective protection against pests.
Cast in aluminium.
Type | Item number | DB number | VVS number |
110.41 - Ø110 mm | 809933 | 1741131 | 353822110 |

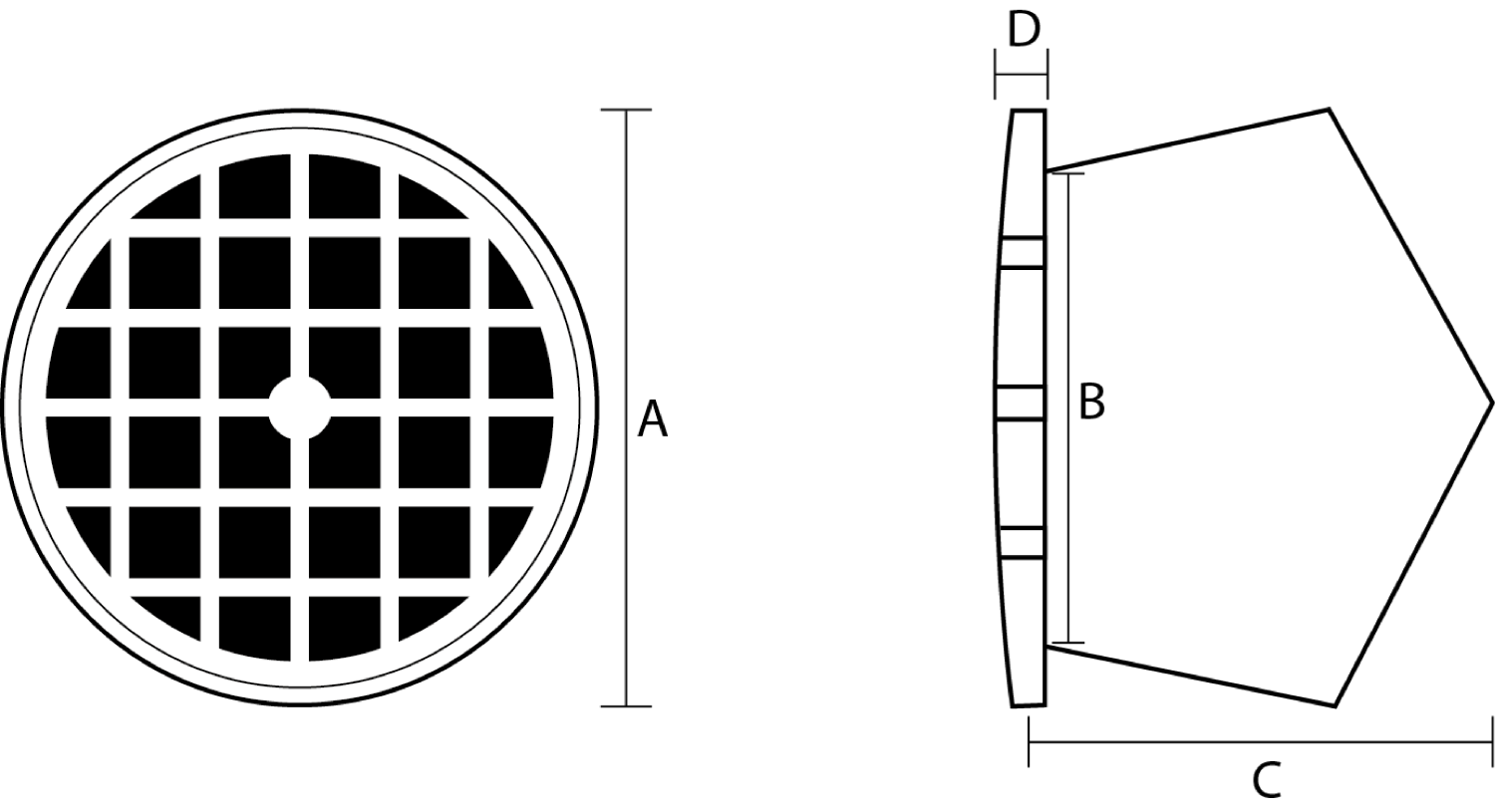

Type | Dimension | Air flow-through | A | B | C | D |
110.41 | Ø110 mm | 24 cm2 | 110 mm | 95 mm | 90 mm | 9 mm |
