Plinth grating type 130.2 - 65 x 230 mm
Plinth grating type 130 65 x 230 mm for masonry or plinth installation.
Grating for masonry or plinth installation.
The design prevents clogging with leaves.
Effective protection against pests.
Cast in aluminium.
Type | Item number | DB number | VVS number |
130.2 - 65x230 mm | 111306 | 1141381 | 353814023 |

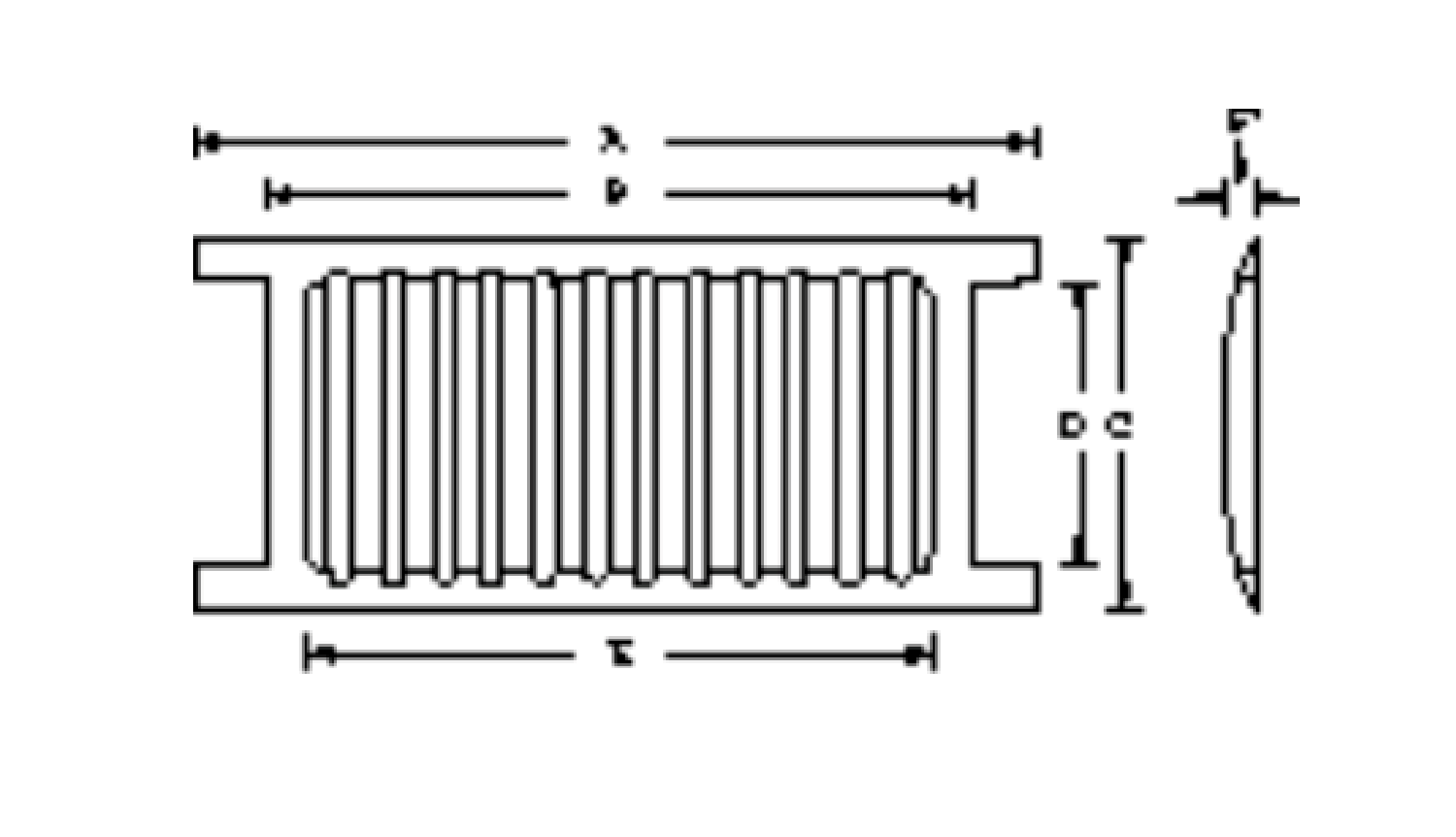

Type | Dimension | Air flow-through | A | B | C | D | E | F |
130.2 | 65x230 mm | 64 cm2 | 275 mm | 237 mm | 74 mm | 51 mm | 215 mm | 10 mm |
