Brick grate type 180.2 - 56 x 230 mm
Murstensrist type 180.2 med galvaniseret strækmetalnet til indmuring i facaden.
Brick grating with galvanised expanded metal mesh for walling into the facade.
The mesh construction prevents clogging of the duct with leaves and is an effective protection against pests.
Made of galvanised sheet and galvanised expanded metal mesh.
Type | Item number | DB number | VVS number |
Type 180.2 - 56 x 230 mm | 111343 | 1141654 | 353817023 |

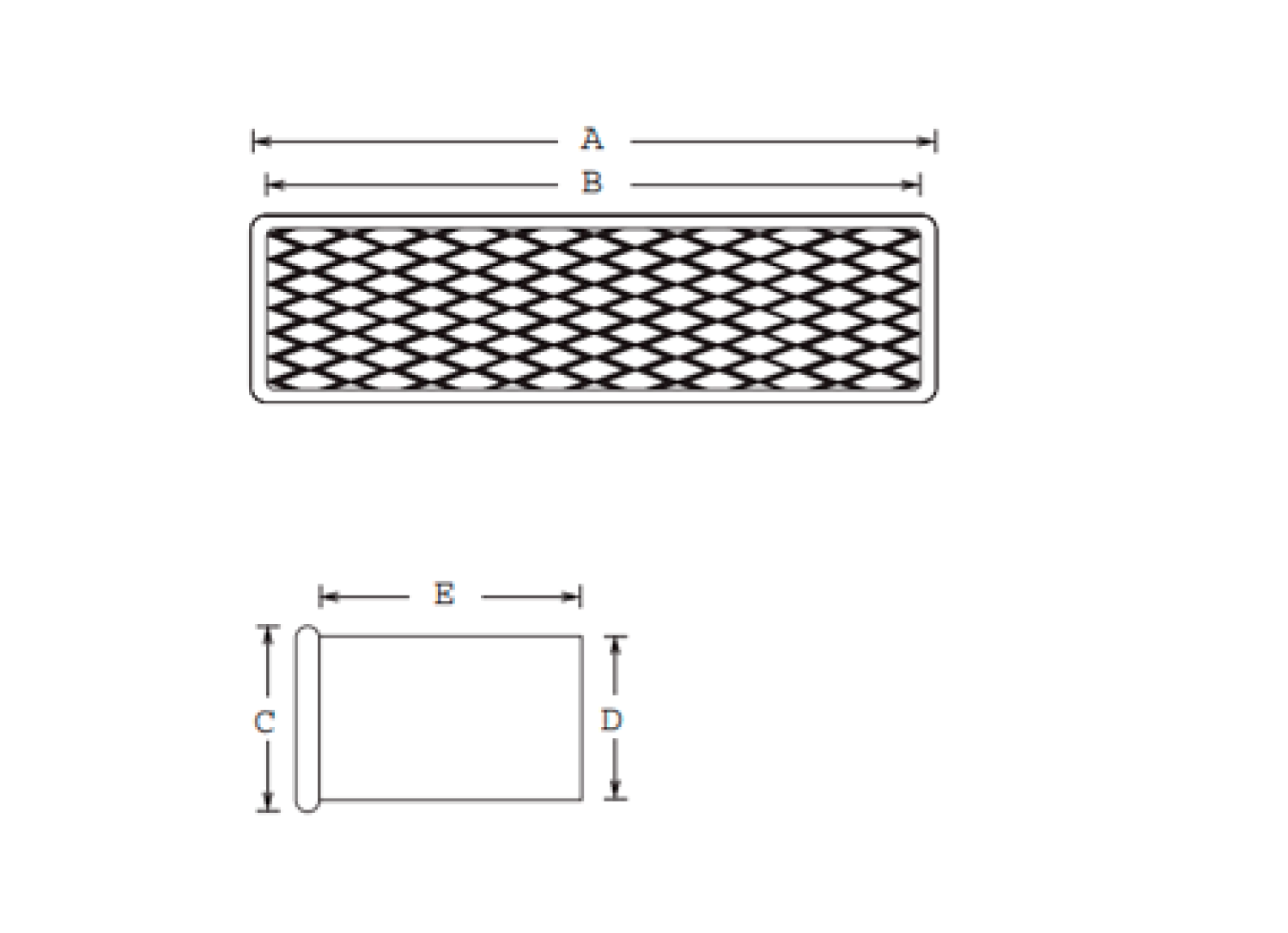

Type | Dimension | Air flow | A | B | C | D | E |
180.2 | 56 x 230 mm | 72 cm2 | 238 mm | 225 mm | 65 mm | 55 mm | 92 mm |
