Louvre type 152.4 aluminium - 210 x 210 mm
Aluminium louvre type 152 (210 x 210 mm), mounted directly on the wall, plinth or gable and can be used for all types of ventilation applications.
Venetian blind with insect screen mounted directly on the wall, plinth or gable. Fasten with 1 screw in each corner or with sealant.
Can be used for all types of ventilation applications.
The insect net prevents the entry of insects.
If the grille is used in a tumble dryer vent, we recommend removing the insect screen to prevent fluff from the tumble dryer from clogging the grille.
Made of hot-dip galvanised sheet metal.
Type | Item number | DB number | VVS number |
152.6 - 210x210 mm | 803274 | 1141571 | 353796021 |

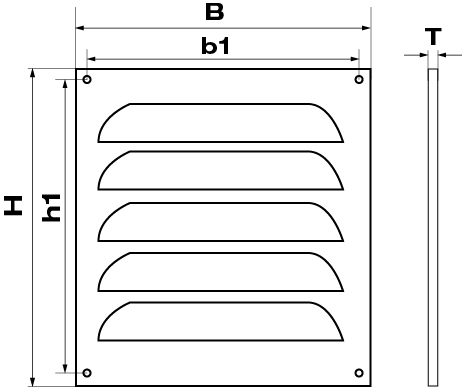

Type | Dimension | Air flow | Hole spacing (h1-b1 mm) | Thickness (T mm) |
152.4 | 210x210 mm | 130 cm2 | 195x195 mm | 12 mm |
