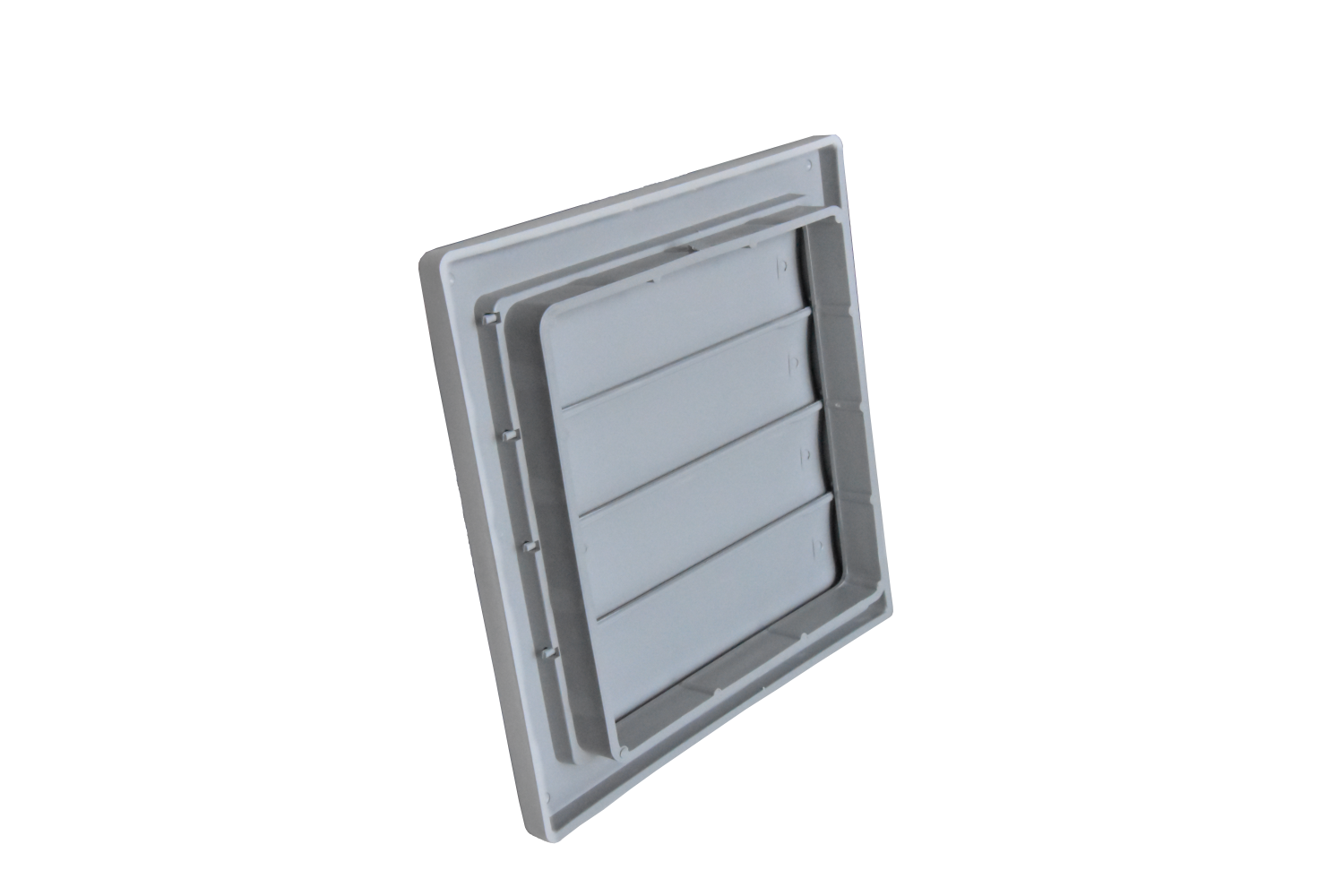

Lamella valve type 75 - white
Used for fans, cooker hoods and tumble dryers.
The Type 75 louvre valve can be used for exhaust air from e.g. fans, hoods and dryers, where the loose louvres open up the internal airflow while minimising wind disturbance from outside.
Type 75 louvre valve is with a frame that fits wall duct type 202.
Available in colours: white, red and grey, so they can blend in naturally with many types of houses.
Type | Item number | DB number | VVS number |
75 | 109784 | 2966331 | 353797215 |

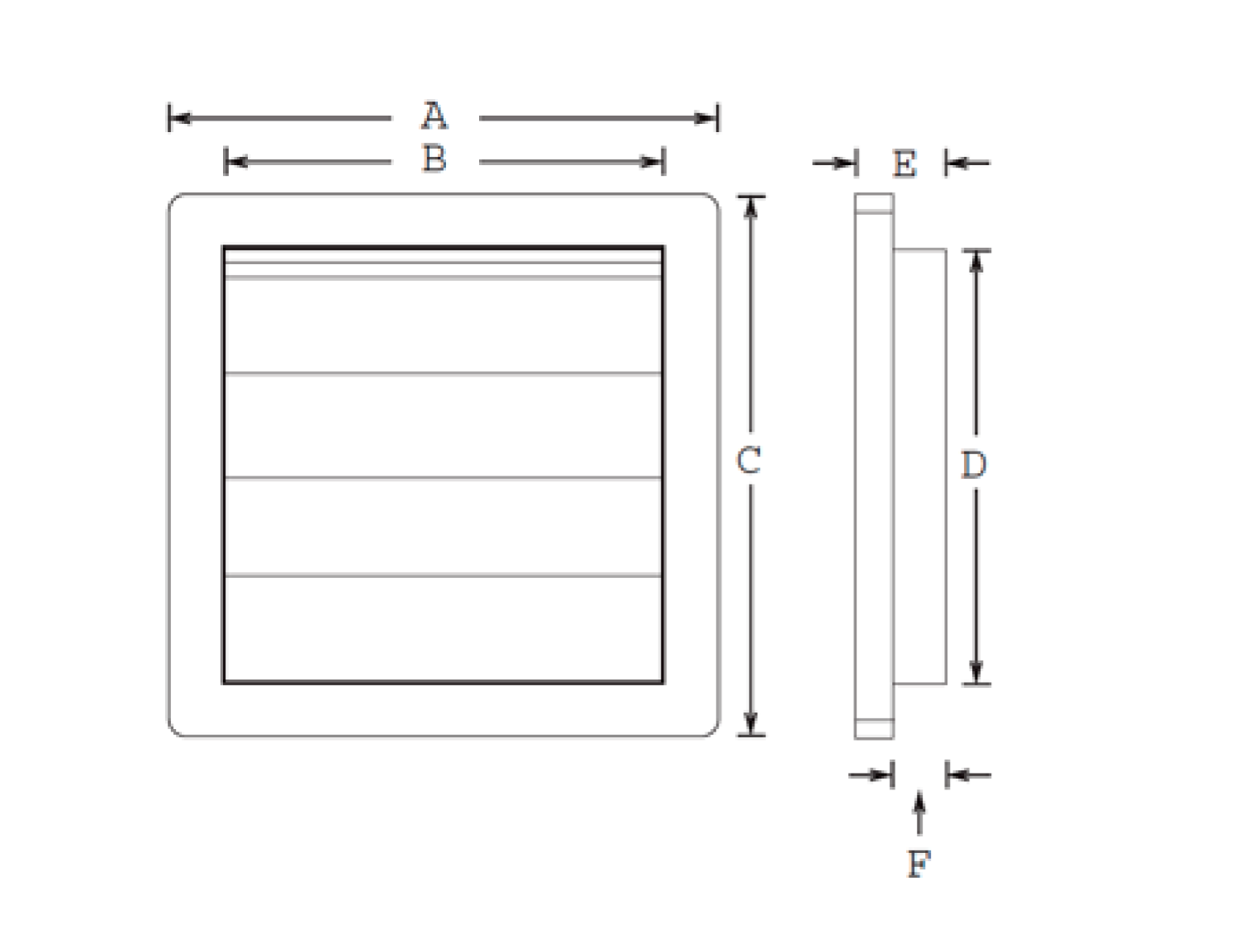

Type | Air review | Goal | A | B | C | D | E | F |
75 | 0-175 cm2 | 180 x 180 mm | 180 mm | 140 mm | 180 mm | 140 mm | 24 mm | 14 mm |
