Blind moulding type MVM 150 x 150 mm white
MVM 150 x 150 mm louvre in white, mounted directly on the wall, plinth or gable and can be used for all types of ventilation applications.
Venetian blind with insect screen mounted directly on the wall, plinth or gable. Fasten with 1 screw in each corner or with sealant.
Can be used for all types of ventilation applications.
The insect net prevents the entry of insects.
If the grille is used in a tumble dryer vent, we recommend removing the insect screen so that lint from the tumble dryer does not clog the grille.
Made of aluminium plate.
Colour: White
Type | Item number | DB number |
MVM150 - 150 x 150 mm | 127142 | 5009242 |

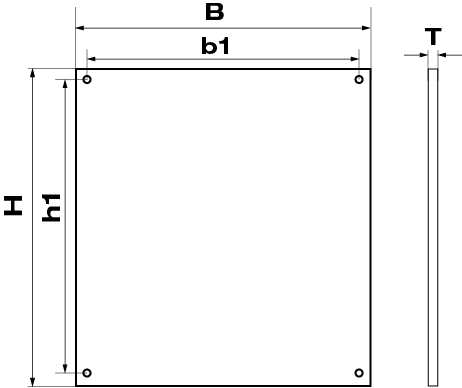

Type | Dimension | Air flow | Hole spacing (h1-b1 mm) | Thickness (T mm) |
MVM 150 | 150 x 150 mm | 58 cm2 | 136 x 136 mm | 10 mm |
