Louvre type 63.1 - 100 x 150 mm - white
Can be used for air intake/exhaust for natural ventilation, e.g. when used with a flap valve.
Can be used for air intake/exhaust for natural ventilation, e.g. when used with a flap valve.
The louvre has small ribs under the slanted louvres to keep out insects and other small animals.
Passer til murgennnemføring type 201.
Type | Item number | DB number | VVS number |
61.3 | 109055 | 2439099 | 353795010 |

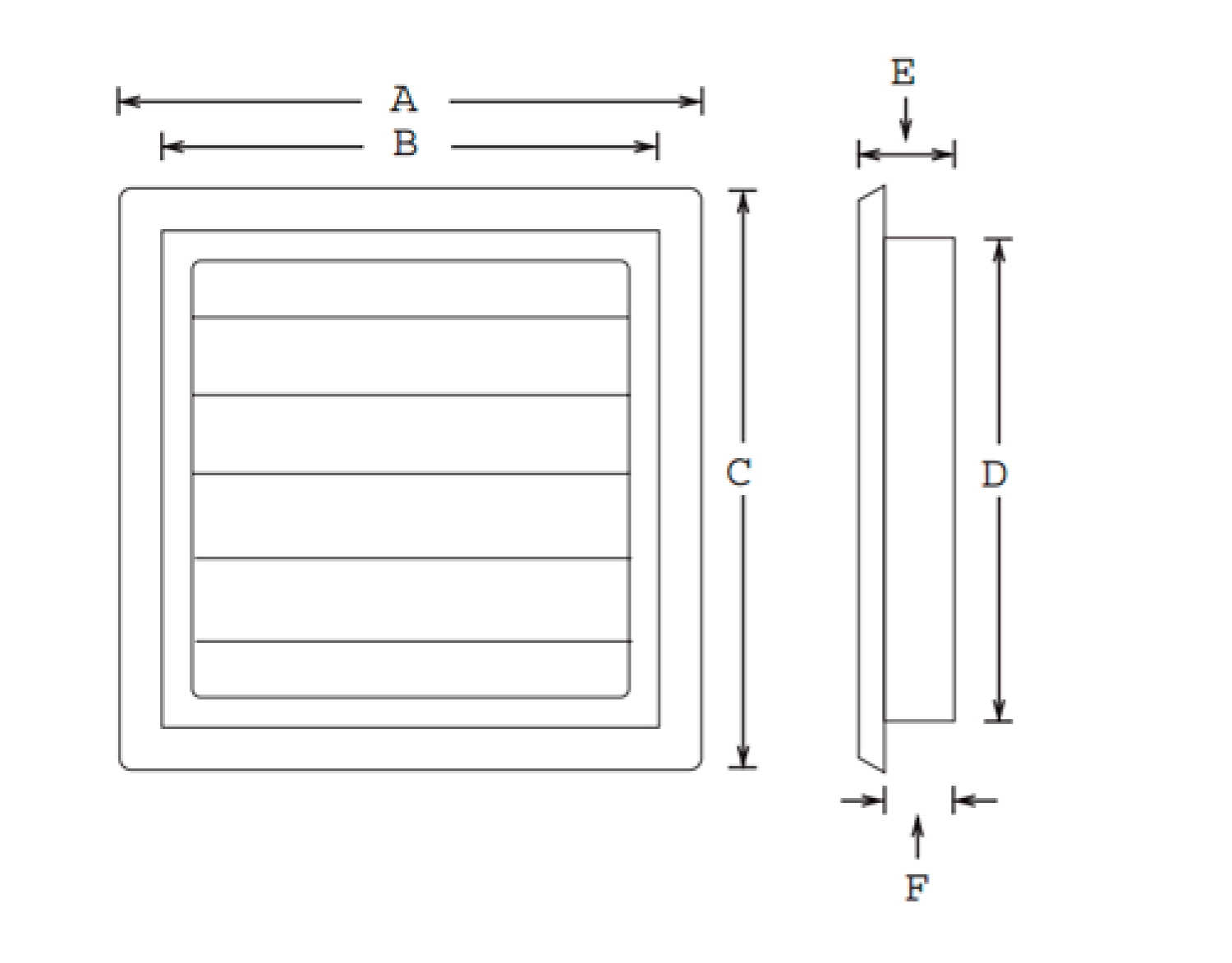

Type | Air review | Goal | A | B | C | D | E | F |
63.1 | 37 cm2 | 100x150 mm | 134 mm | 96 mm | 177 mm | 140 mm | 27 mm | 22 mm |
