Disc valve type 68.4 - Ø97 mm
The disc valve can bring fresh outdoor air into your home.
The disc valve can bring fresh outdoor air into your home. It is adjustable so the airflow can be customised to your needs and is closed when no fresh air is needed. DUKA Ventilation disc valve type 68 is available with both round and square rear flange and in different sizes.
Ventil med firkantet karm og rund flange bagpå. Reguleres ved at dreje på skruelåget.
Colour: White
Type | Item number | DB number | VVS number |
68.4 | 109736 | 3497492 | 353808040 |

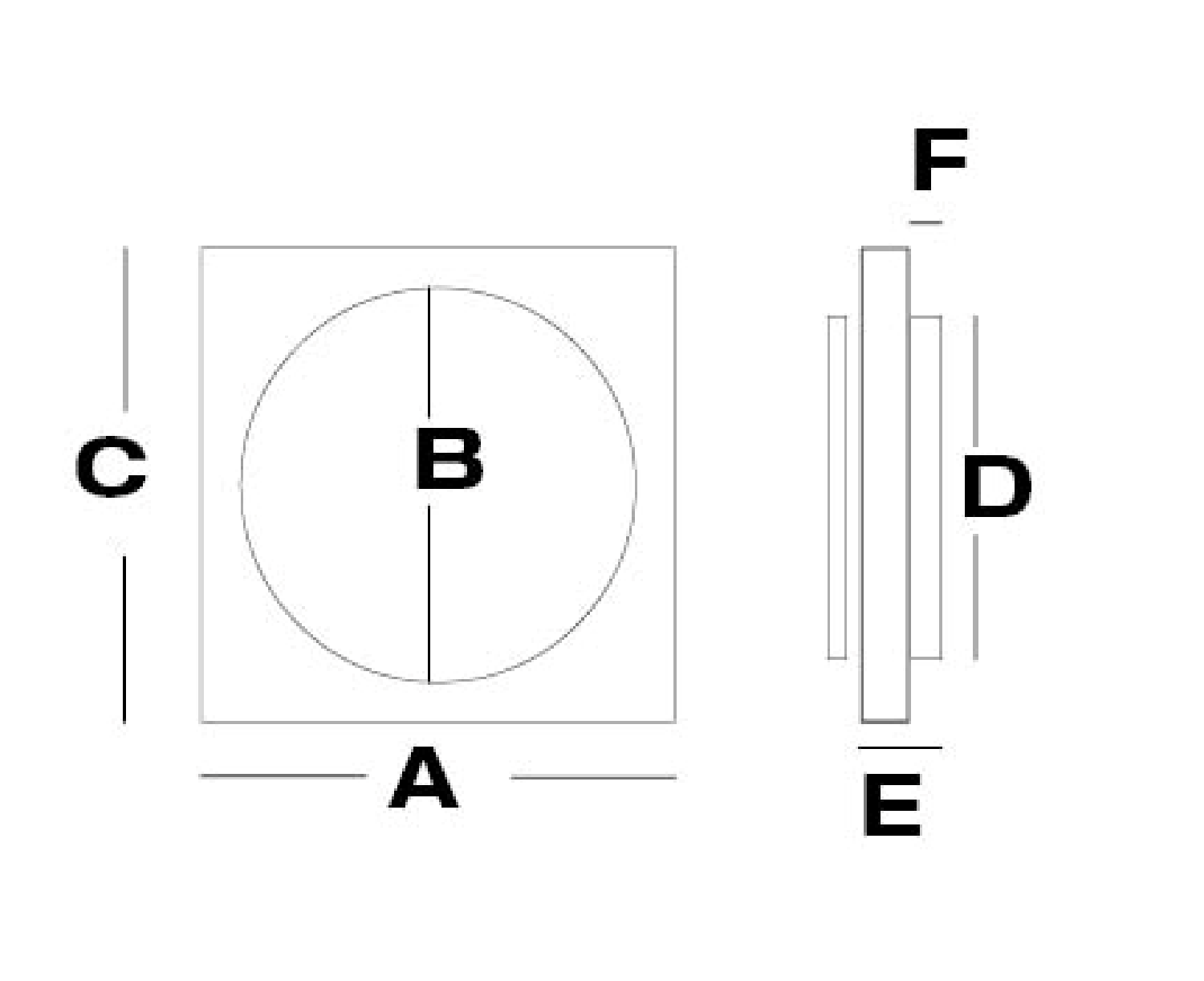

Type | Air review | Goal | A | B | C | D | E | F |
68.4 | 52 cm2 | Ø97 mm | 117 mm | 102 mm | 117 mm | 97 mm | 14 mm | 12 mm |
